3-14 2007 Buell P3: Engine
HOME
33. Remove chassis from engine by performing the steps
below.
a. Lower chassis.
b. Disconnect hoist from chassis.
c. Lower lift.
d. See Figure 3-15. Lift chassis and roll away from
engine.
34. See Figure 3-16. Remove air cleaner box bracket.
35. See Figure 3-17. Remove rear engine mount.
36. See Figure 3-18. Loosen swingarm pinch bolt.

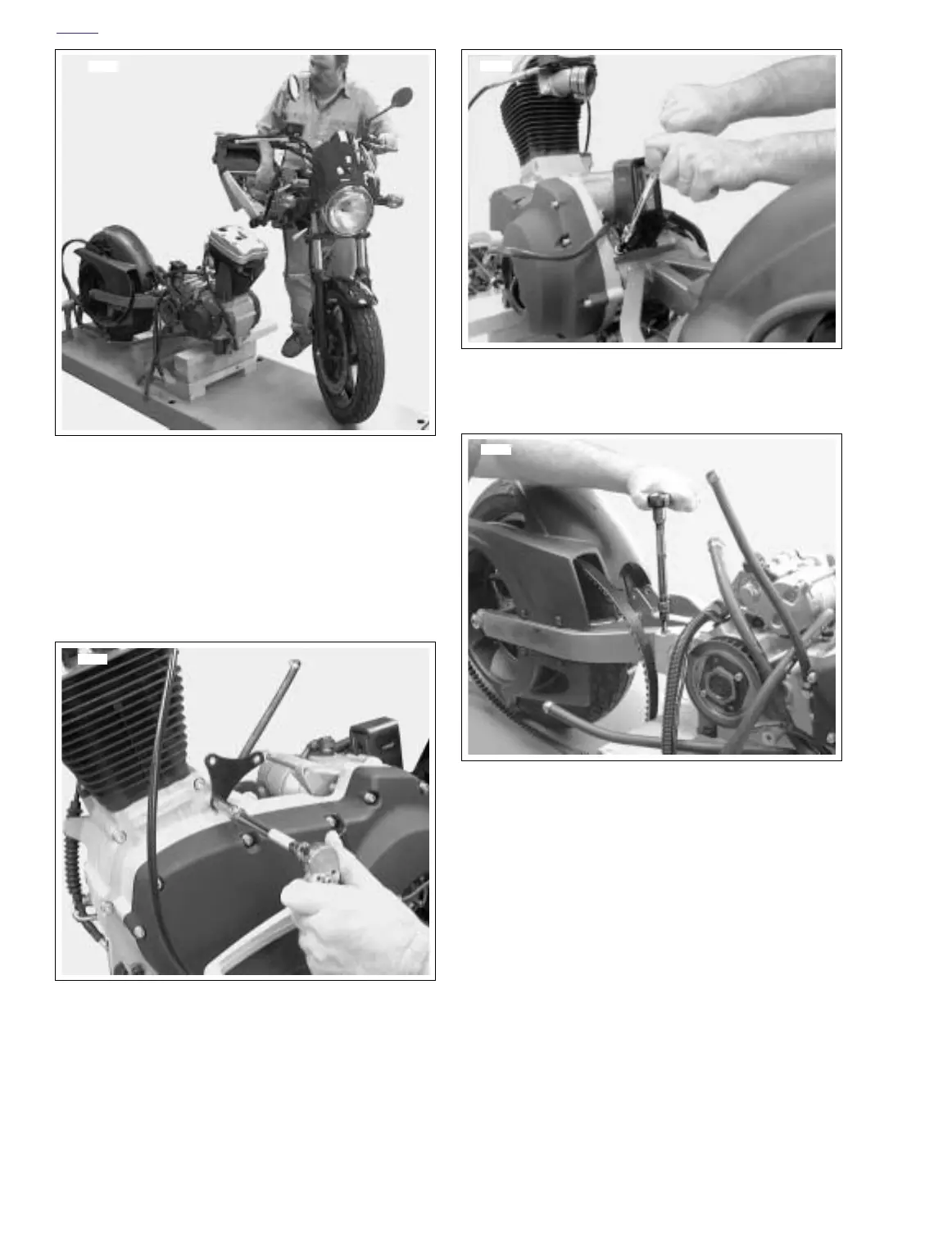

Figure 3-15. Move Chassis From Engine
Figure 3-16. Air Cleaner Bracket
7651
7652
Figure 3-17. Rear Engine Mount
Figure 3-18. Swingarm Pivot Shaft Pinch Bolt
7653
7654
