28. See Figure 3-11. Place a floor hoist behind the lift. Attach
straps to frame and hoist. Raise hoist until straps tighten.
29. Remove rear shock. See 2.15 REAR SHOCK
ABSORBER.
30. See Figure 3-12. Loosen nut on hose routing clamp.
31. See Figure 3-13. Disconnect feed, return, transmission
and crankcase vent lines.
32. See Figure 3-14. Remove rear motor mount bolts.

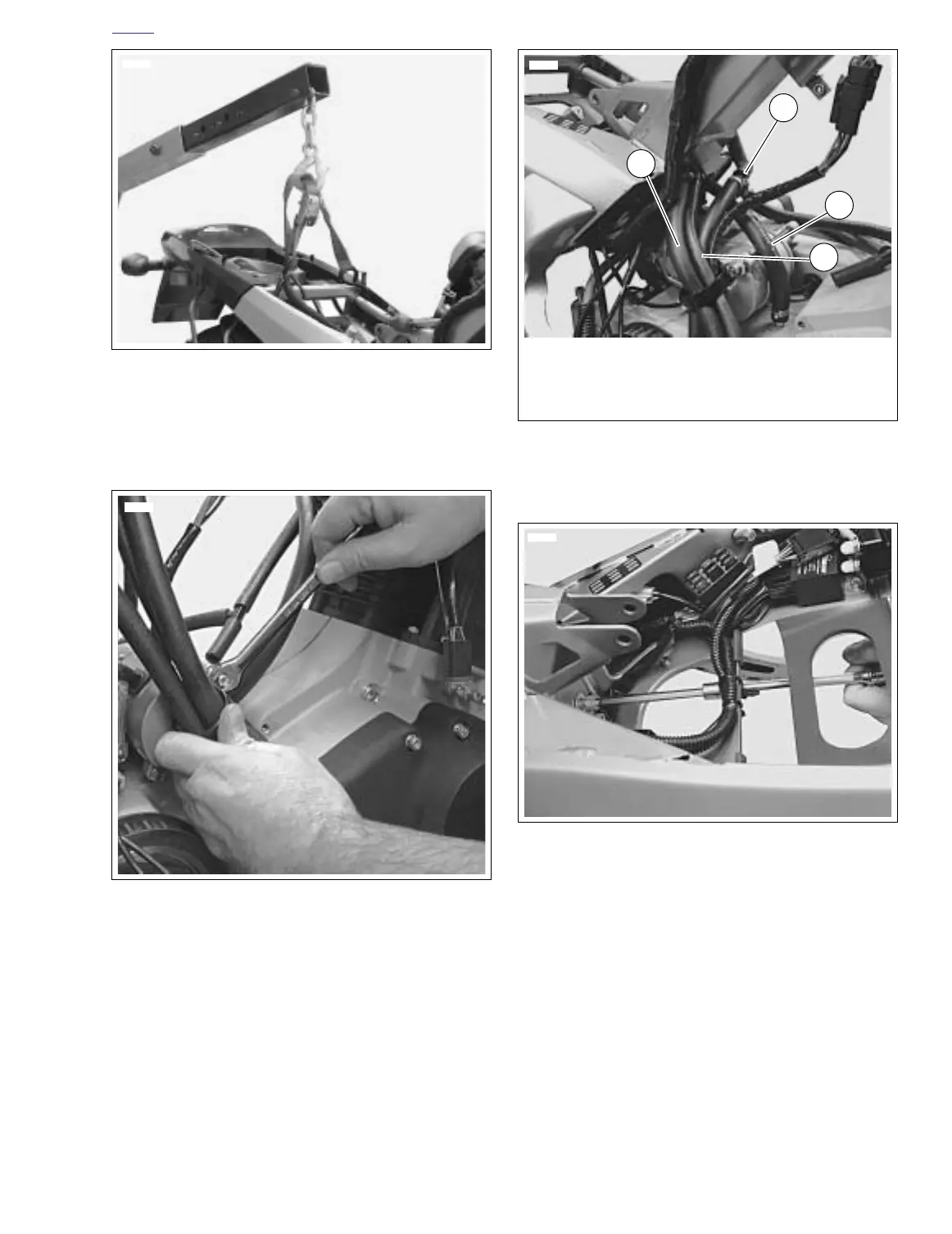

Figure 3-11. Hoisting Bike
Figure 3-12. Loosen Clamp
7650
7718
Figure 3-13. Disconnect Lines
Figure 3-14. Removing Rear Motor Mount Bolts
7634
1. Oil return
2. Transmission vent
3. Crankcase vent
4. Oil feed
4
2
1
3
7623
