11WARNING1WARNING
When using a press, be sure setup is stable and wear
proper eye protection. Flying parts could result in death
or serious injury. (00467b)
9. See Figure 3-111. Mount the left crankcase half and fly-
wheel assembly on a press table, supporting crankcase
on parallel bars. Press on end of sprocket shaft with
arbor press until flywheel assembly is free from crank-
case half. Do not drive flywheel assembly from crank-
case half as flywheels may be knocked out of alignment.
NOTE
See Figure 3-112. If it is necessary to remove either the pin-
ion shaft bearing or sprocket shaft bearing, proceed as fol-
lows:
10. Gearshaft bearing will remain on flywheel pinion shaft.
Remove retaining ring, and bearing may be slipped off
pinion shaft.

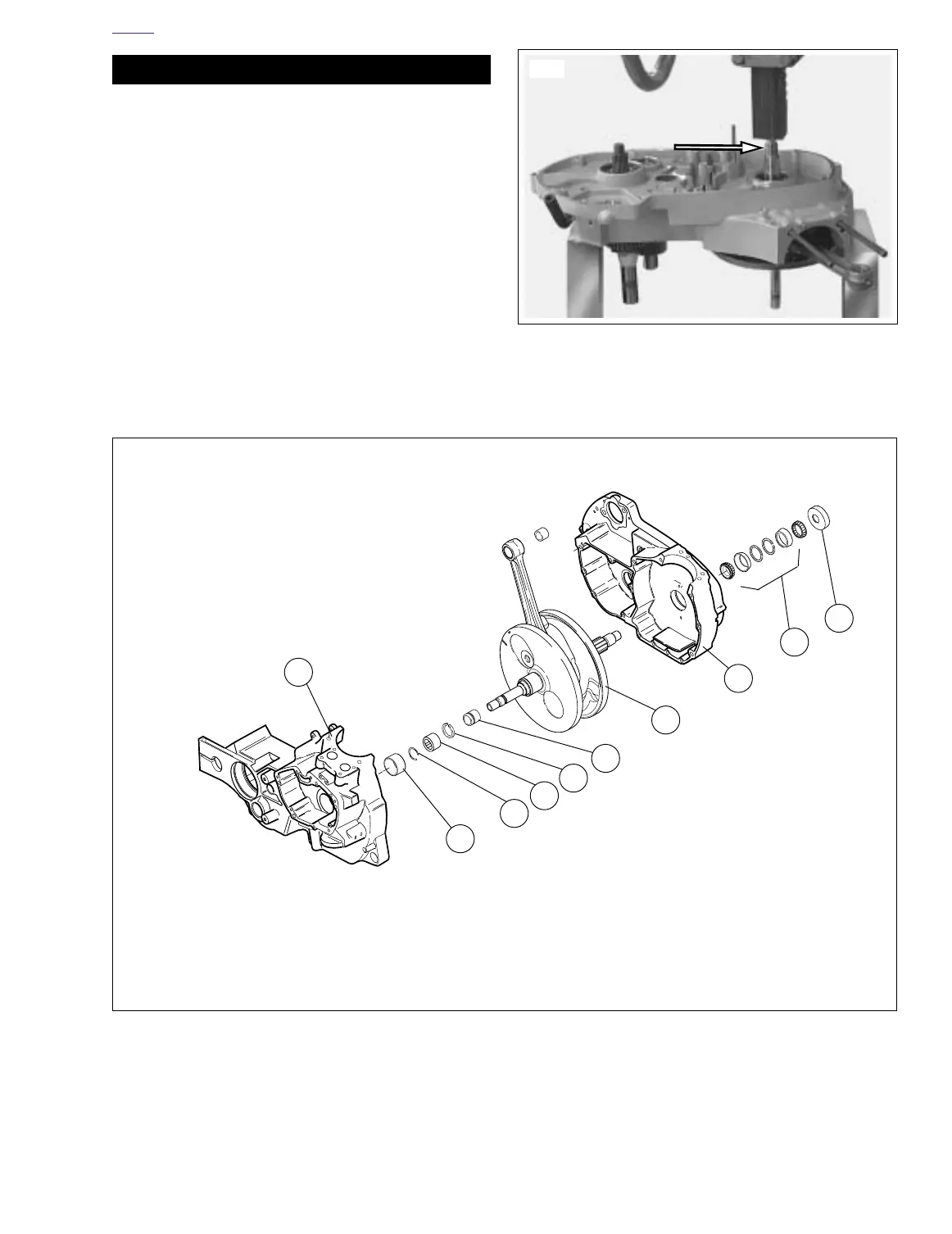

Figure 3-111. Pressing On End Of Sprocket Shaft To
Remove Flywheel Assembly From Crankcase
Figure 3-112. Crankcase and Flywheel Assembly
a0084x3x
1
2
3
4
5
6
7
8
9
10
1. Oil seal
2. Bearing assembly
3. Left crankcase half
4. Connecting rod and flywheel assembly
5. Inner race
6. Retaining ring
7. Gear shaft bearing
8. Retaining ring
9. Outer bearing race
10. Right crankshaft half
