3-70 2007 Buell P3: Engine
HOME
11. See Figure 3-113. Place flywheel assembly in FLY-
WHEEL SUPPORT FIXTURE (Part No. HD-44385). Pull
sprocket shaft bearing with SPROCKET SHAFT INNER
TIMKIN BEARING REMOVER (Part No. HD-44404) and
BEARING RACE REMOVER/INSTALLER (Part No. HD-
34902B).
12. See Figure 3-114. Use CRANKSHAFT BEARING TOOL
(Part No. HD-94547-101) to remove sprocket shaft outer
races.
13. See Figure 3-115. To remove pinion shaft inner race, use
WEDGE ATTACHMENT for CLAW PULLER (Part No.
HD-95637-46A) with BEARING RACE REMOVER/
INSTALLER (Part No. HD-34902B) and END CAP (Part
No. HD-34902-7). Apply heat to race to aid removal. Four
sizes of pinion bearings are available. Pinion bearing
selection at the factory, during engine rebuild, or replace-
ment of crankcase set or flywheel assembly is based on
the largest measured outside diameter (OD) of the inner
race and the smallest measured inside diameter (ID) of
the outer race (crankcase bushing). A running clearance
of 0.0002-0.0008 in. (0.0051-0.0203 mm) is established
during crankcase set or flywheel assembly replacement
and engine rebuild.
14. See Figure 3-116. Installed inner races are identified at
the factory as shown.
15. See Table 3-32. Outer races are identified at the factory
as shown.
NOTE
The different sizes of crankcase sets and flywheel assemblies
will not have separate part numbers. That is, a replacement
crankcase set may have a class 1, 2 or 3 pinion outer race.
Replacement flywheel assemblies will have either a class A
or B inner race.
16. See Figure 3-118. Pinion bearings are identified as
shown.

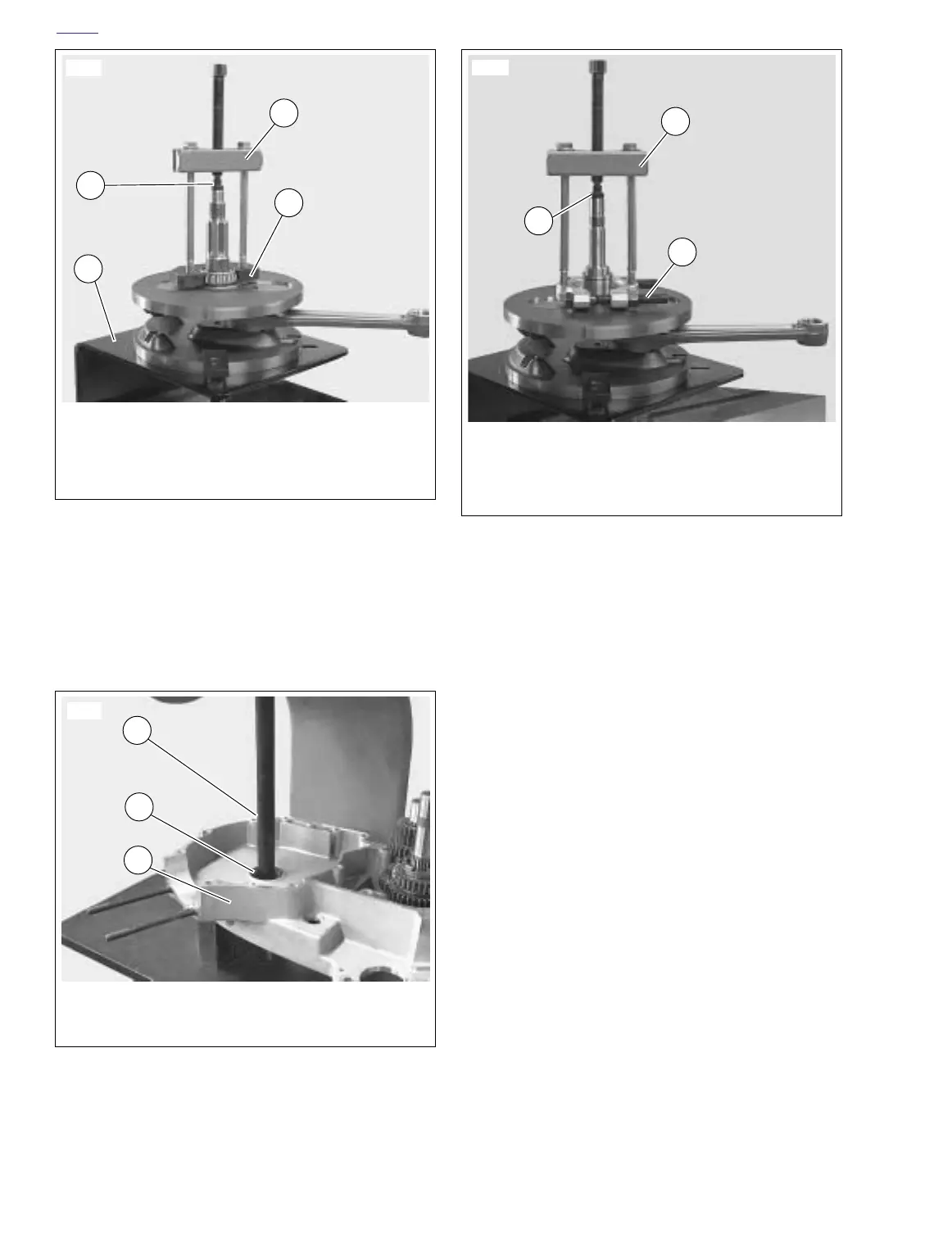

Figure 3-113. Removing Sprocket Shaft Roller Bearing
Figure 3-114. Sprocket Outer Shaft Race Removal
7671
1. Bearing race remover/installer
(Part no. HD-34902B)
2. End cap (Part No. HD-34902-7)
3. Bearing remover (Part No. HD-44404)
4. Flywheel fixture (Part No. HD-44385)
3
4
1
2
1. Universal driver (Part No. HD-33416)
2. Crankshaft bearing tool (Part No. HD-94547-101)
3. Left crankcase half
1
2
3
7709
Figure 3-115. Pulling Pinion Shaft Inner Race
1. Bearing race remover/installer
(Part no. HD-34902B)
2. End cap (Part No. HD-34902-7)
3. Wedge attachment for claw puller
(Part No. HD-95637-46A)
1
7671
3
2
