2007 Buell P3: Engine 3-75
HOME
Lapping Engine Main Bearing Races
1. Secure right and left crankcase halves with three crank-
case stud bolts (top center and bottom left and right).
The sprocket shaft bearing outer races and large spacer
must be installed in left crankcase.
2. See Figure 3-121. Obtain CRANKCASE MAIN BEAR-
ING LAPPING TOOL (Part No. HD-96710-40B). Assem-
ble CRANKCASE MAIN BEARING LAP (Part No. HD-
96718-87) to lapping handle. Assemble guide sleeve to
sprocket shaft bearing bushing. Sleeves, for use with
tapered bearing, are assembled to case with bearings
and small spacer collar. Finger-tighten the sleeve parts.
3. Insert lap shaft with arbor assembled through pinion
bearing bushing and into guide sleeve. Tighten arbor
expansion collars using a length of 0.156 in. (3.962 mm)
rod as spanner until arbor begins to drag. Do not adjust
arbor snug in bushing or bushing will “bell,” a condition
where hole is larger at ends than it is in the center.
4. Withdraw arbor far enough to coat lightly with 220 grit
lapping compound. Do not apply a heavy coat. Reposi-
tion lap in bushing and turn handle at moderate hand
speed. Work lap back and forth in bushing, as it is
revolved, to avoid grooving and tapering.
At frequent intervals, remove lap from crankcase, wash and
inspect bushing. Lapping is completed when entire bushing
surface has a dull, satin finish rather than a glossy, smooth
appearance. If necessary, flush off lap in cleaning solvent, air
dry and apply fresh, light coat of fine lapping compound.
Checking Connecting Rod Side Play
1. See Figure 3-122. Check connecting rod side play with a
thickness gauge as shown.
2. If side play measurement is greater than service wear
limit of 0.030 in. (0.762 mm), replace flywheel/connecting
rod assembly.

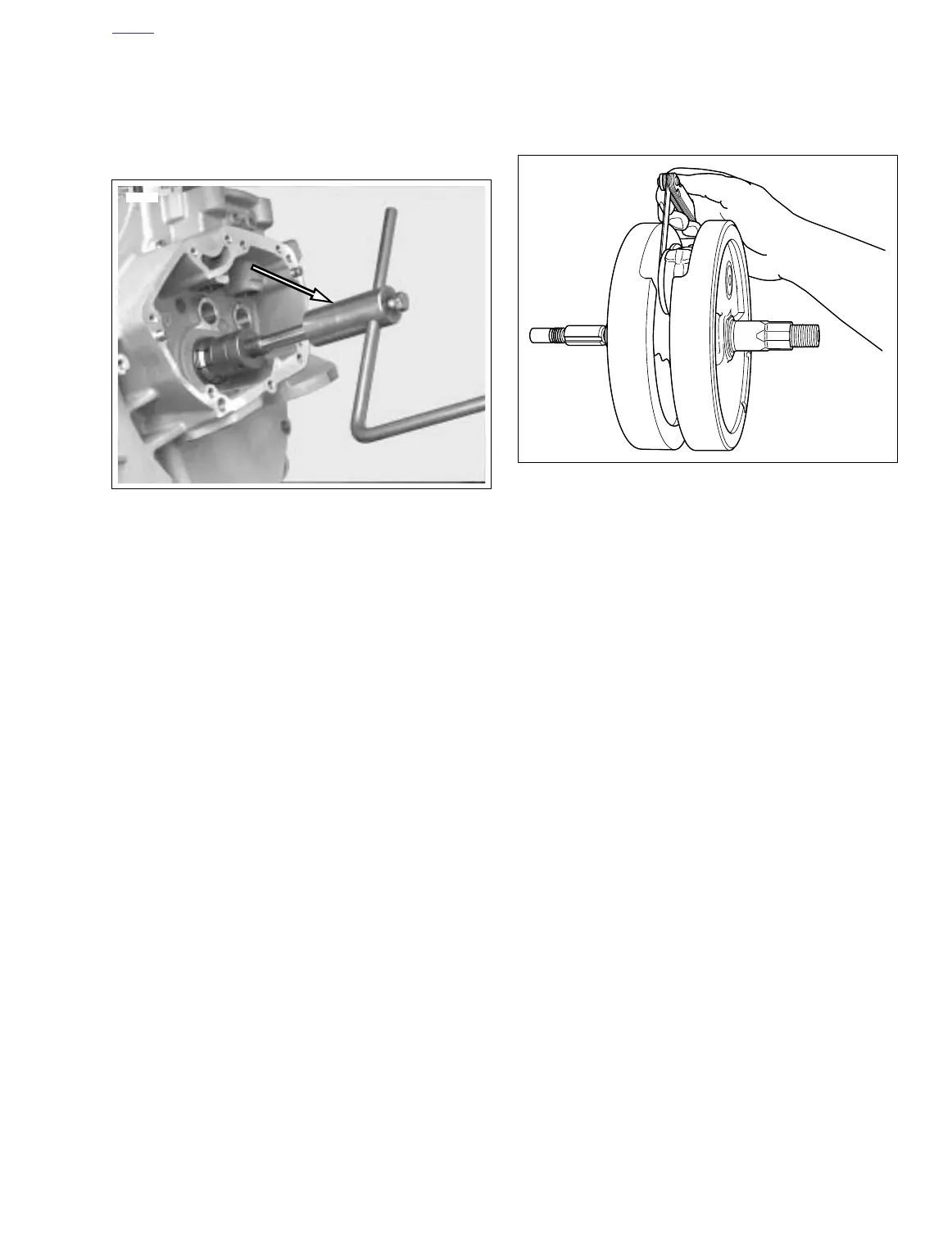

Figure 3-121. Lapping Pinion Shaft Main Bearing Using
Crankcase Main Bearing Lapping Tool
(Part No. HD-96710-40B)
7718
Figure 3-122. Checking Connecting Rod Side Play
