3-76 2007 Buell P3: Engine
HOME
PISTON JET
Removal
1. See Figure 3-123. Remove two TORX screws from pis-
ton jet assembly to remove piston jet from right crank-
case.
2. Remove piston jet gasket from right crankcase.
Installation
IMPORTANT NOTE
If a gasket is missing, distorted, pinched or otherwise
damaged will result in either oil leakage or low oil pres-
sure.
NOTE
Gasket is part of the piston jet assembly. Gasket not sold sep-
arately.
1. Install new piston oil jet assembly in right crankcase.
2. Apply Loctite 222 (purple) to threads of TORX screws.
3. With the jet pointed upward, install TORX screws to
secure piston jet to crankcase. Tighten screws to 25-35
in-lbs (2.8-4.0 Nm).

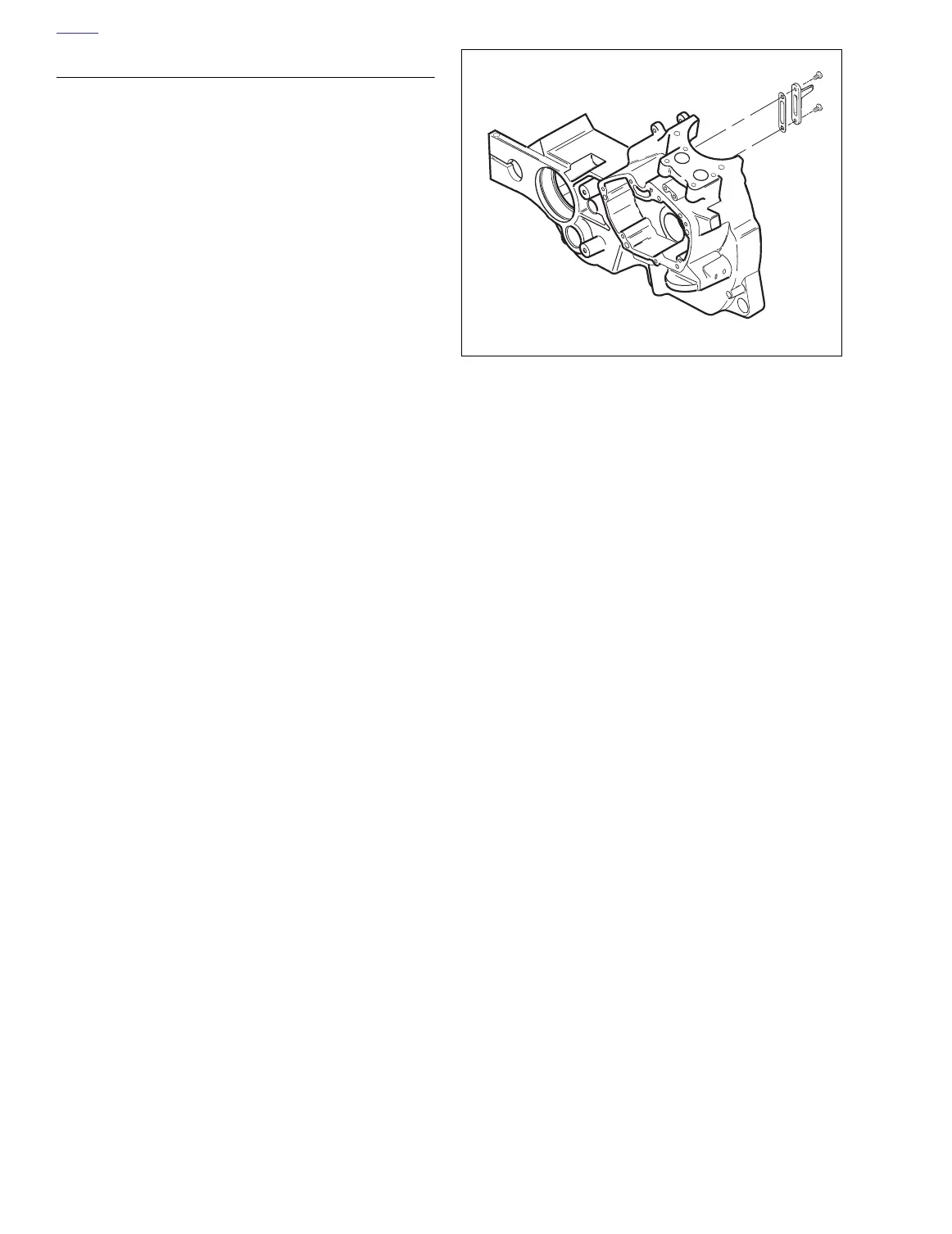

Figure 3-123. Piston Oil Jet Assembly
a0486x3x
