B-10 Appendix B: Wiring
HOME
Remove Pin Terminals
1. Use the hooked end of a stiff piece of mechanics wire, a
needle nose pliers or a suitable pick tool (HD-41475-100)
to remove the secondary locking wedge.
2. Gently depress terminal latches inside pin housing and
back out pins through holes in wire seal.
NOTES
●
If wire leads require new terminals, go to TERMINAL
CRIMPS.
●
If it should become necessary to replace a pin or socket
housing, please note that the 8-place and 12-place gray
and black connectors are not interchangeable. Since
location of the alignment tabs differ between the black
and gray connectors, plugs or receptacles must be
replaced by those of the same color.
●
When replacing both socket and pin housings, then the
black may be substituted for the gray, and vice versa. The
socket and pin housings of all other connectors are inter-
changeable, that is, the black may be mated with the
gray, since the alignment tabs are absent and the orien-
tation of the external latch is the same.

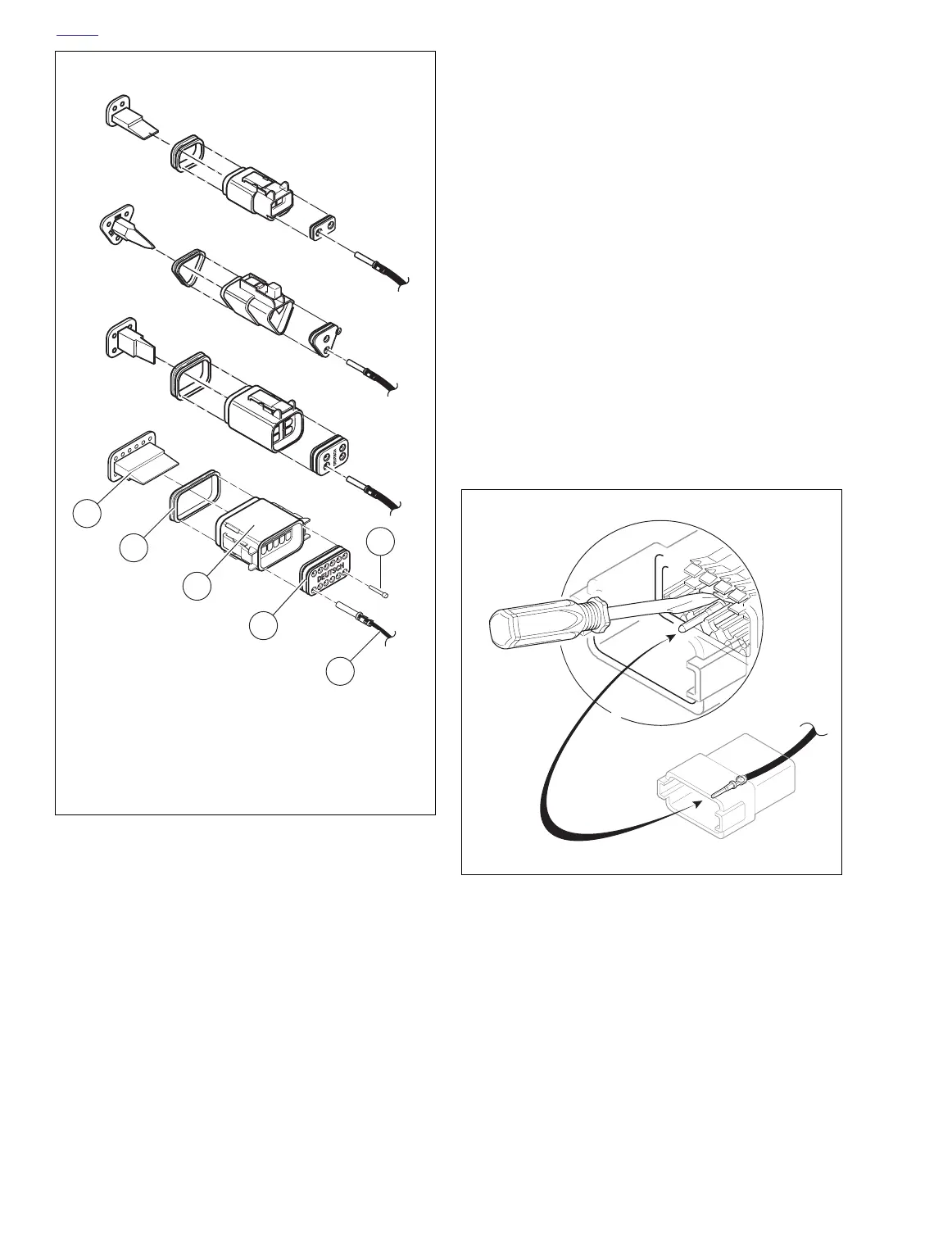

Figure B-11. Two, Three, Four and Six Place Socket Hous-
ings
DEUTSCH
6
1
2
3
4
5
f2500x1x
1. Wire seal
2. Socket housing
3. Wire lead
4. Internal seal
5. Secondary locking wedge
6. Seal plug
Figure B-12. Depress Terminal Latch & Back Out Pin
f2498x1x
