6-28 2007 Buell P3: Drive/Transmission
HOME
NOTE
See Figure 6-36. Insert cotter pins as shown.

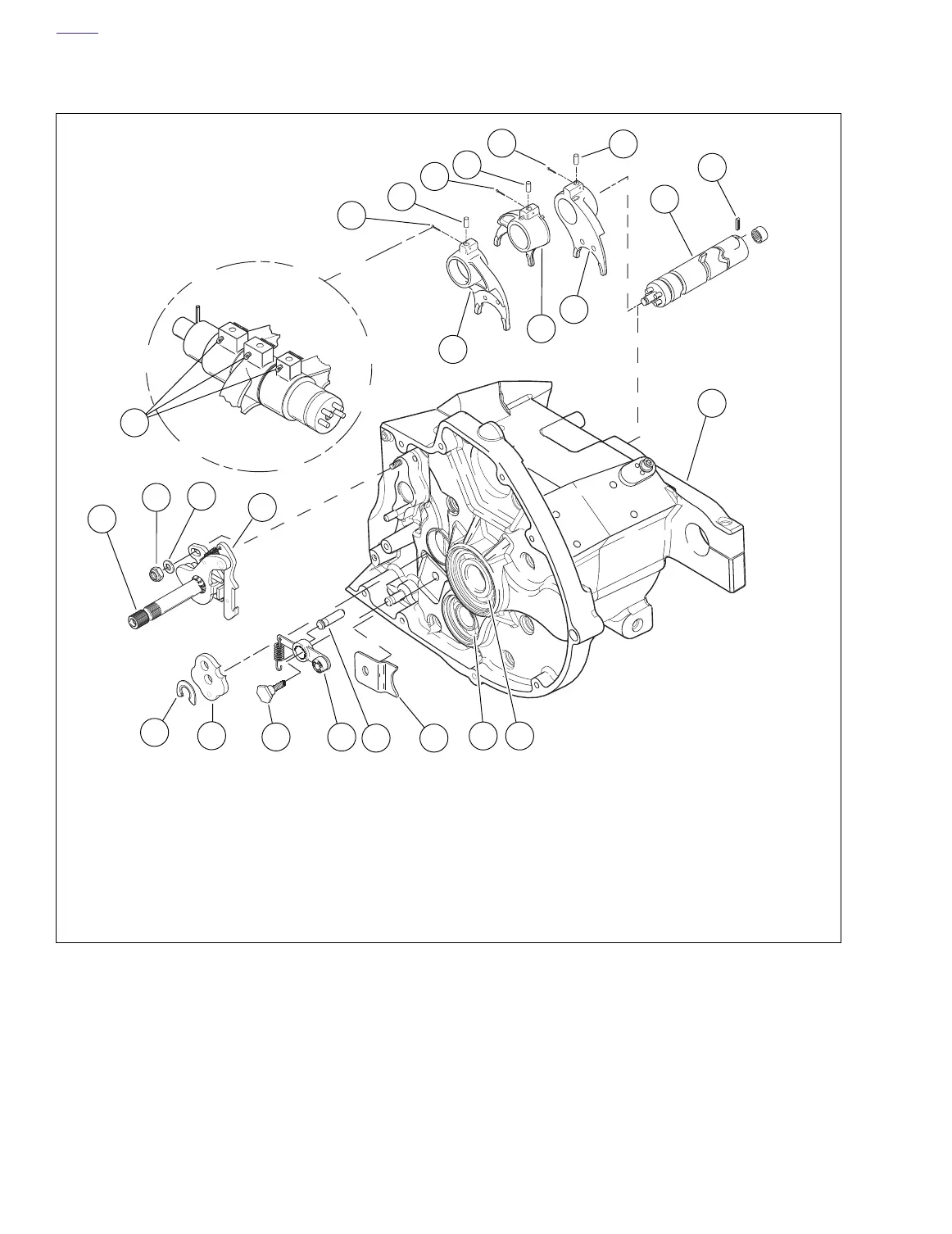

Figure 6-36. Shifter Mechanism
1. Right crankcase half
2. Mainshaft bearing
3. Countershaft bearing
4. Plate
5. Pin
6. Detent arm
7. Detent screw
8. Detent plate
9. Retaining ring
10. Shifter shaft assembly
11. Locknut (2)
12. Washer (2)
13. Shifter pawl
14. Cotter pin (3)
15. Shifter fork pin (3)
16. Shifter fork 4th gear
17. Shifter fork 1st & 2nd gear
18. Shifter fork 3rd & 5th gear
19. Shifter fork drum
20. Neutral indicator pin
4
8
9
a0118x6x
18
15
13
10
11
12
7
6
5
3 2
1
16
17
20
19
14
15
14
15
14
14
