7-72 2007 Buell P3: Electrical
HOME
16. See Figure 7-98. Mate TP sensor/auto-enrichener con-
nector [88] and secure with cable strap.
17. Install connector [83] to coil and secure with cable strap.
18. See Figure 7-92. Mate ignition module connector [10]
and attach to T-stud on left side of frame backbone.
19. Feed longer bundle at front through frame hole to left
side of motorcycle. Attach harness to T-stud.
20. Hook right side of harness to two T-studs on right side of
motorcycle.
21. Mate right handlebar switch connector [22], front brake
lamp switch connector [170]. Secure wires with cable
straps.
22. Mate left handlebar switch connector [24] and clutch
switch connector [95]. Secure wires with cable straps.
23. Connect speedometer connector [39].
24. Mate ignition switch connector [33].
25. Install left and right front turn signal bullet connectors as
marked during removal.
26. See Figure 7-99. Feed horn wires through frame hole on
right side and install connector [122] to horn. Cable strap
wires to isolator mount.
27. Cable strap main wiring harness to frame backbone with
three cable straps.
28. Connect headlamp connector [38] and install headlamp
housing. See 7.17 HEADLAMP.
29. Install windscreen. See 2.26 WINDSCREEN.
30. Install fuel tank. 4.2 FUEL TANK COVER/FUEL TANK.
11WARNING1WARNING
Connect positive (+) battery cable first. If positive (+)
cable should contact ground with negative (-) cable con-
nected, the resulting sparks can cause a battery explo-
sion, which could result in death or serious injury.
(00068a)
31. Install battery and reconnect battery cables, positive
cable first. See 7.16 BATTERY.
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
32. Install seat. See 2.28 SEAT.
11WARNING1WARNING
Be sure that all lights and switches operate properly
before operating motorcycle. Low visibility of rider can
result in death or serious injury. (00316a)
33. Check for proper operation of headlamp, turn signals,
brake lamp and starting, charging and ignition systems.

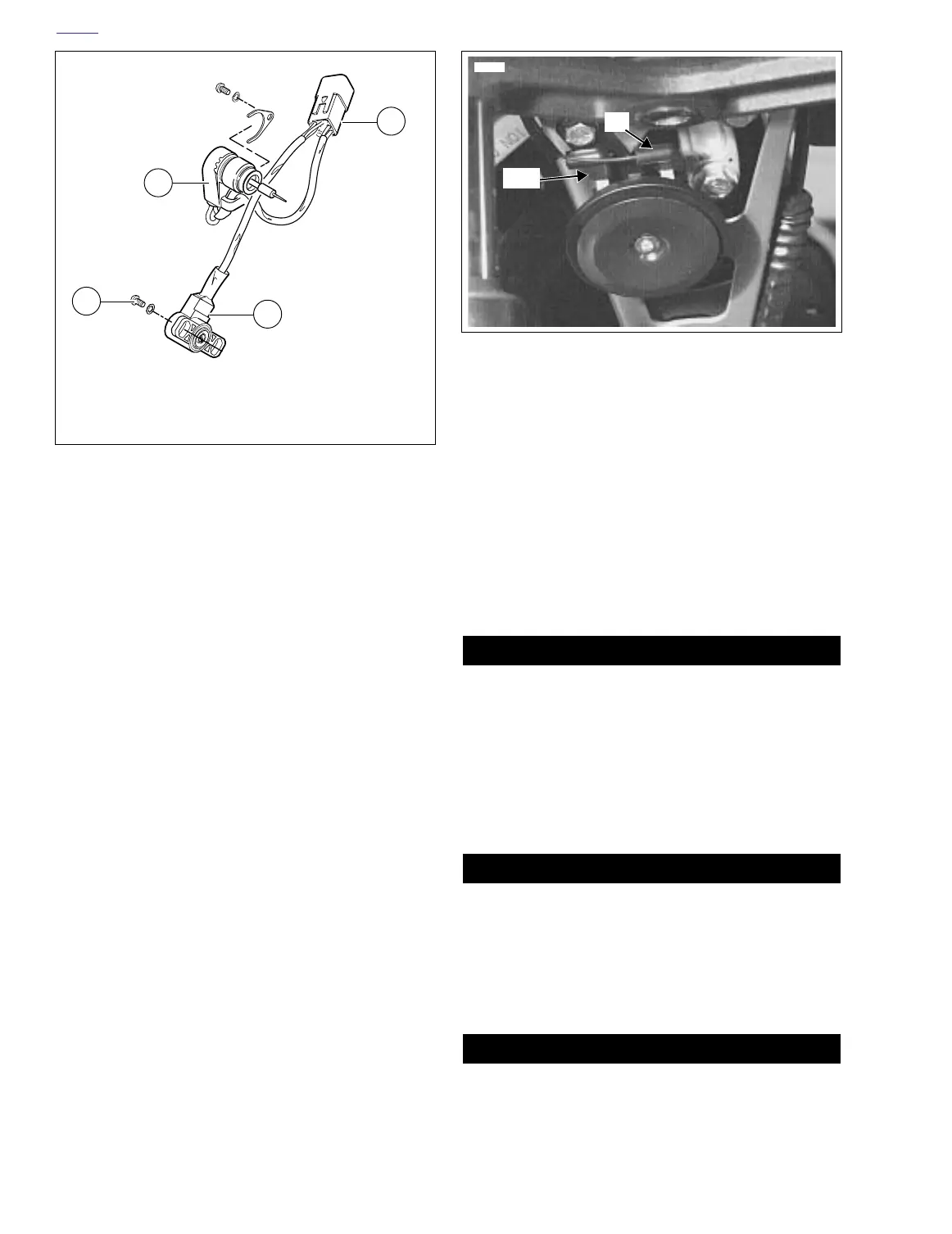

Figure 7-98. TP Sensor/Auto-Enrichener Connector [88]
a0225x7x
1. Connector [88]
2. Throttle position sensor
3. Tamper-resistant T20 TORX screws
4. Auto-enrichener
1
2
3
4
Figure 7-99. Horn Connector [122]
7816
Y/BK
BK
