2007 Buell P3: Electrical 7-71
HOME
INSTALLATION
1. Feed main wiring harness through frame from back to
front.
2. See Figure 7-95. Connect flasher relay connector [30] to
flasher relay and starter relay connector [123] to starter
relay.
3. See Figure 7-96. Connect system relay connector [171]
to system relay.
4. Install fuse block.
5. Connect positive (+) wire to circuit breaker. Tighten metal
nut to 15-18 in-lbs (1.7-2 Nm). Tighten plastic acorn nut
to 1-3 in-lbs (0.1-0.3 Nm).
6. Feed negative (-) wire across frame and connect to volt-
age regulator mount and frame. Use two cable straps to
secure wires.
7. See Figure 7-97. Mate speed sensor connector [65].
Tuck excess harness into right frame pocket.
8. Connect two blade terminals to stoplight switch above
swingarm.
9. Mate sidestand switch connector [60] located above
swingarm cable strap wires.
10. Install starter connector [128] located under starter sole-
noid.
11. Install neutral switch bullet connector [172].
12. Install oil pressure switch connector [120] to oil pressure
switch. Route wire around oil pump.
13. Install hose clamp around hoses and oil pressure switch
and neutral switch wires. Secure clamp with new locknut.
14. Attach main wiring harness to T-studs.
15. Feed wire harness through upper tie bar mount in two
bundles.

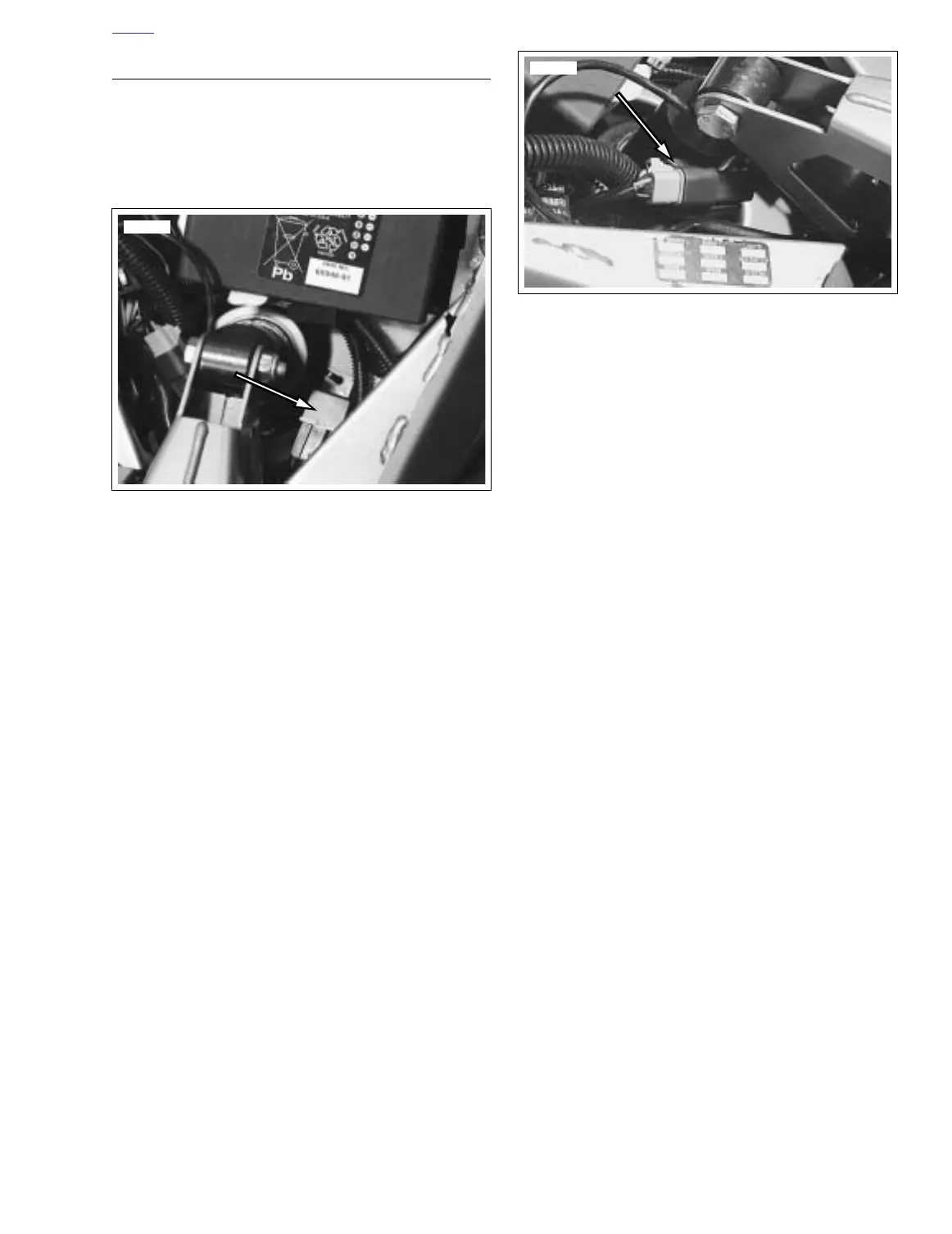

Figure 7-96. System Relay
7815
Figure 7-97. Speed Sensor Connector [65]
