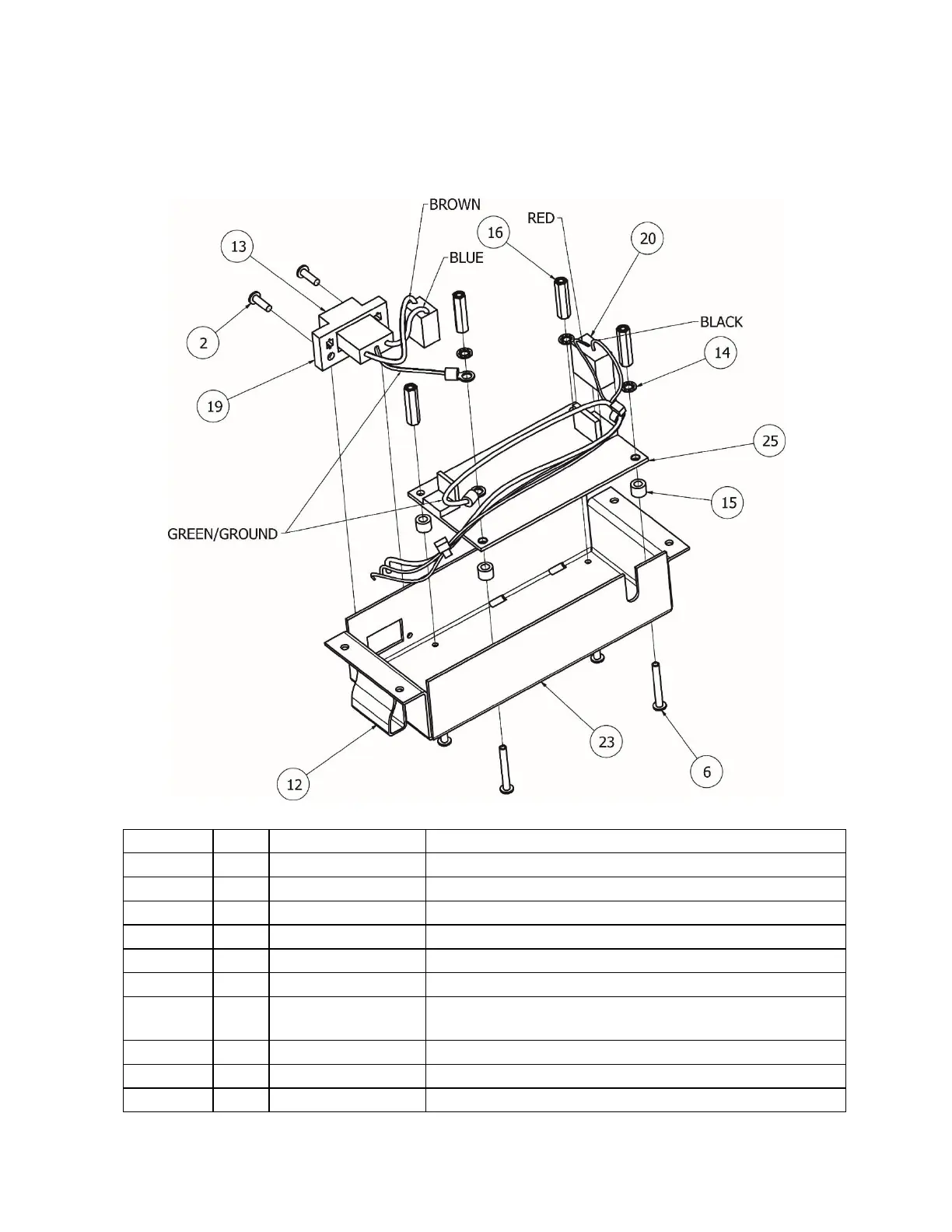

12.7 190DC Power Supply Sub-Assy.
ITEM NO.
QTY.
PART NUMBER
DESCRIPTION
2
2
6021-0420
SCW ROUND-HEAD MACHINE-SCW 04-40X.375
6
4
6021-2018
SCW PAN-HEAD.. MACHINE-SCW 04-40X.875
12
1
6610-5007
CABLE CLIP, 1” X 1” GREY
14
4
6680-0026
WASHER LOCK INT TOOTH #4 TYPE A Z-PL
15
4
6680-0138
SPACER #6 X .187 NYLON
16
4
6680-1107
SPACER #4-40X.750 3/16 HEX ALU. Z/P
19
1
8400-B017-0A
190 AC POWER CABLE
(See Section 13.8 190DC Wiring Detail)
20
1
8400-B018-0A
DC POWER CABLE, 190
23
1
8400-C005-08
POWER SUPPLY COVER, 190
25
1
8400-C026-0A
POWER SUPPLY, 190DC
