Cardinal 190 Series - 190 DC Wiring Detail; 190 DC POWER OPTIONS (Not Shown)

Model 190 Installation, Technical and Operation
8400-M022-O1 Rev J
Page 133

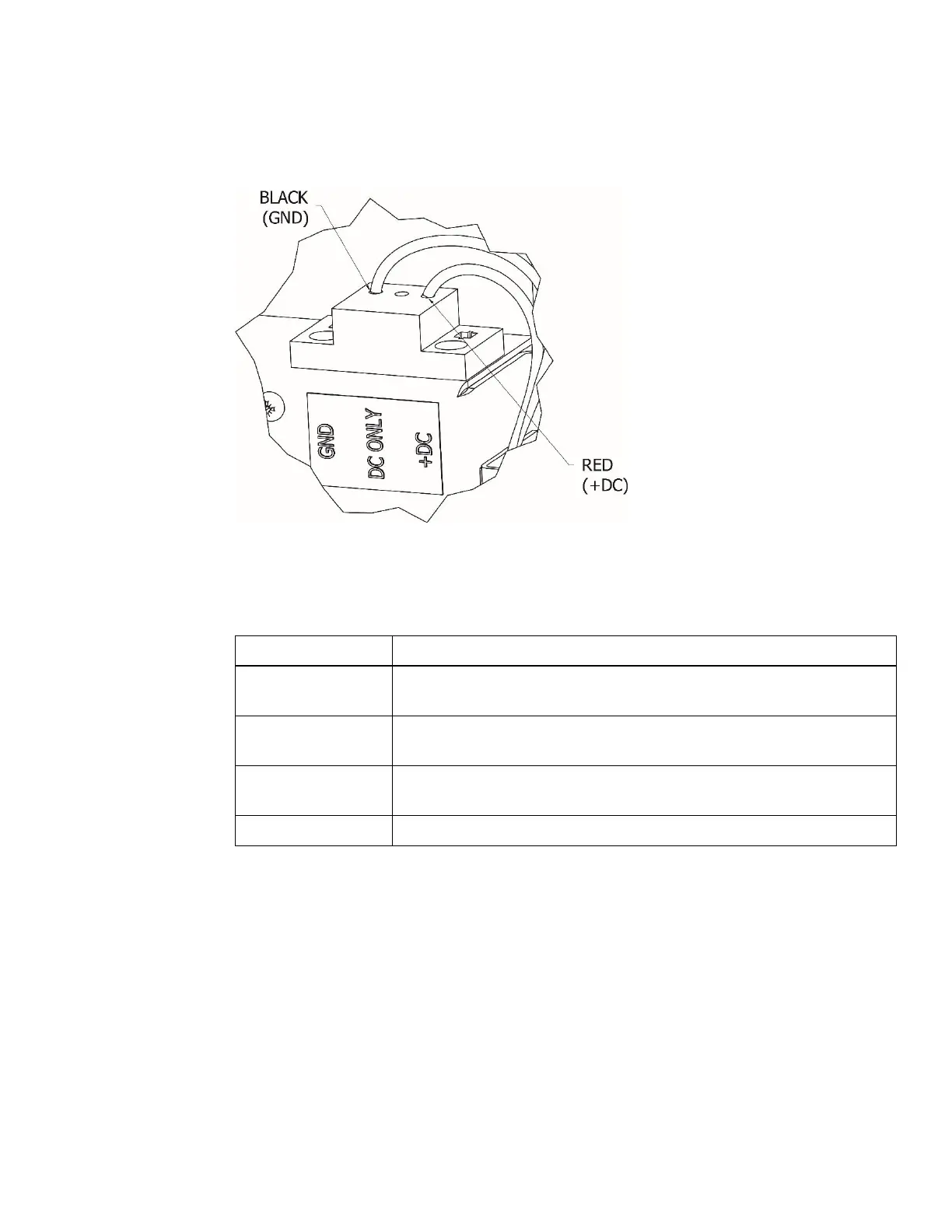

12.8 190DC Wiring Detail
12.9 190DC POWER OPTIONS (not shown)
(Must select from power options listed below)
PS190
AC ADAPTER FOR 190DC
190DC6
190DC PWR CONN.
W/6 FT CABLE & BATTERY TERM. EYELETS
190DC12
190DC PWR CONN.
W/12 FT CABLE & BATTERY TERM. EYELETS
190DC18
190DC PWR CONN.
W/18 FT CABLE & BATTERY TERM. EYELETS
190DCMATE
190DC POWER MATING CONNECTOR
