Cardinal 190 Series User Manual

Model 190 Installation, Technical and Operation
8400-M022-O1 Rev J
Page 153
16. APPENDIX D – 190-IP Option
16.1 Features
 Standard RJ45 Ethernet port
 Embedded Web server
 10/100Mb Ethernet – auto-sensing
 No firmware update necessary to the 190 STORM
 Easy configuration through a Web interface
 High-performance processor (12 MIPS at 48 MHz, 22 MIPS at 88 MHz)
 E-mail client capability
 Password protection
 Status/diagnostic LEDs
16.2 Onboard Status/Diagnostic LED’s

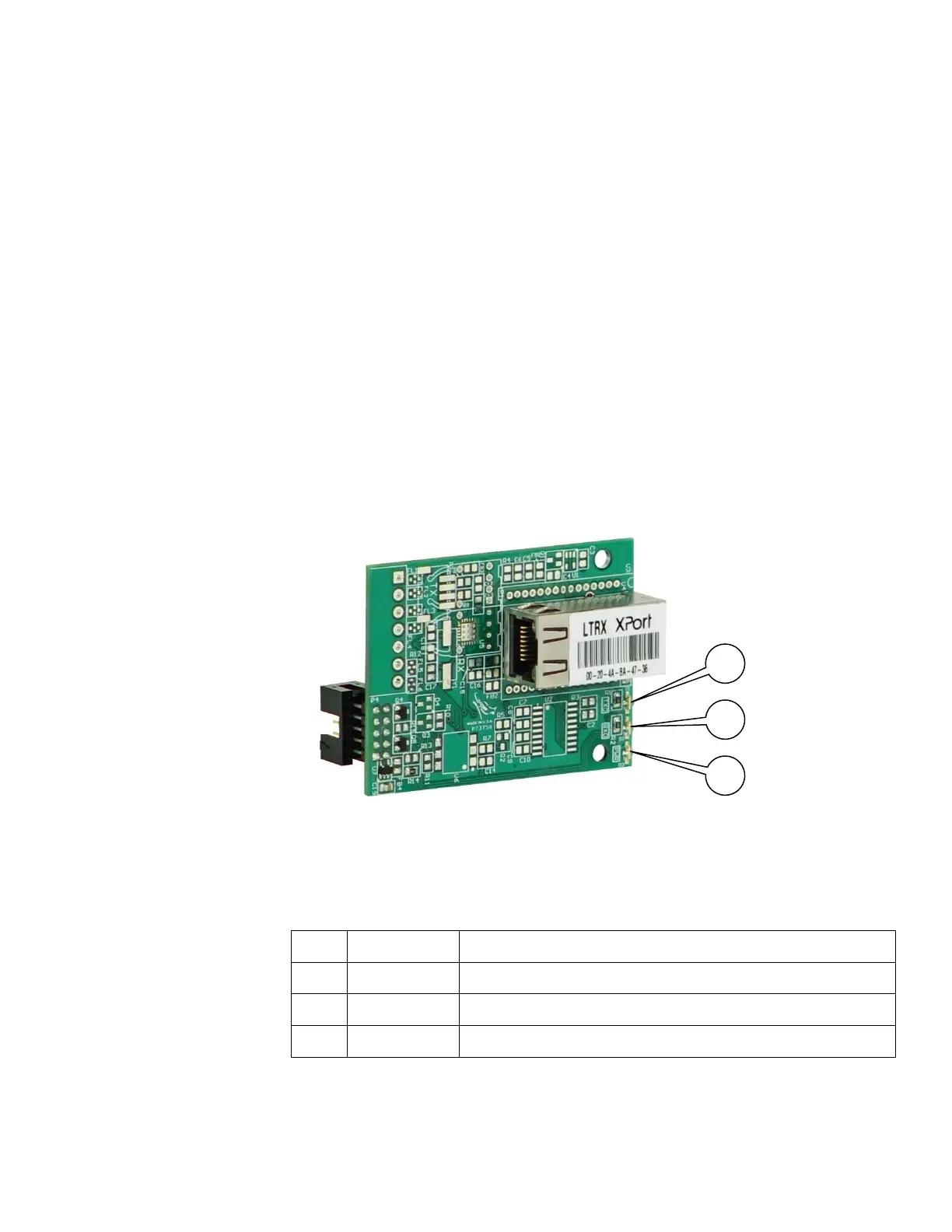

The 190-IP option card contains three (3) LED’s to indicate the
communication status of the Ethernet TCP/IP connection.
LED
Indication
Description
D1
TXD
Indicates data transferred from the 190
D2
RXD
Indicates data received from the XPORT module
D3
PWR
Indicates power applied to the option card
D3
D2
D1
