17.2 Onboard Status/Diagnostic LED’s

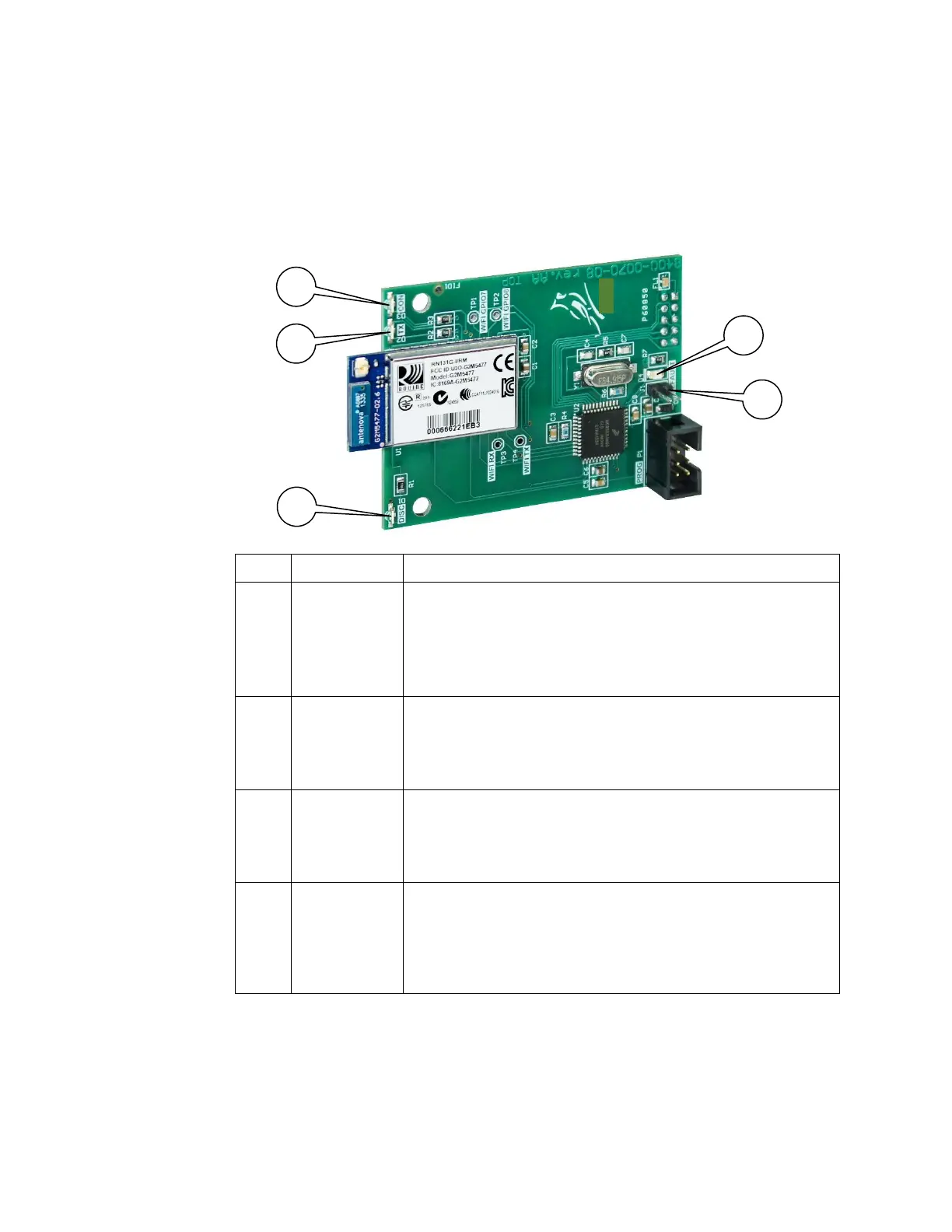

The 190-WiFi option card contains four (4) LED’s to indicate the
communication status of the wireless connection.
This LED indicates that Discovery Mode is active
on the 190-WIFI. Discovery Mode affects whether
the 190-WIFI can see (find) computers and
devices on the network and whether other
computers on the network can see the 190-WIFI.
This LED will illuminate when the 190-WIFI has
been successfully connected to a network and will
flicker when there is data activity over the wireless
network.
This LED displays the communication status. It
will be ON or flashing rapidly when
communications between the 190-WIFI and the
wireless network is established.
This LED will illuminate to indicate the 190-WIFI is
in the process of resetting the configuration.
When the reset to defaults is complete you should
see the LED flash 5 times and then go out when it
is complete.
