4-OPERATINGINSTRUCTIONS

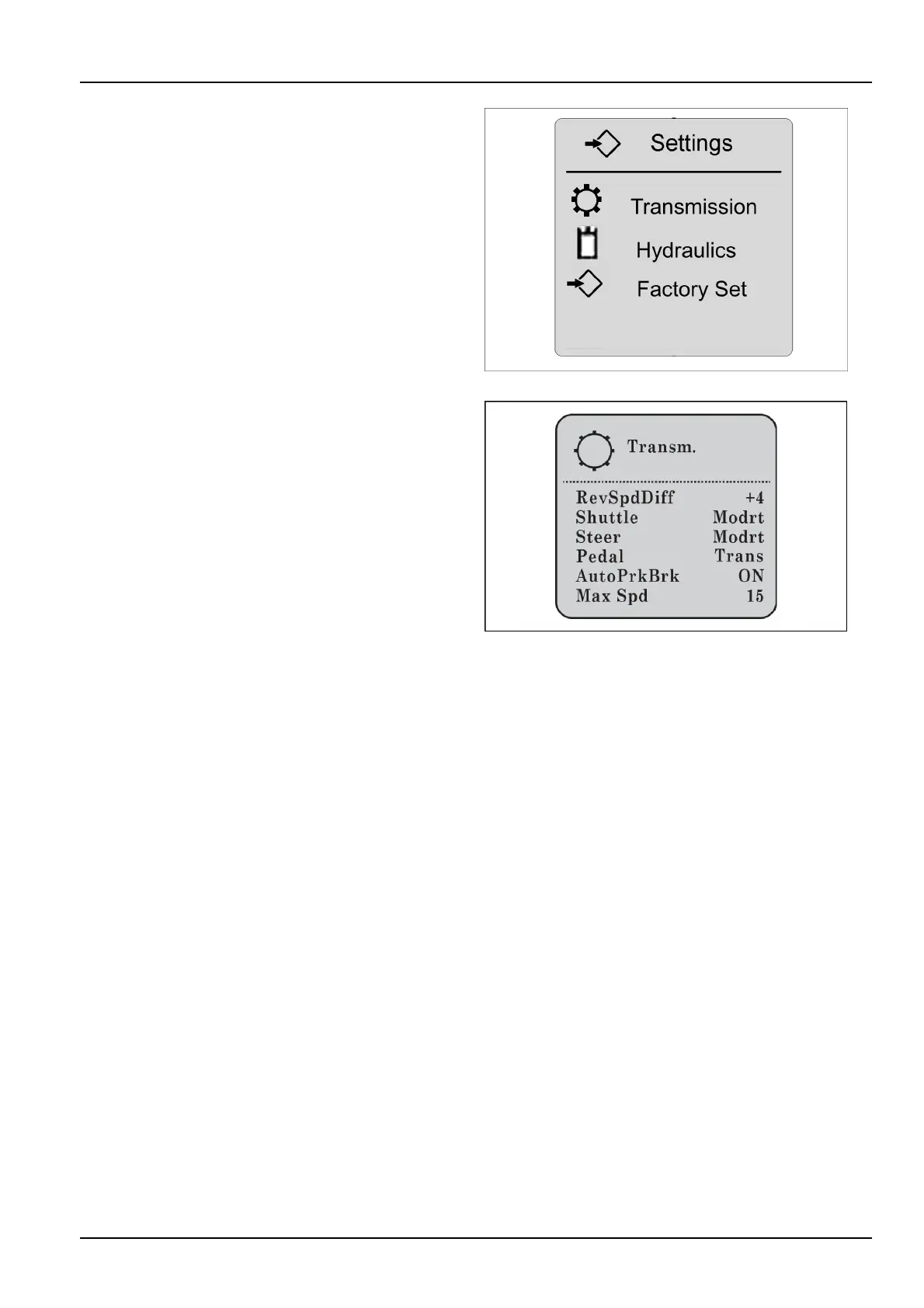

3.TheSettingsscreenwilldisplayalongwiththefollow-

ingchoices:

Transmission

Hydraulics

FactorySet

4.Select“Transmission”,andpresstheenterswitch.

RAIL12DOZ0647AA3

5.Usethedownarrowtohighlight“Steer”.

NOTE:Moderateispresetfromthefactory.

6.Pushtheenterswitchtoconrmtheselection.

7.Chooseandhighlightthesettingdesired:“Smooth”,

“Moderate”,or“Aggressive”.Pushtheenterswitchto

conrmtheselection.

8.Presstheescapeswitchtostorethechoice.

RAIL14DOZ0583AA4

4-15
