3-CONTROLSANDINSTRUMENTS

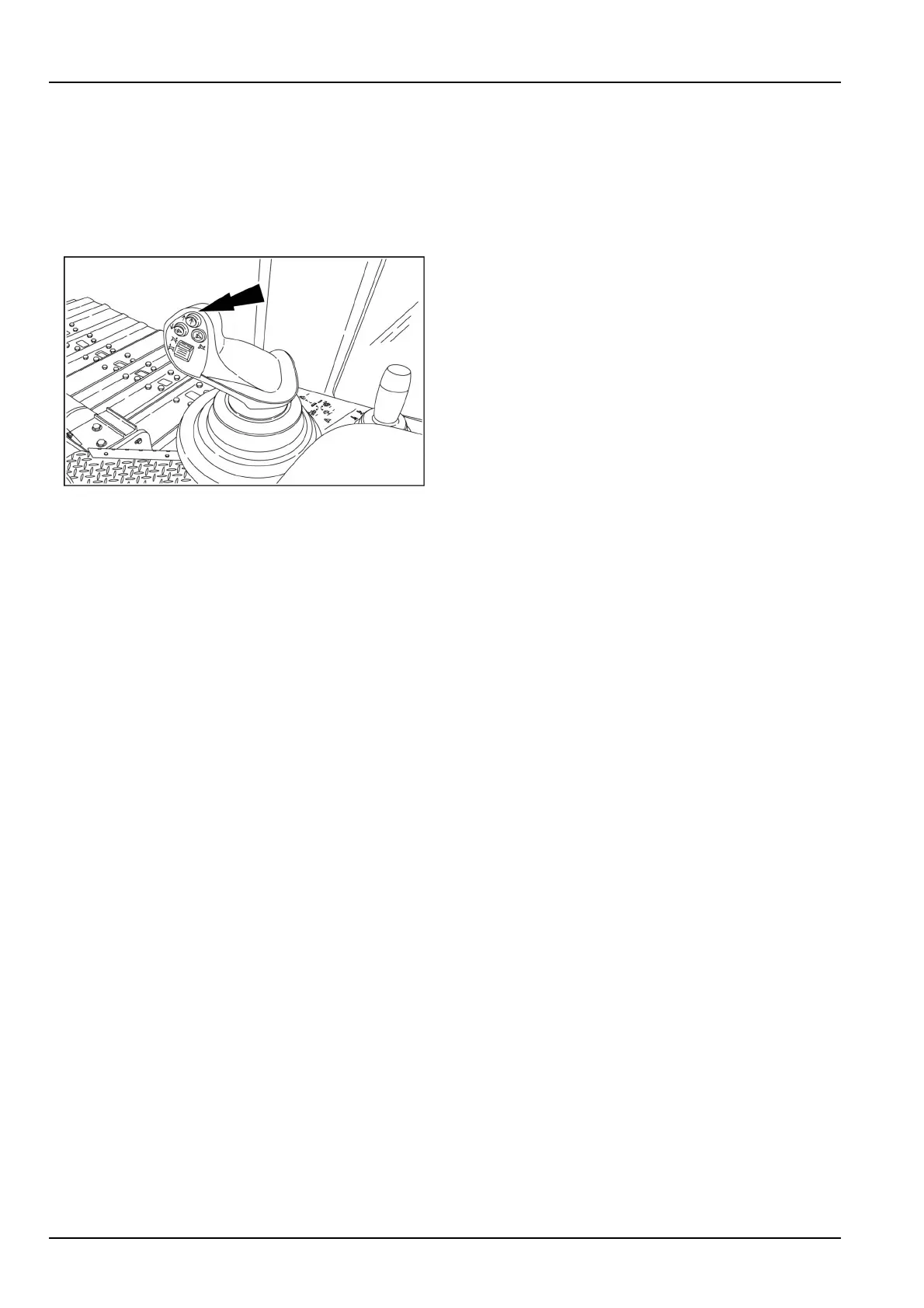

Right-handcontrollever

Joystickmulti-screencontrol

•

Themult-displayscreencanalsobeaccessedwiththe

righthandjoystick.Thiswillallowtheoperatortoac-

cessinfoscreensandtripscreenswithoutremovinghis

handsfromthejoysticks.

RAPH12DOZ0082AA1

3-50
