6-WORKINGOPERATIONS

Ripper

RAIL13DOZ1272FA1

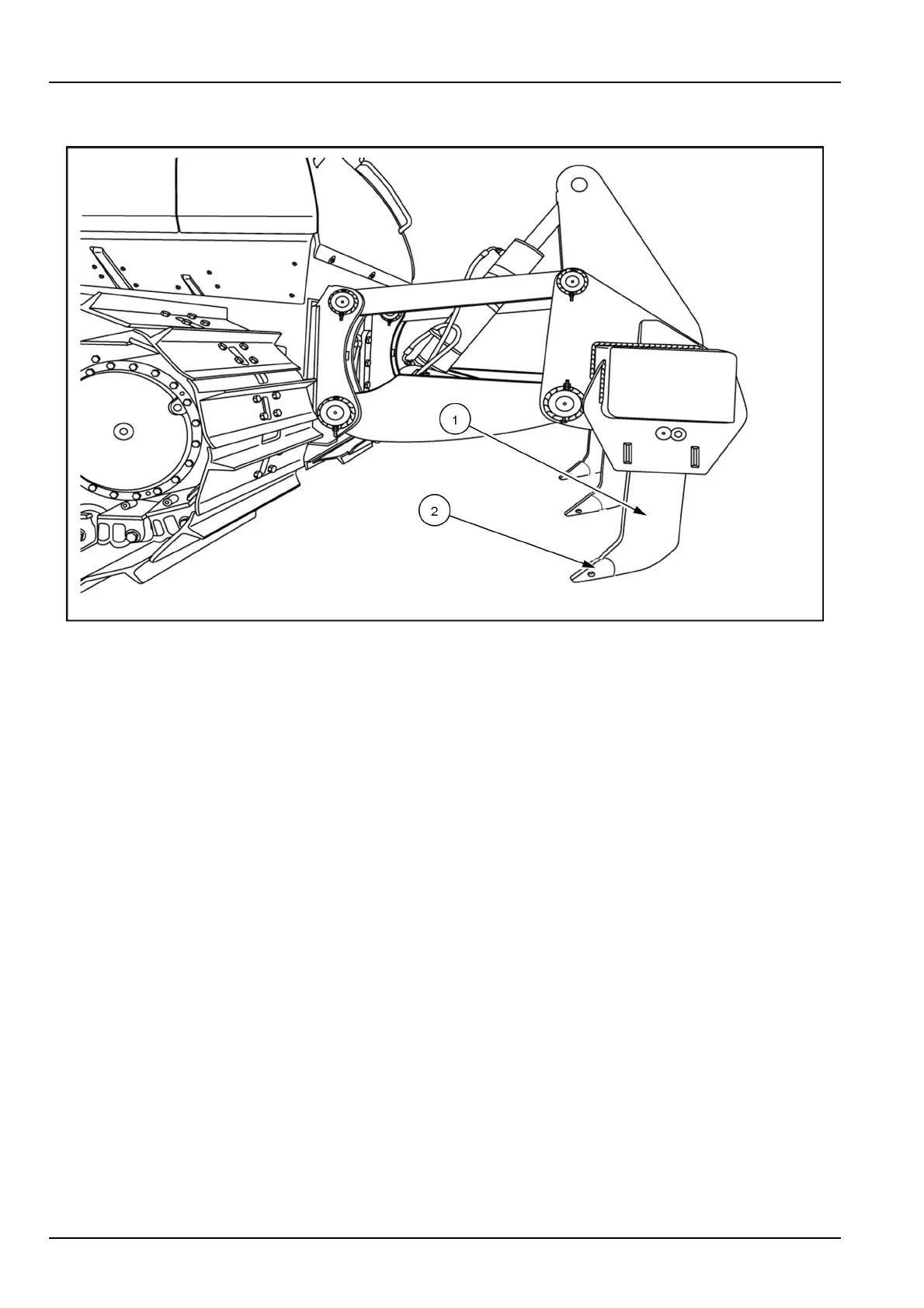

1.RipperShank

2.Rippertooth

Therearripperdepthcanbeadjusted.Usetheappropriatedepthfortheworkingconditions.

6-4
