CASE CONSTRUCTION 1150M - Machine Components and SCR System Overview

288 pages

Save Page as PDF

To Next Page

To Previous Page

1-GENERALINFORMATION

Machinecomponents

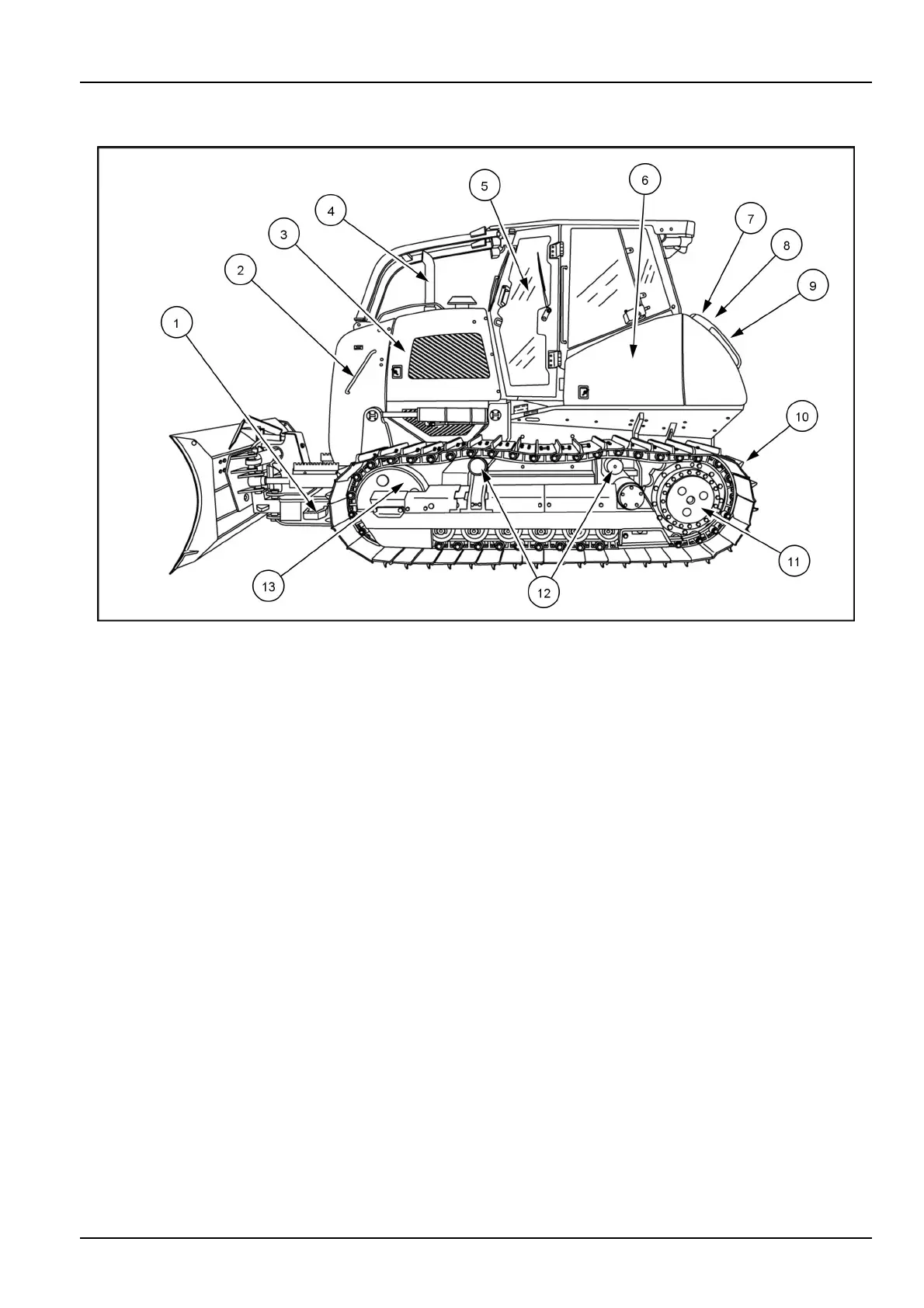

RAIL12DOZ0646FA1

1.Step(ifequipped)8.DieselExhaustFluid(DEF)ll

2.Handhold9.Rearhandhold

3.Leftfrontaccessdoor10.Rearstep(ifequipped)

4.Exhaust11.Finaldriveplanetary

5.Leftcabdoor12.Carrierroller

6.Leftrearaccessdoor

13.Idler

7.Fuelll

1-9
