7-MAINTENANCE

ELECTRICALSYSTEM

Fusesandrelays

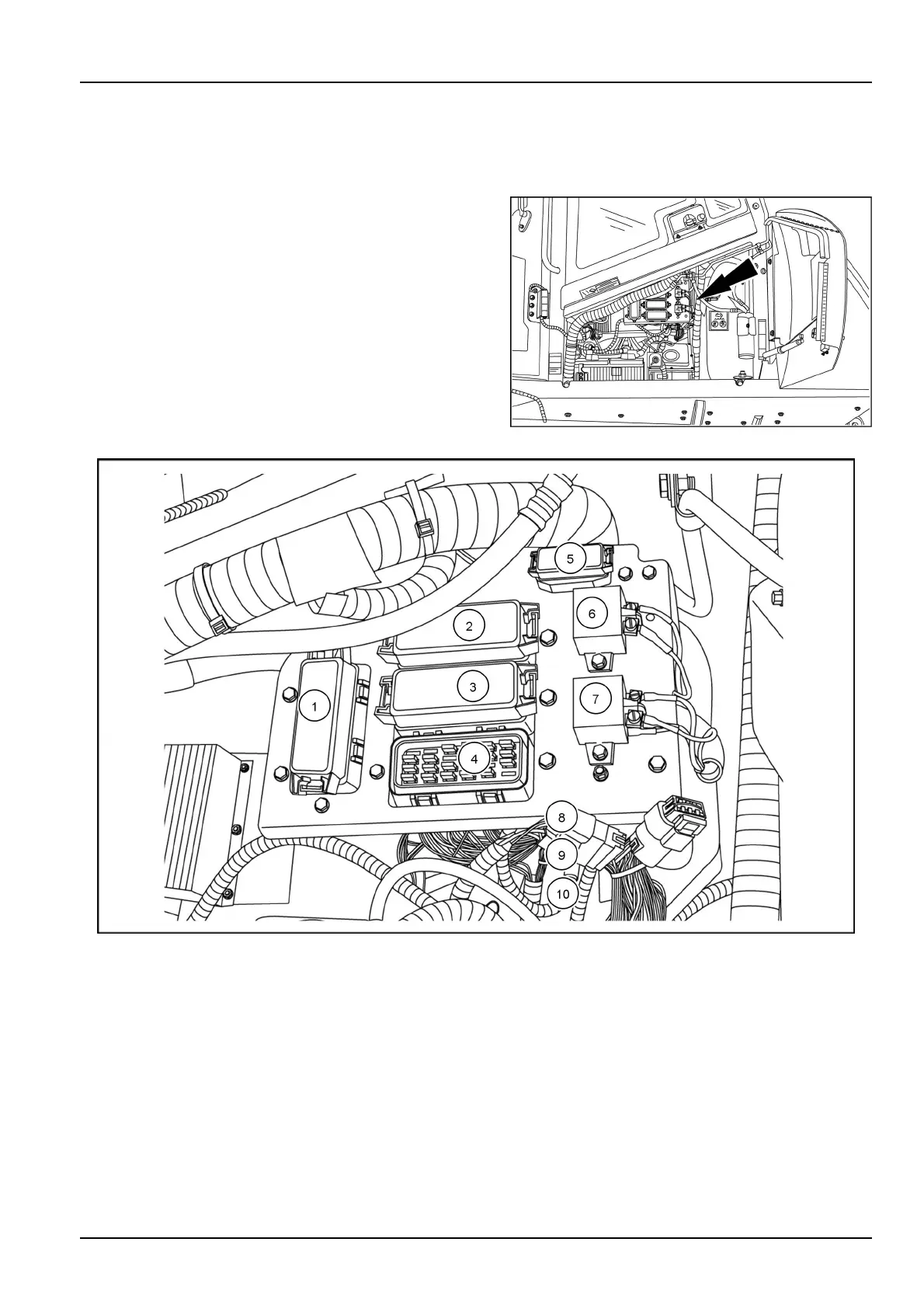

Fusesandrelayscanbefoundinsidetheaccessdoor

onthelefthandsideofthemachine.

Ifpowerdoesnotcomeonwhenthekeyswitchisturned

totheONposition,checktheappropriatefuse.

Beforechangingfusesorrelays,turntheignitionkey

switchtotheOFFposition.

Checkfusefunctionandlocationagainstfusechartor

informationalsignonmachine.

RAPH12DOZ0043AA1

RAIL12DOZ1024FA2

7-119
