3-CONTROLSANDINSTRUMENTS

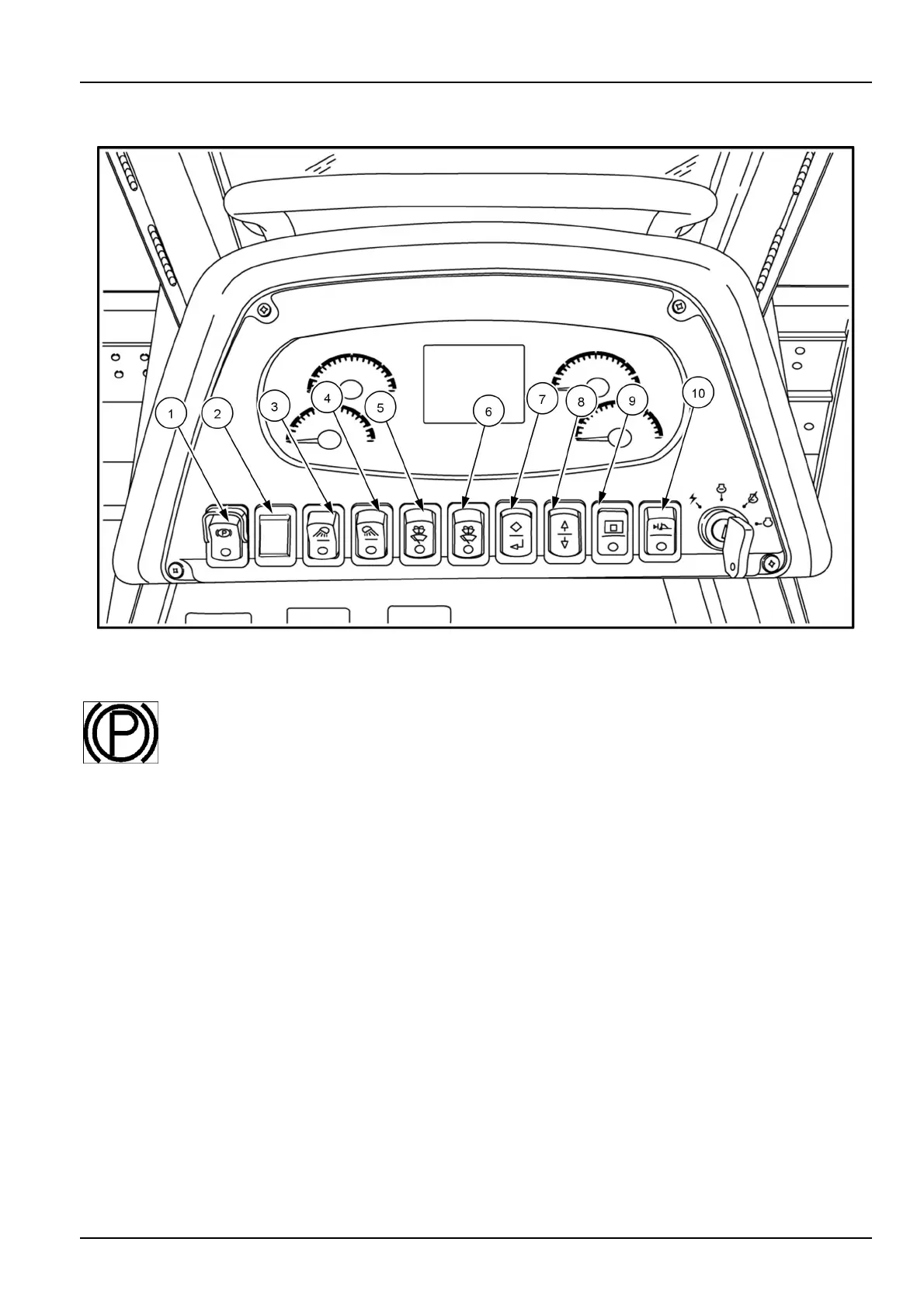

Switchoverviewandoperation

RAIL12DOZ0830FA1

1.Parkbrakeswitch

Whenturningtheignitionkeyon,theparkbrakewilldefaulttotheONposition.Theparkbrake

allowsanoperatortolockandunlockgrounddrivecontrol.

Engagingtheparkbrake

Placethemachineinneutralandstopthemachine.Engagetheparkbrakebypushingdownonthetopoftheswitch.

Theparkbrakewillautomaticallyengagewhenthemachineisshutoff.

Releasingtheparkbrake

Movethejoysticktoneutral,andpresstheparkbrakebutton.

NOTICE:Afailureintheoperatingprocedureorafailureintheelectricalorhydraulicfunctioncanresultinanabrupt

engagementoftheparkbrake.Alwayswearyourseatbelt.

2.Blank

3-27
