CASE CONSTRUCTION 1150M - Right-Hand Side Controls; Dozer Blade Control Lever

3-CONTROLSANDINSTRUMENTS
RIGHT-HANDSIDECONTROLS
Dozerbladecontrollever

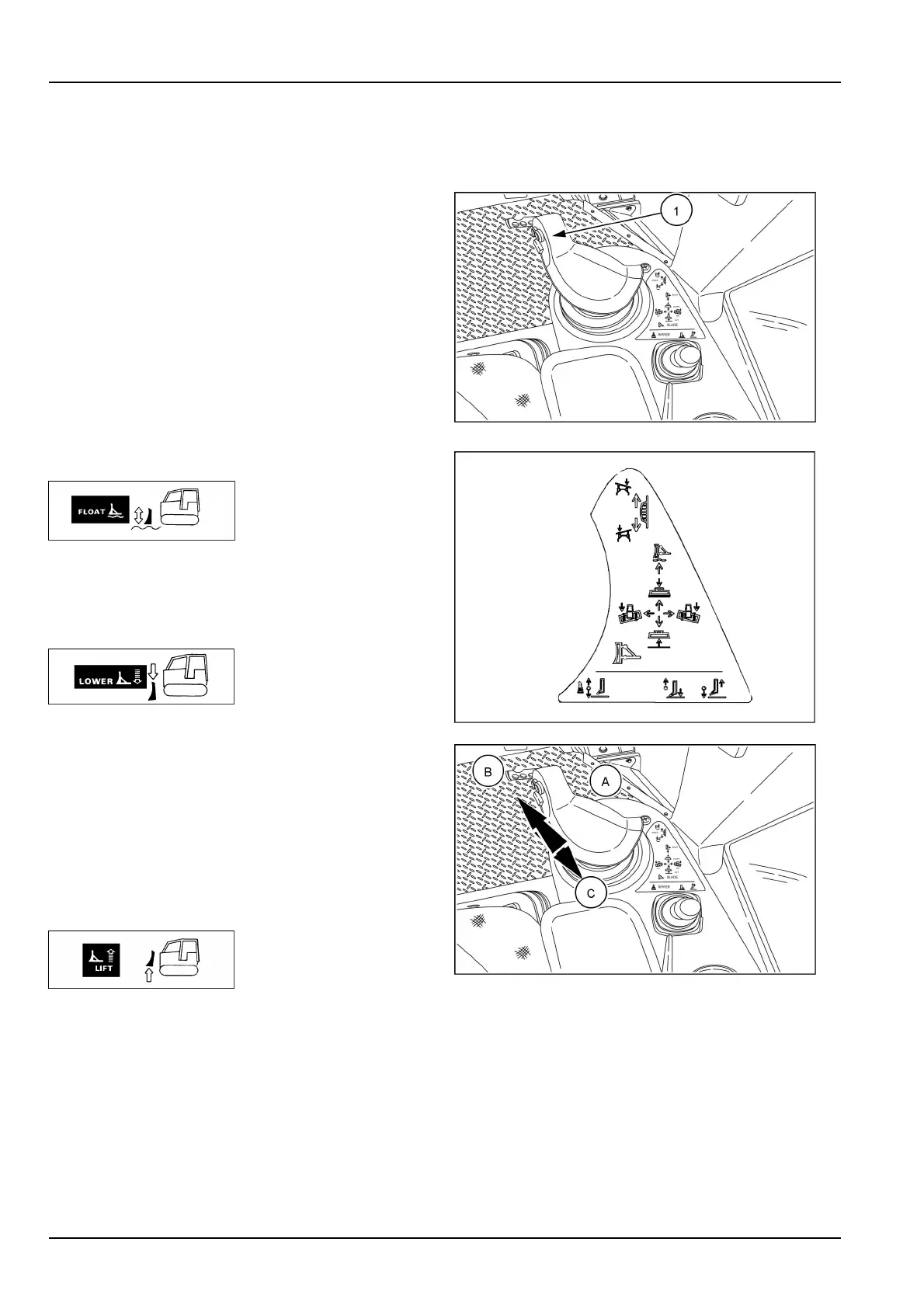

Thedozerbladecontrollever(1)islocatedontheright
handconsole.Position(A)FLOATistheonlyposition
thattheleverwillremaininwithouttheoperatorholding
thelever.Thebladewillstop,andtheleverwillreturnto
neutralortheHOLDpositioninanyotherpositionwhen
theleverisreleased.
RAPH12DOZ0081AA1
Float
FLOAT(A)isadetentposition.WhenintheFLOATpo-
sition,thebladecanfollowthelevelofthegroundwithout
movementofthecontrollever.
Lower
Pushthecontrolleverforward(B)toLOWERtheblade.
Thecontrollevermustbeheldinthispositioninorderto
lowertheblade.Whentheleverisreleased,itwillreturn
totheHOLDposition.
NOTE:Aquickdropfeatureallowsthebladetolower
quickly.Thefurtherthejoystickismovedforward,the
morequicklytheblademoves.Toactivatethequickdrop,
movethejoysticktotheendofbladedownstokebefore
theoatdetentfeelpoint.
Raise
MovethecontrolleverbacktotheRAISE(C)positionto
lifttheblade.Whenthecontrolleverisreleased,itwill
returntotheneutralorHOLDposition.
Hold
ThebladewillstopmovingintheHOLDposition.When
released,thecontrolleverwillreturnautomaticallytothe
HOLDposition.Youmustmanuallymovethecontrol
leverfromtheFLOATpositiontotheHOLDposition.
47426568562
RAPH12DOZ0081AA3
3-32
