4-OPERATINGINSTRUCTIONS

Machinesettings

Multi-functiondisplay

Adjustingsteeringsensitivity

Thedirectioncontrolleverhasthreesensitivitysettings:

•

Smooth

•

Moderate

•

Aggressive

Changethesensitivitytosuitjobsite,operations,andop-

eratorexperience.Practicewiththesteeringinthenormal

sensitivitymode.

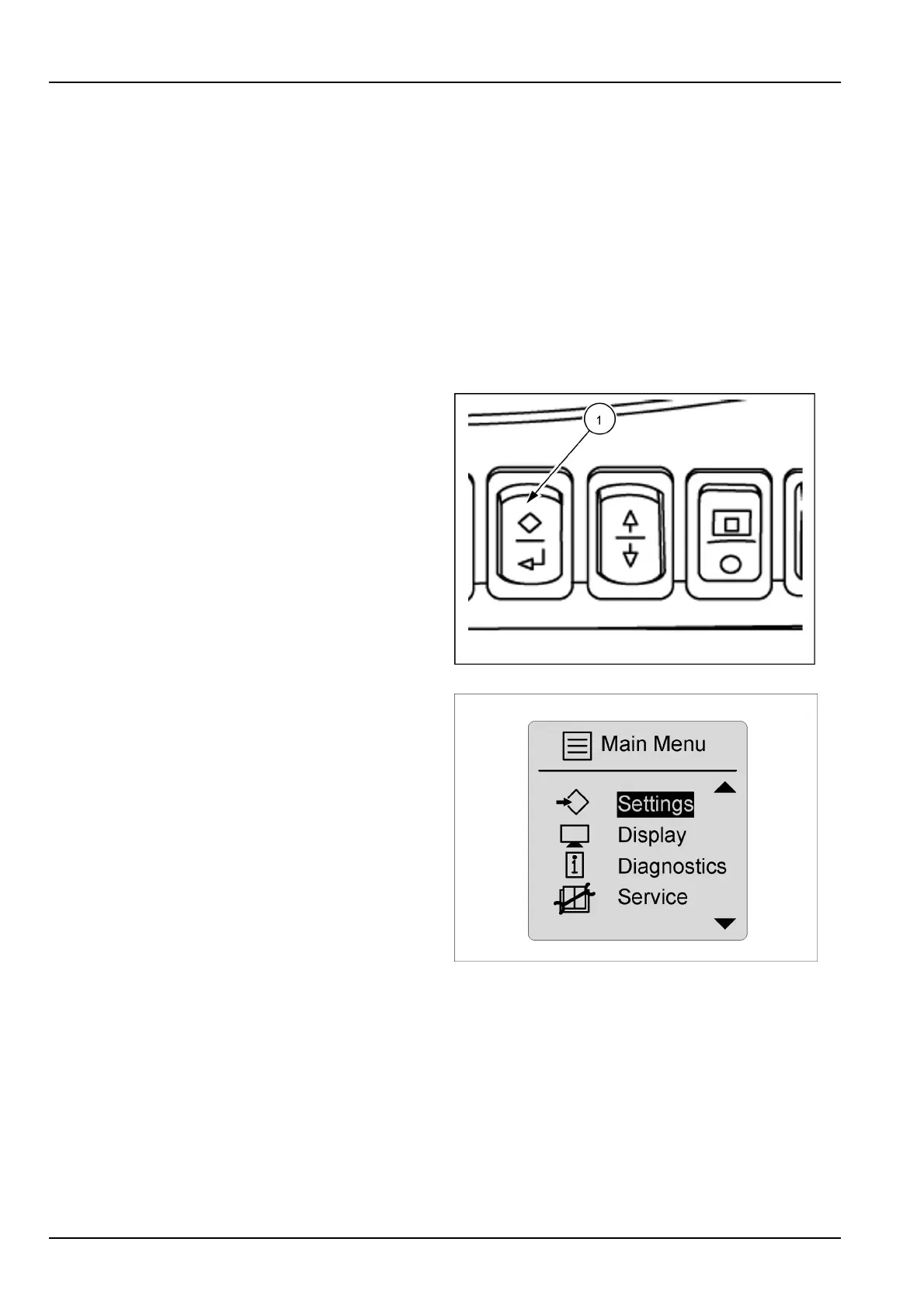

Tochangethesteeringsensitivity:

1.Pressandholdtheenterswitch(1)fortwoorthree

secondsuntilthemenuscreenappears.

RAIL12DOZ0225AA1

2.Highlight“Settings”,andpresstheenterswitch.

RCPH10WHL355AAH2

4-14
