5-TRANSPORTOPERATIONS

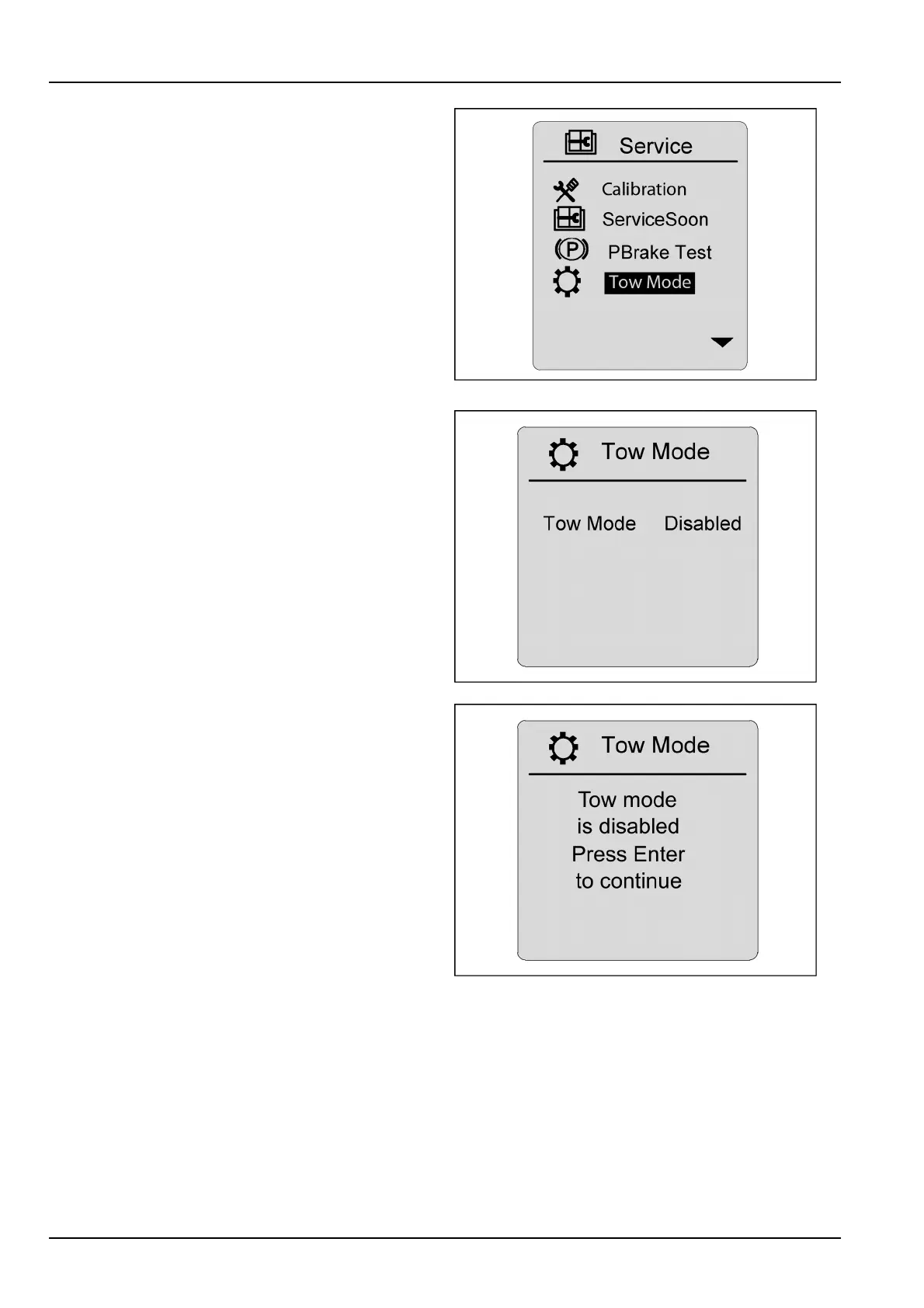

2.Scrolldown,andhighlightthe“TowMode”selection.

Presstheenterswitch.

RAIL12DOZ0648AA2

3.ChangetheT owModefrom“Disabled”to“Enabled”by

highlightingandpressingtheenterswitch.

RAIL12DOZ0592AA3

RAIL12DOZ0823AA4

5-2
