5-TRANSPORTOPERATIONS

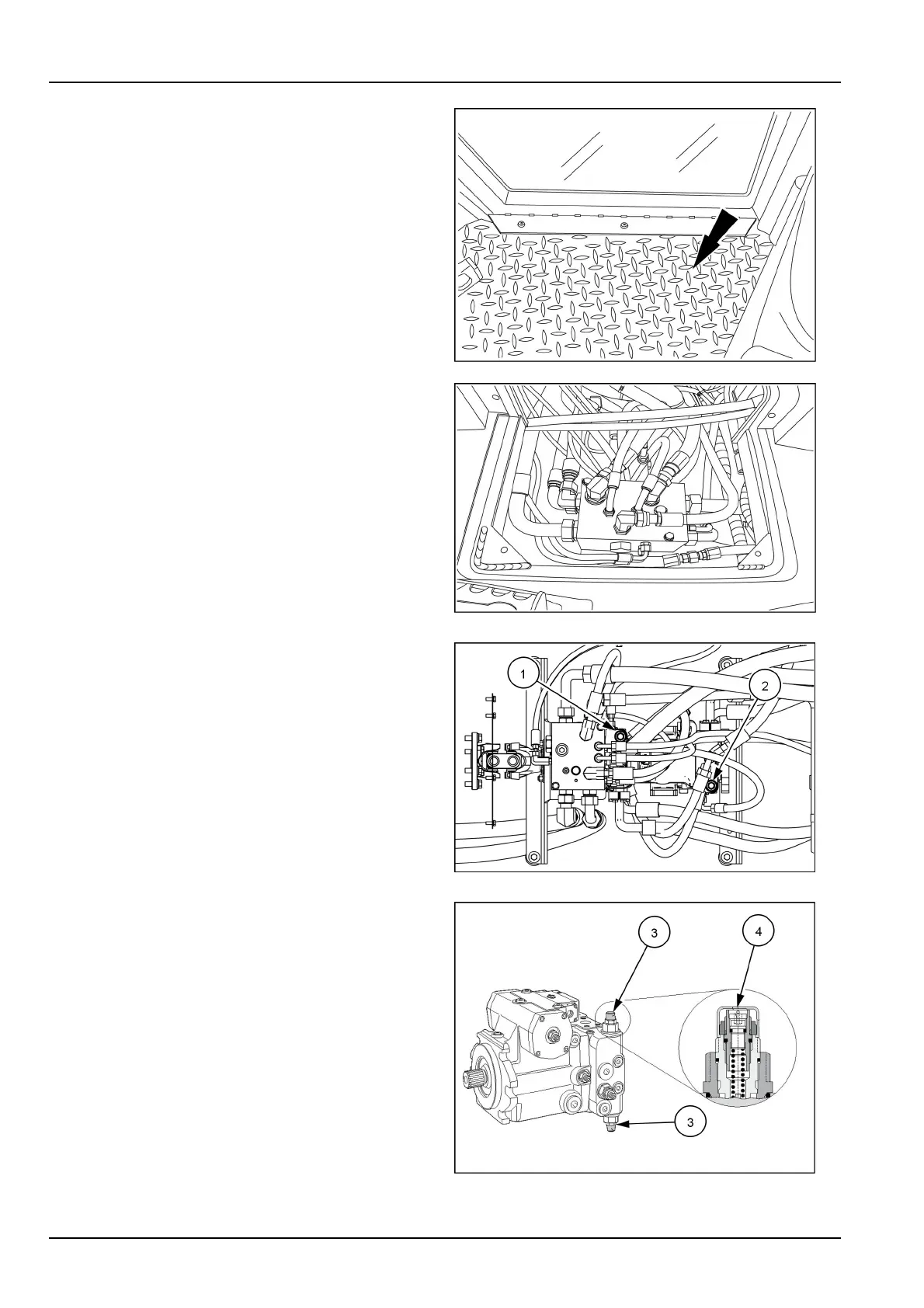

1.Accessthepressurereliefvalvebyremovingtheoor

matandtiltingtheoperatorseatback.Thevalves

arelocatedonthehydrostaticpumpsbeneaththecab

oor.

RAIL12DOZ0232AA1

RAPH12DOZ0094AA2

2.Openpressurereliefvalvestobypassthehydrostatic

pumps(tworightsidevalves(1)andtwoleftside

valves(2)).Thepumpsaretandemmountedandthe

valvescanbefoundoneachsideofthepump.

RAIL13DOZ1265AA3

3.Removethereliefvalveplasticcaps(3).Theplastic

capswillbeunusableafterremoval.

RAIL12DOZ0644AA4

5-6
