6-WORKINGOPERATIONS

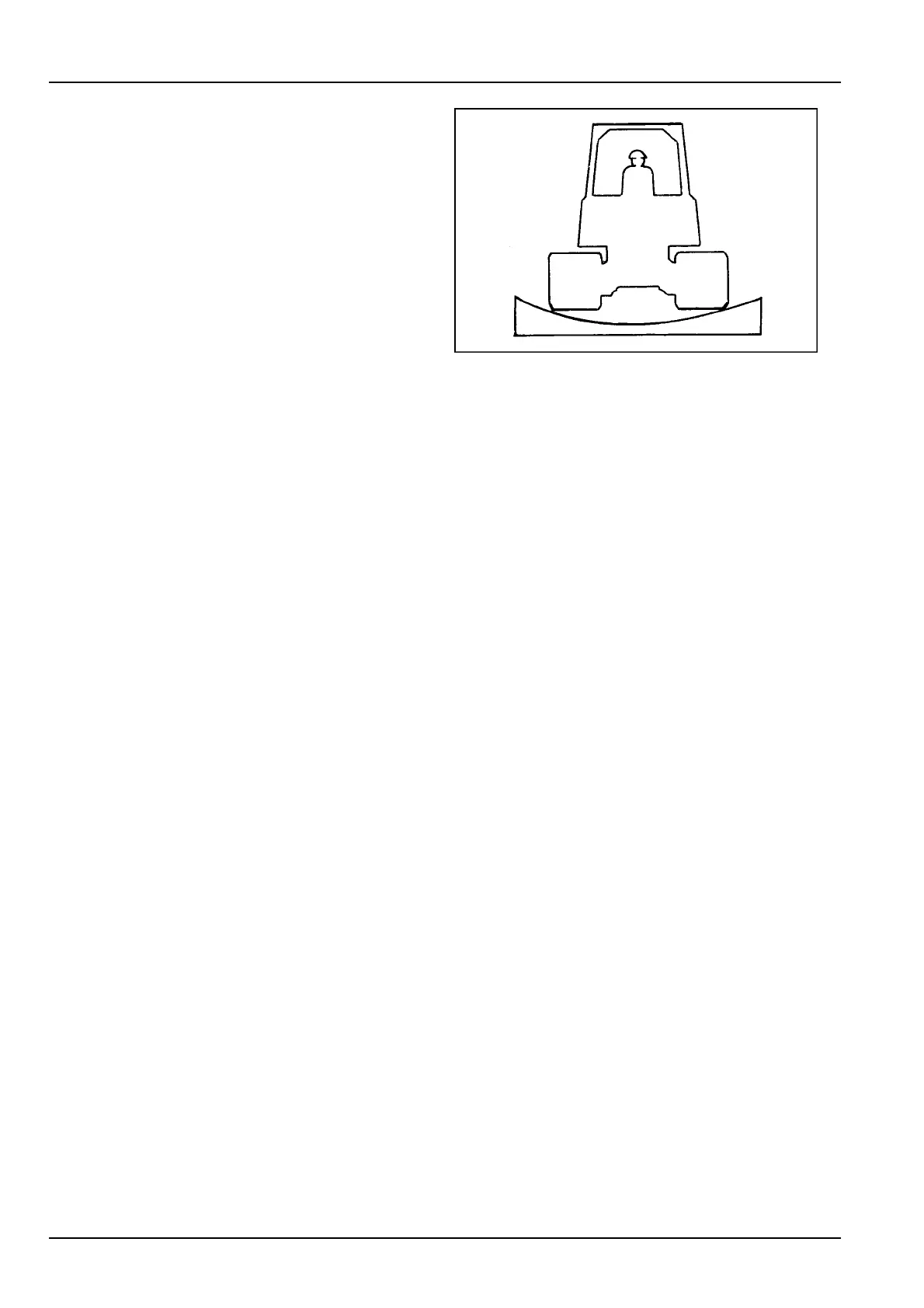

5.Workinginadepressioncausestheoutercomponents

tocarrytheheaviestload.Thewearisincreasedon

theouterlinks,rollertreads,idlertreads,andtrack

plateends.Inextremesituations,theoutersprocket/

bushingwearisgreatlyincreased.

RCIL10CWL008AAL5

Cleantracks

Alwayscleantheundercarriageattheendofthedayorshift.Parkthemachineonalevelsurfacetopreventdistortion

ofthetrackseals(LubricatedTrack).Ifthetemperatureiscold,parkthemachineonasurfacethatwillnotfreezeto

thetrackshoes.

NOTICE:Whenthetracksareunsupportedoffoftheground,donotrunthemachineatspeedsabovethestep10

position.Thismayresultindamagetothedrivetraincomponents.

6-12
