7-MAINTENANCE

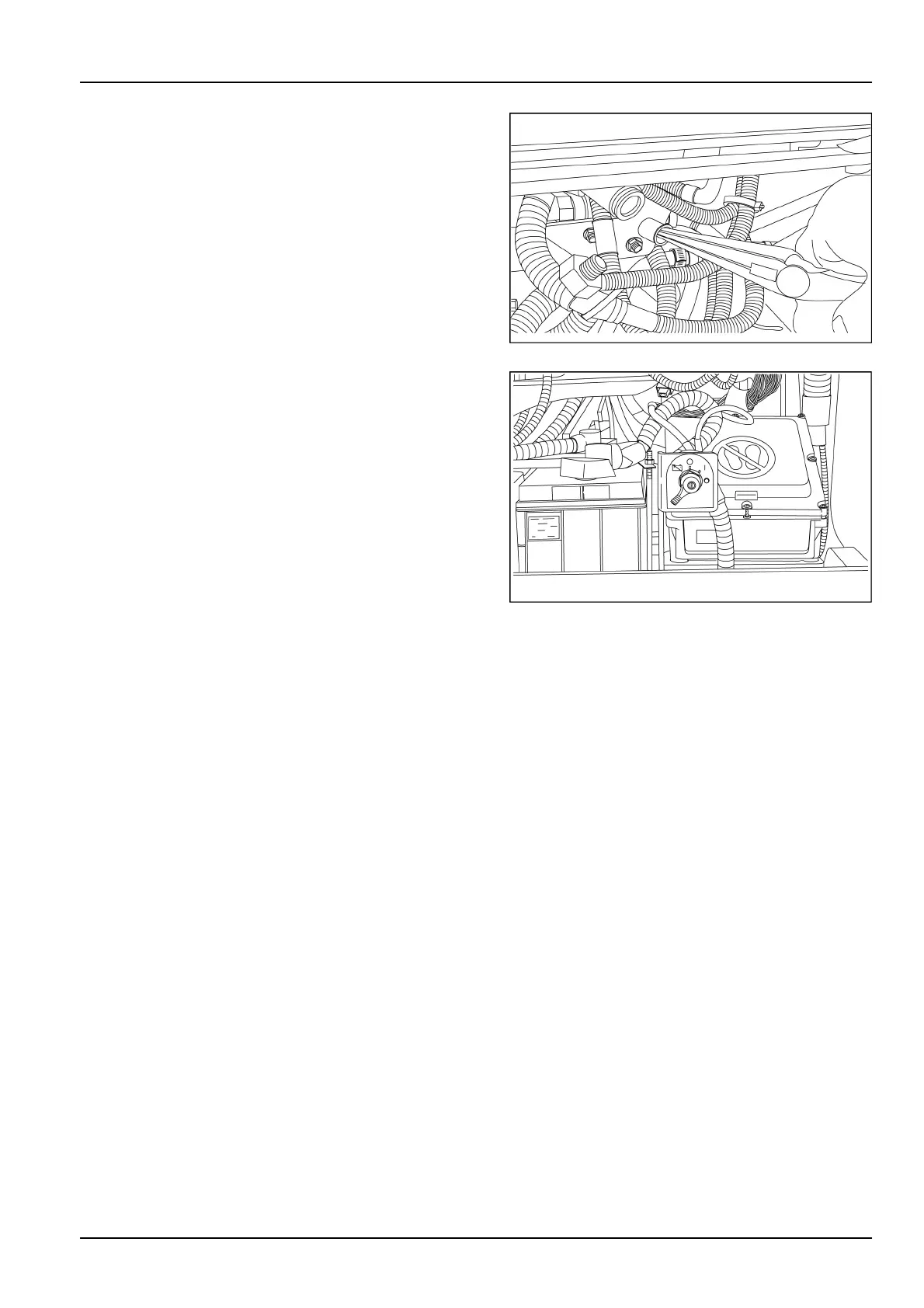

6.Usingneedlenosepliers,removetheDEFsupplylter

usingcarenottodamageorbendtheDEFsupplylter.

7.InspecttheDEFsupplylterhousing,andrinsewith

water.ReplacetheDEFsupplylterifdamaged.

8.ReinstalltheDEFsupplylterintotheDEFsupplyline,

andreconnecttheDEFsupplylines.

RAPH12DOZ0323AA4

9.SecuretheDEFsupplymoduletothemounting

bracket.

10.Starttheengineandrunatidlespeed.Checkfor

leaks.

RAPH12DOZ0044AA5

7-49
