7-MAINTENANCE

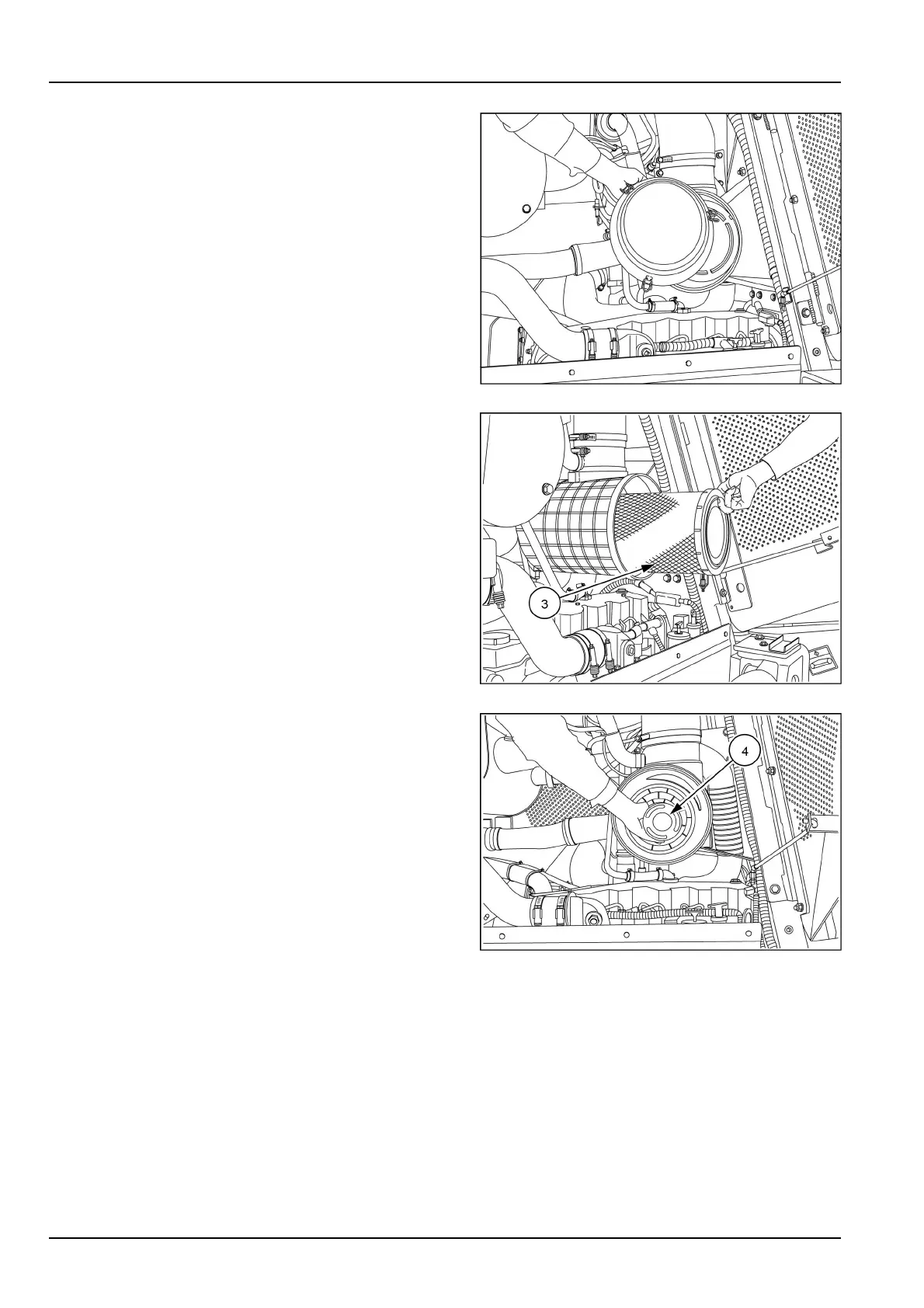

3.Removetheaircleanerhousingcover.

RAIL12DOZ0168AA3

4.Removetheprimaryairlter(3).Cleantheprimaryair

lterwithcompressedairiftheprimarylterisnotbeing

replaced.Theprimaryairltershouldbereplacedafter

threecleanings.

RAIL12DOZ0169AA4

5.Removethesecondarylter(4).

6.Wipetheinsideoftheairlterhousingtocleananydirt

anddebrisawaybeforeinstallingthenewlters.

RAIL12DOZ0170AA5

7-106
