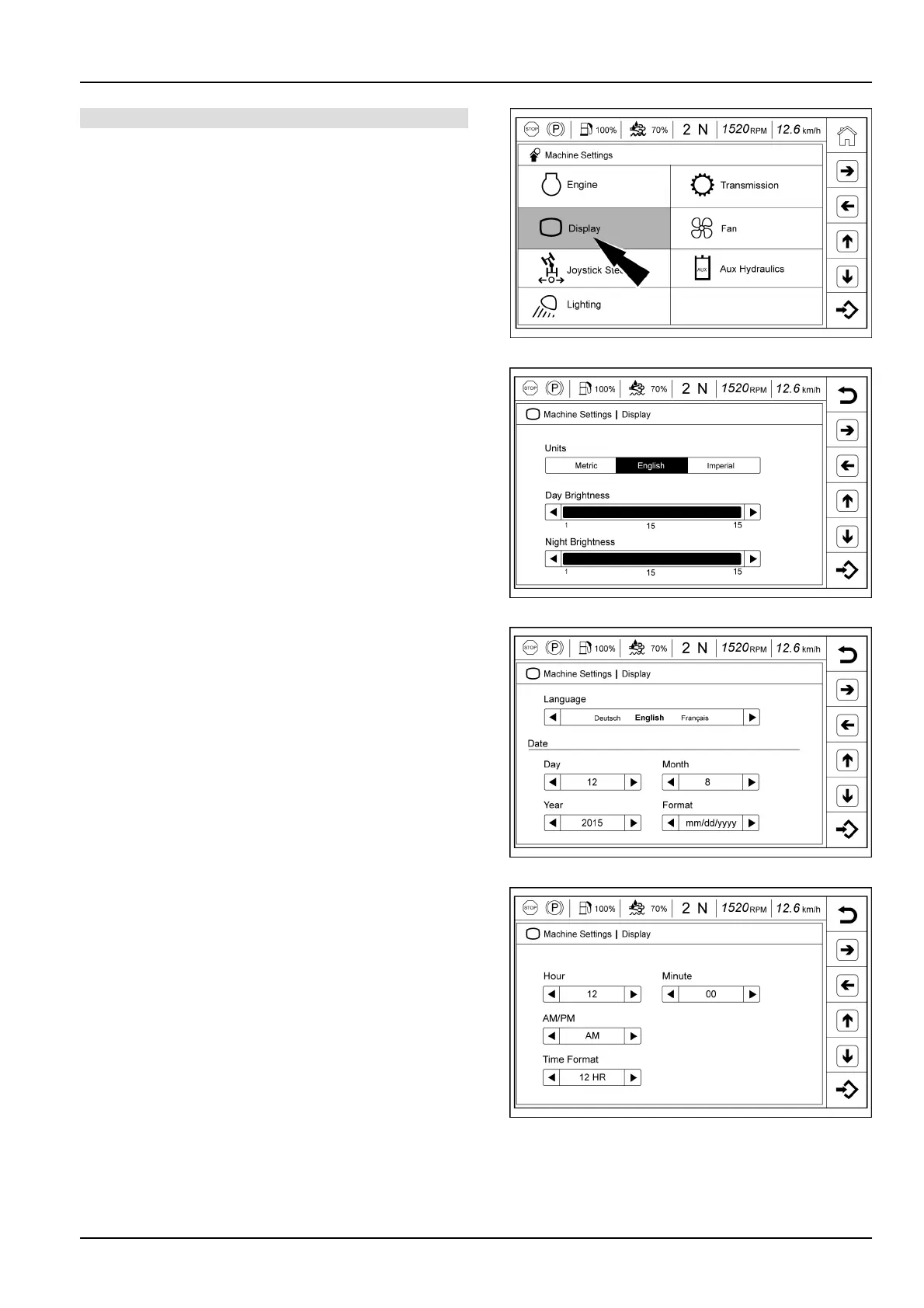

3-CONTROLSANDINSTRUMENTS

Display

Usethekeypadontheright-handofthedisplaytoselect

thekeytoswitchtothe“Display”settings.

LEIL18WHL1215AA20

→Displayselections

Units

DayBrightness

NightBrightness

LEIL15WHL0529AA21

Language

Date

LEIL15WHL0530AA22

Digitalclock

LEIL15WHL0531AA23

3-51
