CONTROLS AND INSTRUMENTS
2-3

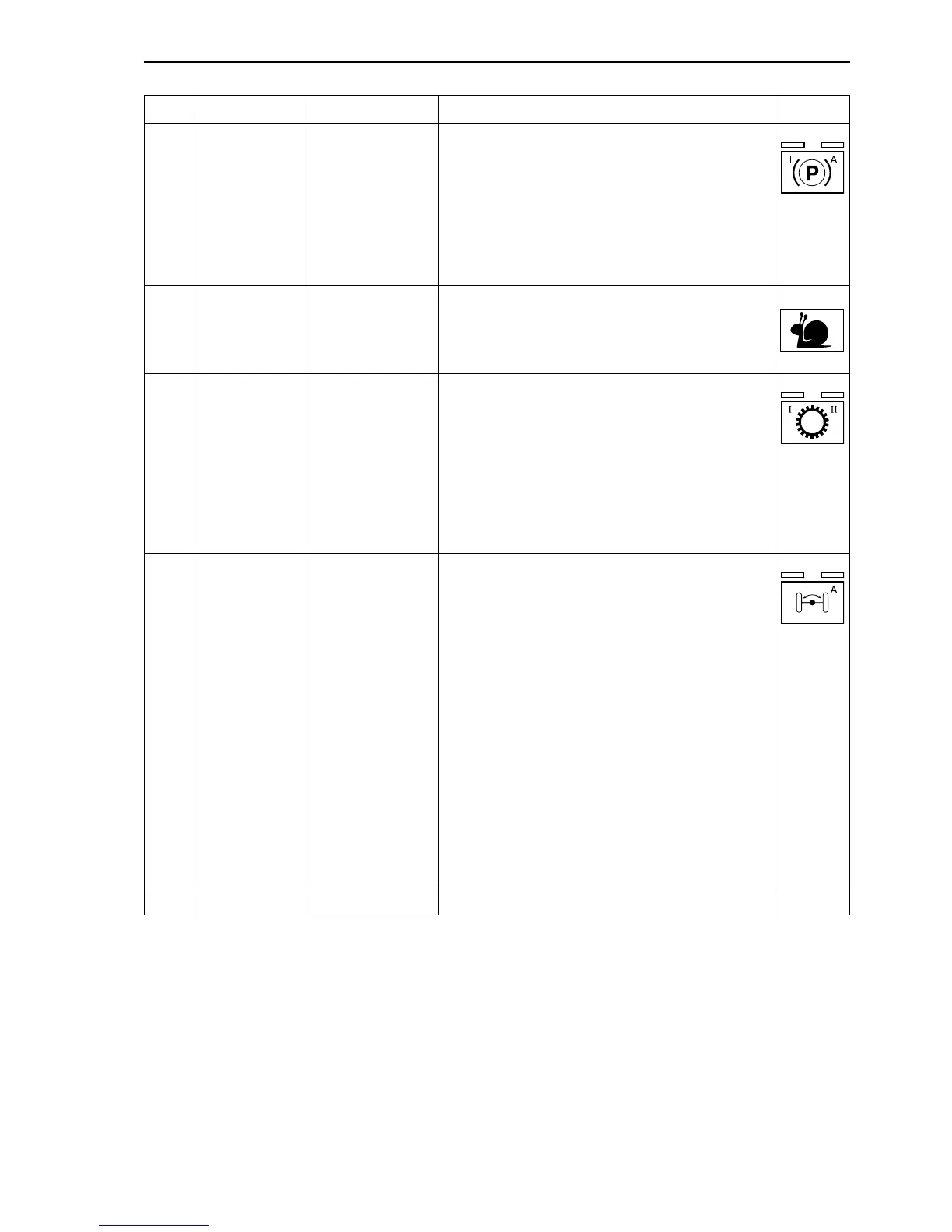

9 Push-button Parking brake
Push-button with two lights and three engagement
positions.
Left light on: brake permanently locked.
Left light off: brake permanently released.
Right light on: automatic mode (in 1st gear only).
The brake releases when the travel pedal is
pressed.
10 Push-button Creep speed
By pressing the symbol (the lamp and the symbol
light up) the creep gear engages.
By pressing the symbol again (the lamp and the
symbol turn off) the creep gear disengages.
11 Push-button Gearshift
Push-button with two lights and three engagement
positions.
Left light on and right light out: 1st gear engaged.
Left light out and right light on: 2nd gear engaged.
Lights off: the automatic gearshift mode is active.
By pressing the accelerator pedal, the machine
will move in 1st gear up to a certain speed, at
which the 2nd gear will engage.
12 Push-button
Floating axle
blocking
Push-button with two lights and three engagement
positions.
Left light off: floating axle locked.
Right light on: floating axle released.
Right light on (the button has been kept pressed
for at least two seconds): automatic mode.
If the machine is stopped, the current conditions
are saved.
Automatic mode
The axle is released when:
- the travel pedal is pressed and the excavator
starts moving;
- stabilizer legs are moved.
NOTE: the axle releases only if the safety lever is
in lowered position.
13 Display Multi-function Controls and monitoring of the machine functions.
Ref. Description Operation Symbol
