27-12
Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 27 Configuring Network Object NAT
Configuring Network Object NAT

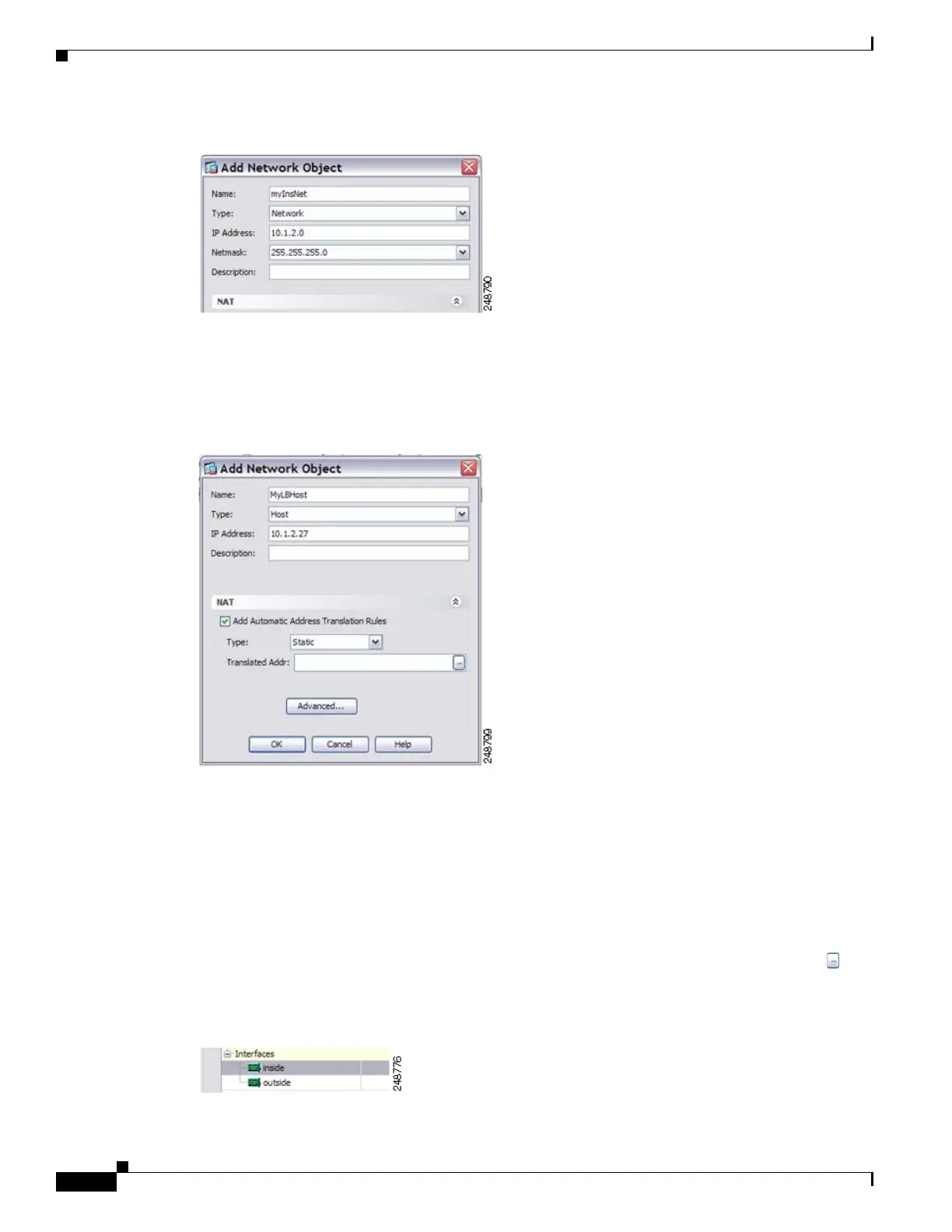

Figure 27-16 Defining the Object Addresses
Step 3
If the NAT section is hidden, click NAT to expand the section.
Step 4 Check the Add Automatic Translation Rules check box.
Step 5 From the Type drop-down list, choose Static.
Figure 27-17 Configuring NAT
Step 6
In the Translated Addr field, do one of the following:
• Type an IP address.
When you type an IP address, the netmask or range for the mapped network is the same as that of
the real network. For example, if the real network is a host, then this address will be a host address.
In the case of a range, then the mapped addresses include the same number of addresses as the real
range. For example, if the real address is defined as a range from 10.1.1.1 through 10.1.1.6, and you
specify 172.20.1.1 as the mapped address, then the mapped range will include 172.20.1.1 through
172.20.1.6.
• (For static NAT with port translation only) Type an interface name or click the browse button , and
choose an interface from the Browse Translated Addr dialog box.
Figure 27-18 Browse Dialog Box
