Chapter 27 Configuring Network Object NAT
Configuring Network Object NAT
For more information, see the “Configuring a Network Object” section on page 13-2.
The Add/Edit Network Object dialog box appears.
Step 2 For a new object, enter values for the following fields:
a. Name—The object name. Use characters a to z, A to Z, 0 to 9, a period, a dash, a comma, or an
underscore. The name must be 64 characters or less.
b. Type—Network, Host, or Range.
c. IP Address—An IPv4 address. IPv6 is not supported. If you select Range as the object type, the IP
Address field changes to allow you to enter a Start Address and an End address.
d. Netmask—Enter the subnet mask.
e. Description—(Optional) The description of the network object (up to 200 characters in length).

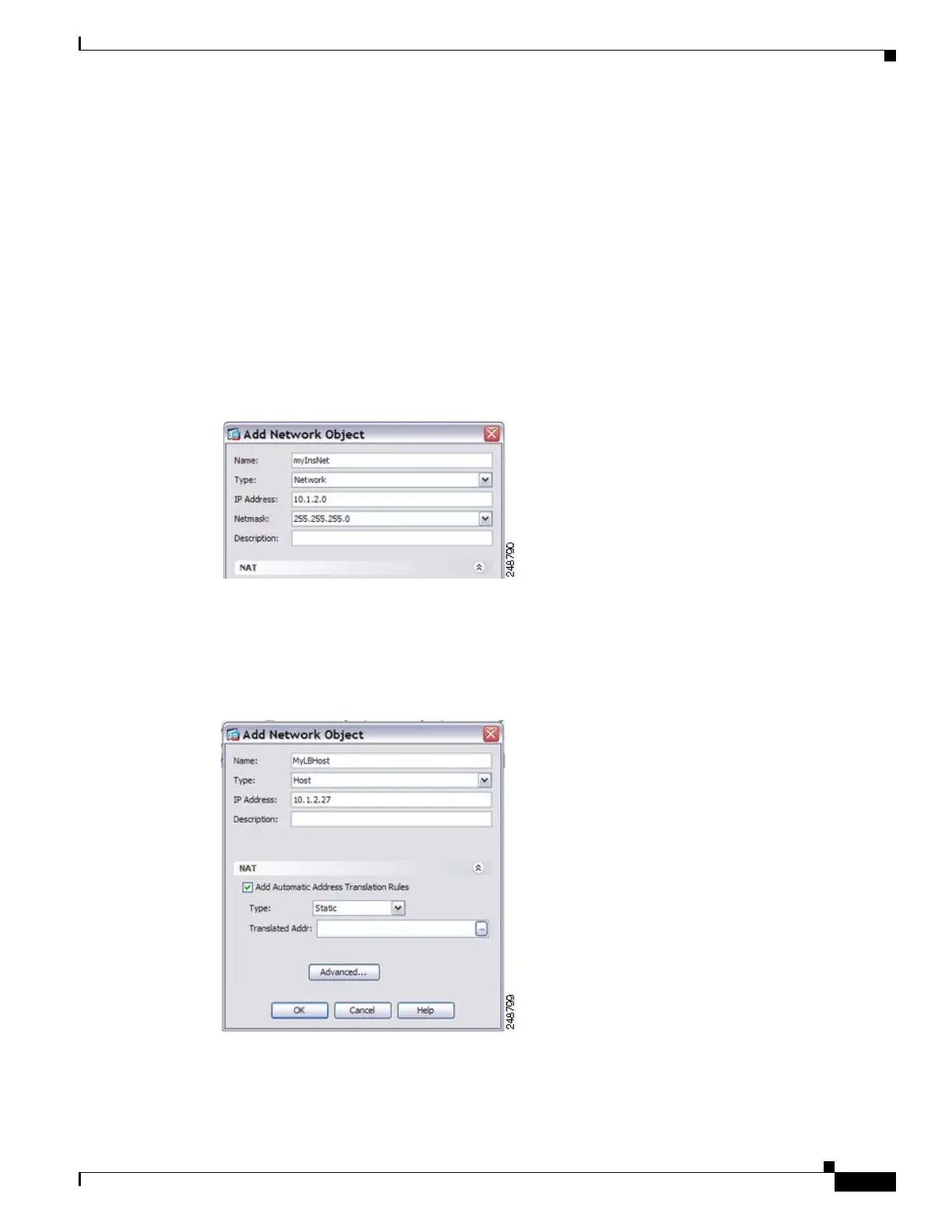

Figure 27-23 Defining the Object Addresses
Step 3
If the NAT section is hidden, click NAT to expand the section.
Step 4 Check the Add Automatic Translation Rules check box.
Step 5 From the Type drop-down list, choose Static.
Figure 27-24 Configuring NAT
Step 6
In the Translated Addr field, do one of the following:
• Type the same IP address that you used for the real address.
