27-16
Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 27 Configuring Network Object NAT
Configuring Network Object NAT
• Click the browse button , and choose a network object with a matching IP address definition from
the Browse Translated Addr dialog box. You can also create a new named object from the Browse
Translated Addr dialog box and use this object as the mapped address.

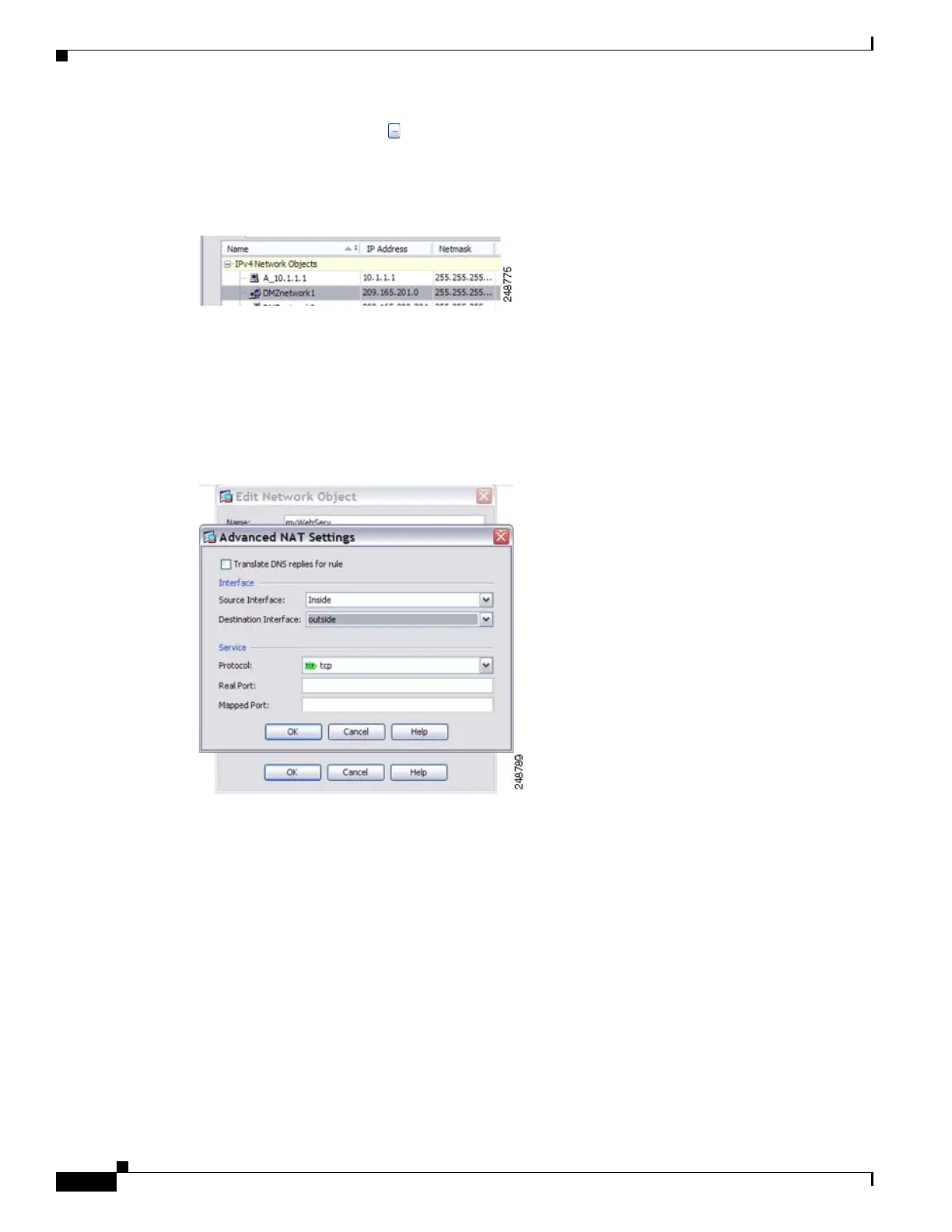

Figure 27-25 Browse Dialog Box
Step 7 (Optional) To specify the real and/or mapped interfaces where this NAT rule should apply, click
Advanced, and under Interface, choose the source and destination interfaces. By default, the rule applies
to all interfaces.
Do not configure any other options on this dialog box.
Click OK to return to the Add/Edit Network Object dialog box.
Figure 27-26 Configuring Interfaces
Step 8 Click OK, and then Apply.
Because static rules are bidirectional (allowing initiation to and from the real host), the NAT Rules table
show two rows for each static rule, one for each direction (see Figure 27-21).
