28-30
Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 28 Configuring Twice NAT
Configuration Examples for Twice NAT

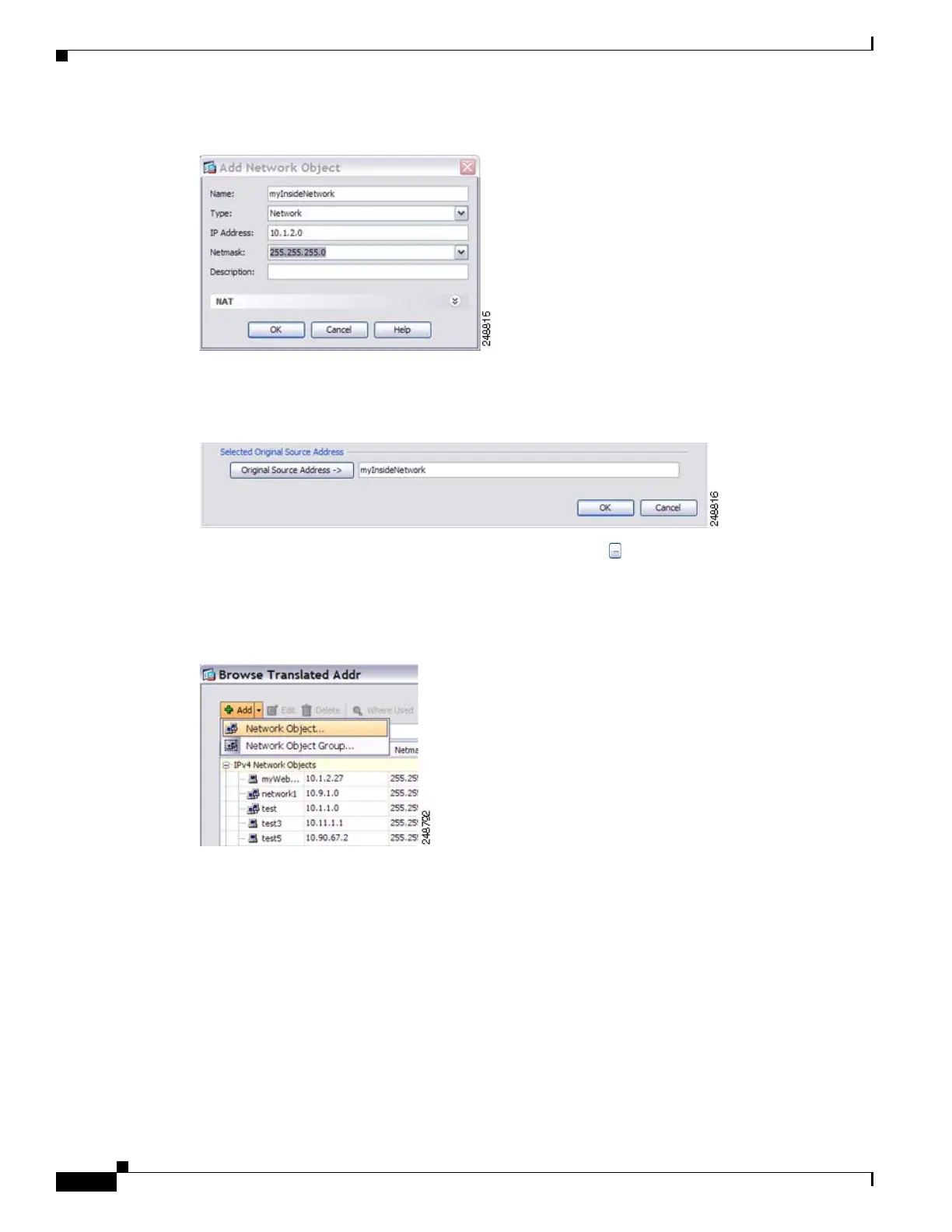

Figure 28-60 Defining the Inside Network Addresses
c.
Choose the new network object by double-clicking it. Click OK to return to the NAT configuration.
Figure 28-61 Choosing the New Network Object
Step 4
For the Original Destination Address, click the browse button to add a new network object for the
Telnet/Web server in the Browse Original Destination Address dialog box.
a. Add the new network object.
Figure 28-62 Adding a New Network Object for the Telnet/Web Server
b.
Define the server address, and click OK.
