28-32
Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 28 Configuring Twice NAT
Configuration Examples for Twice NAT

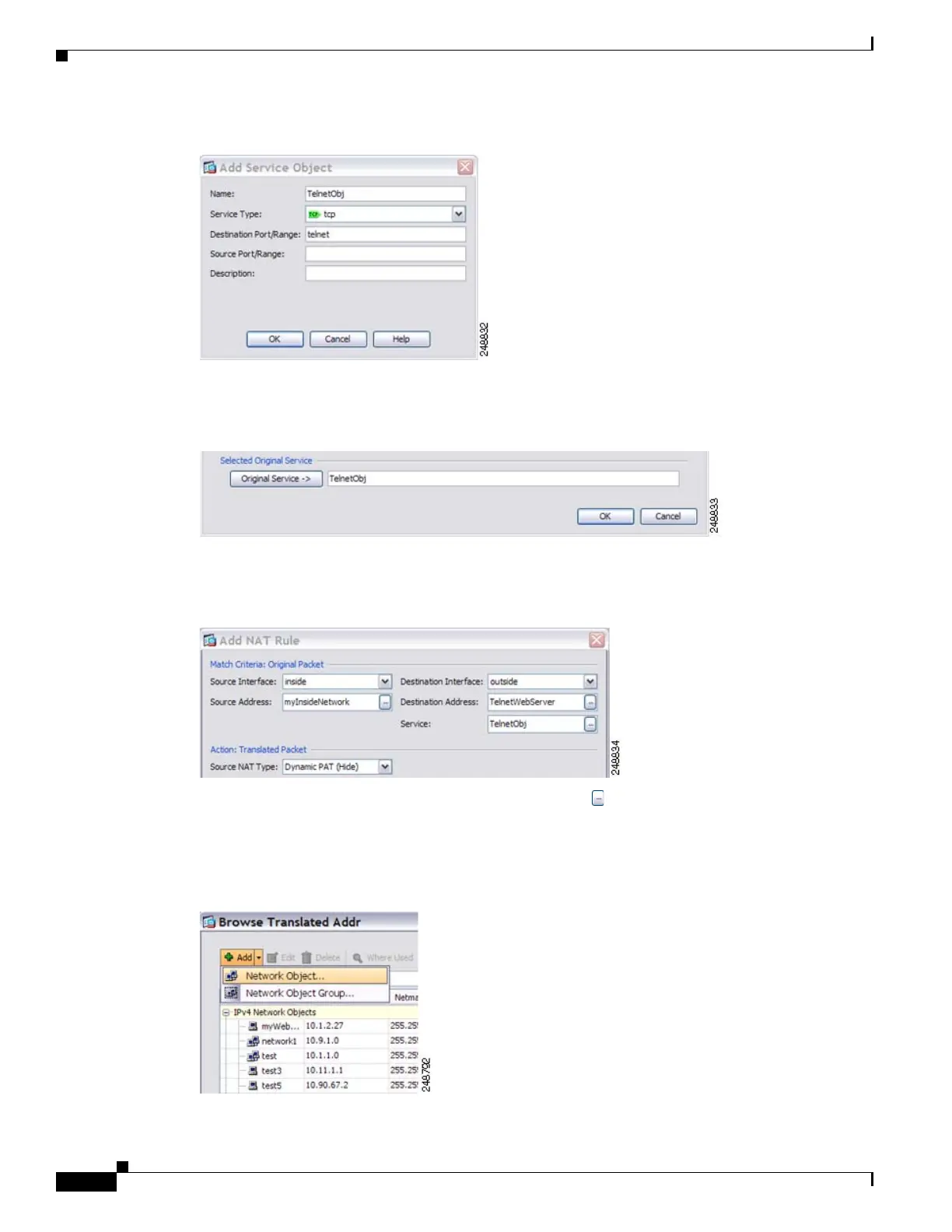

Figure 28-66 Defining the Protocol and Port
c. Choose the new service object by double-clicking it. Click OK to return to the NAT configuration.
Figure 28-67 Choosing the New Service Object
Step 6
Set the NAT Type to Dynamic PAT (Hide):
Figure 28-68 Setting the NAT Type
Step 7
For the Translated Source Address, click the browse button to add a new network object for the PAT
address in the Browse Translated Source Address dialog box.
a. Add the new network object.
Figure 28-69 Adding a New Network Object for the PAT Address
