Cisco ONS 15454 - Page 189

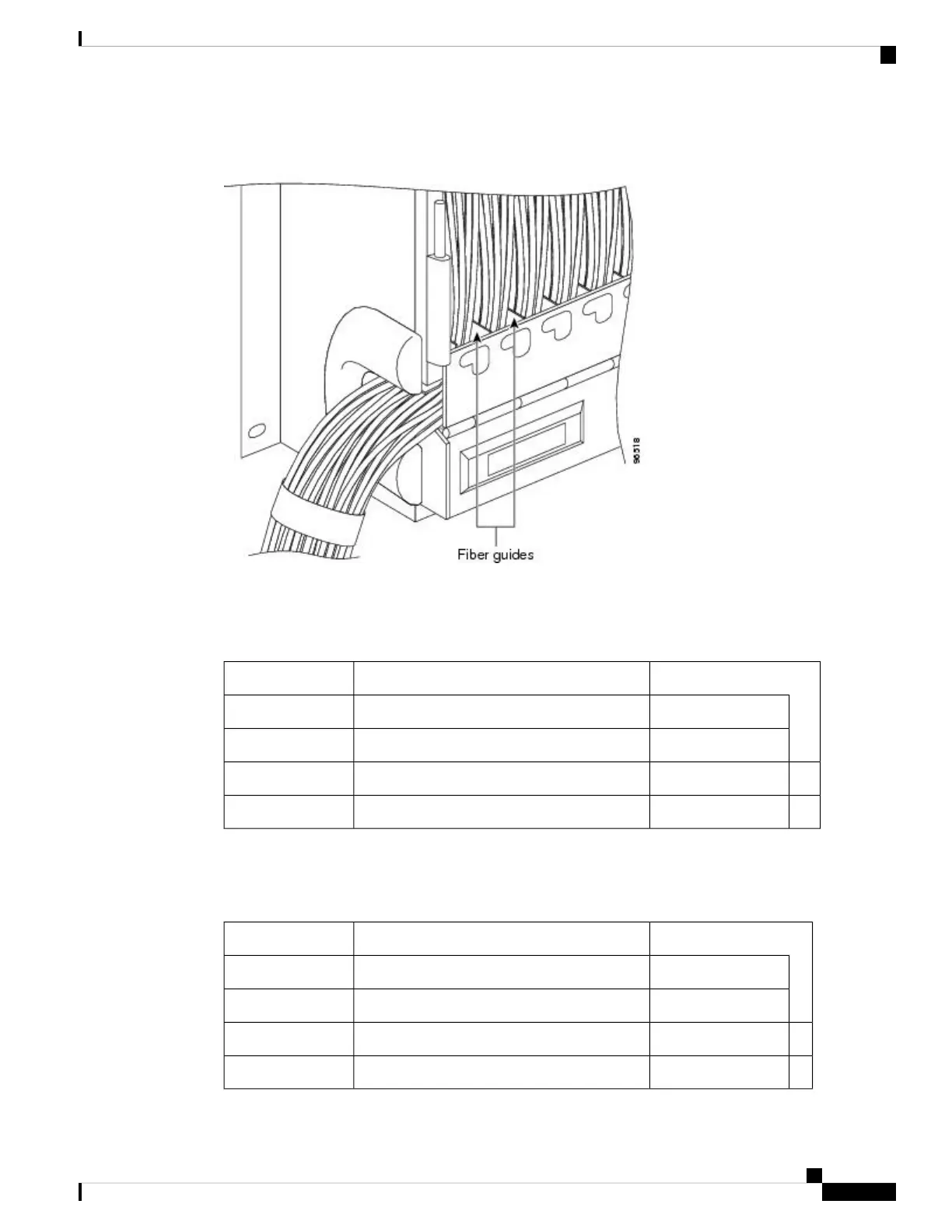

Figure 72: Fiber Capacity
The following table provides the maximum capacity of the fiber channel for one side of an ANSI shelf,
depending on fiber size and number of Ethernet cables running through that fiber channel.
Table 26: ANSI Fiber Channel Capacity (One Side of the Shelf)
Maximum Number of Fibers Exiting Each SideFiber Diameter
Two Ethernet CablesOne Ethernet CableNo Ethernet Cables
110
1271440.6 inch (1.6 mm)
7080900.7 inch (2 mm)
3236400.11 inch (3 mm)
The following table provides the maximum capacity of the fiber channel for one side of an ETSI shelf,
depending on fiber size and number of Ethernet cables running through that fiber channel.
Table 27: ETSI Fiber Channel Capacity (One Side of the Shelf)
Maximum Number of Fibers Exiting Each SideFiber Diameter
Two Ethernet CablesOne Ethernet CableNo Ethernet Cables
94
1101260.6 inch (1.6 mm)
6070800.7 inch (2 mm)
2631360.11 inch (3 mm)
Cisco ONS 15454 Hardware Installation Guide
159
Installing the ONS 15454 M12 (ANSI and ETSI) Shelf
Fiber Management
