Cisco ONS 15454 - DLP-G589 Mount the ONS 15454 M2 Shelf on a Rack (One Person)

Step 10 Align the screw holes on the mounting bracket with the screw holes on the left side of the chassis.
Step 11 Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 12 Place the left top air deflector flush against the left side of the chassis as shown in Diagram 3 of Figure 129:
Mounting the Bracket with Air Deflectors (Front-to-Top) on the ONS 15454 M2 Shelf for ETSI Rack
Configuration, on page 209.
If the 100G-LC-C, 10x10G-LC, or CFP-LC cards are to be installed in the ONS 15454 M2 shelf,
do not mount the left top deflector (exhaust air deflector). Use the standard brackets directly to
mount the ONS 15454 M2 shelf.
Note
Step 13 Align the screw holes with the screw holes of the mounting bracket and the chassis.
Step 14 Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m). See Diagram 4 of Figure 129:
Mounting the Bracket with Air Deflectors (Front-to-Top) on the ONS 15454 M2 Shelf for ETSI Rack
Configuration, on page 209.

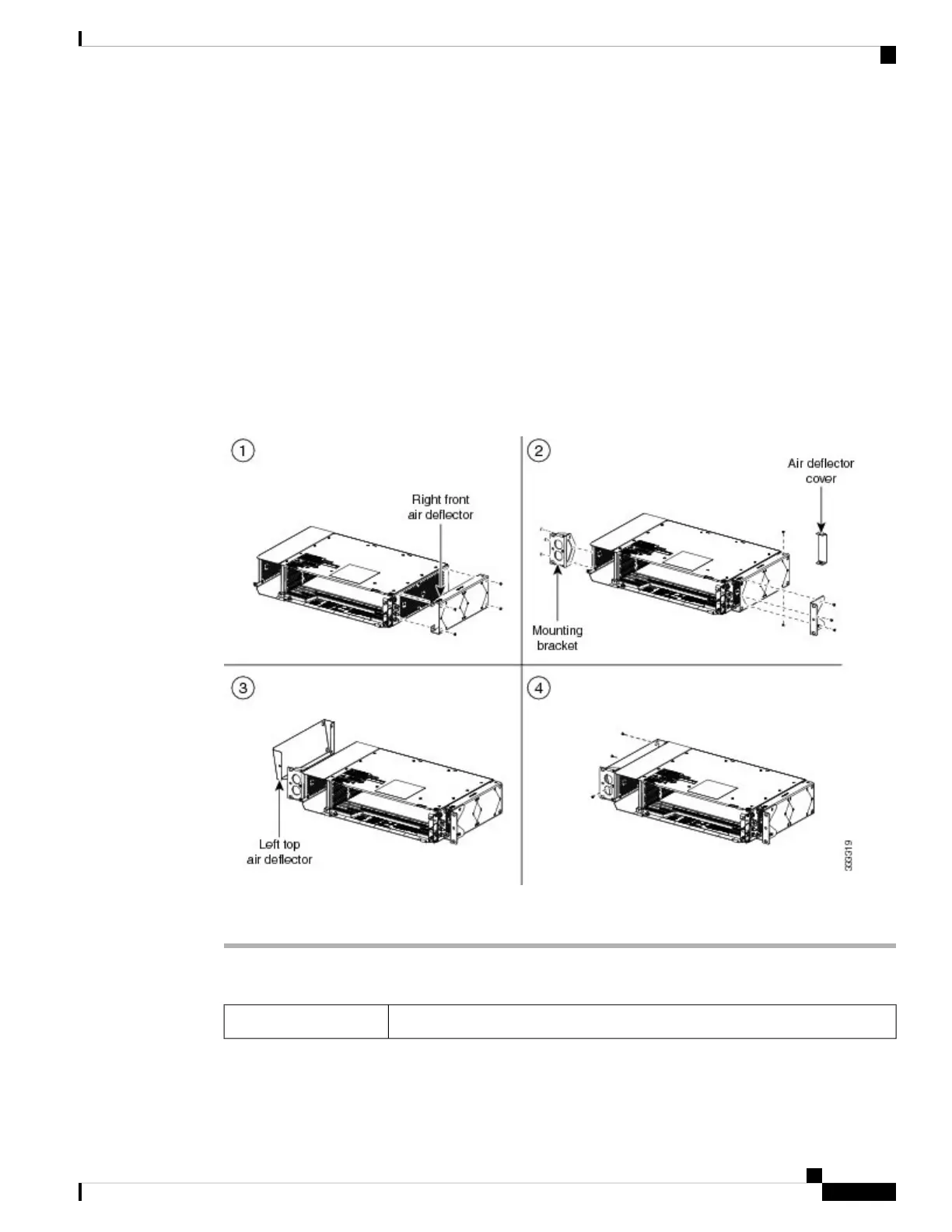

Figure 129: Mounting the Bracket with Air Deflectors (Front-to-Top) on the ONS 15454 M2 Shelf for ETSI Rack Configuration
Step 15 Return to your originating procedure (NTP).
DLP-G589 Mount the ONS 15454 M2 Shelf on a Rack (One Person)
This task allows one person to mount the shelf in a rack.Purpose
Cisco ONS 15454 Hardware Installation Guide
209
Installing the ONS 15454 M2 Shelf
DLP-G589 Mount the ONS 15454 M2 Shelf on a Rack (One Person)
