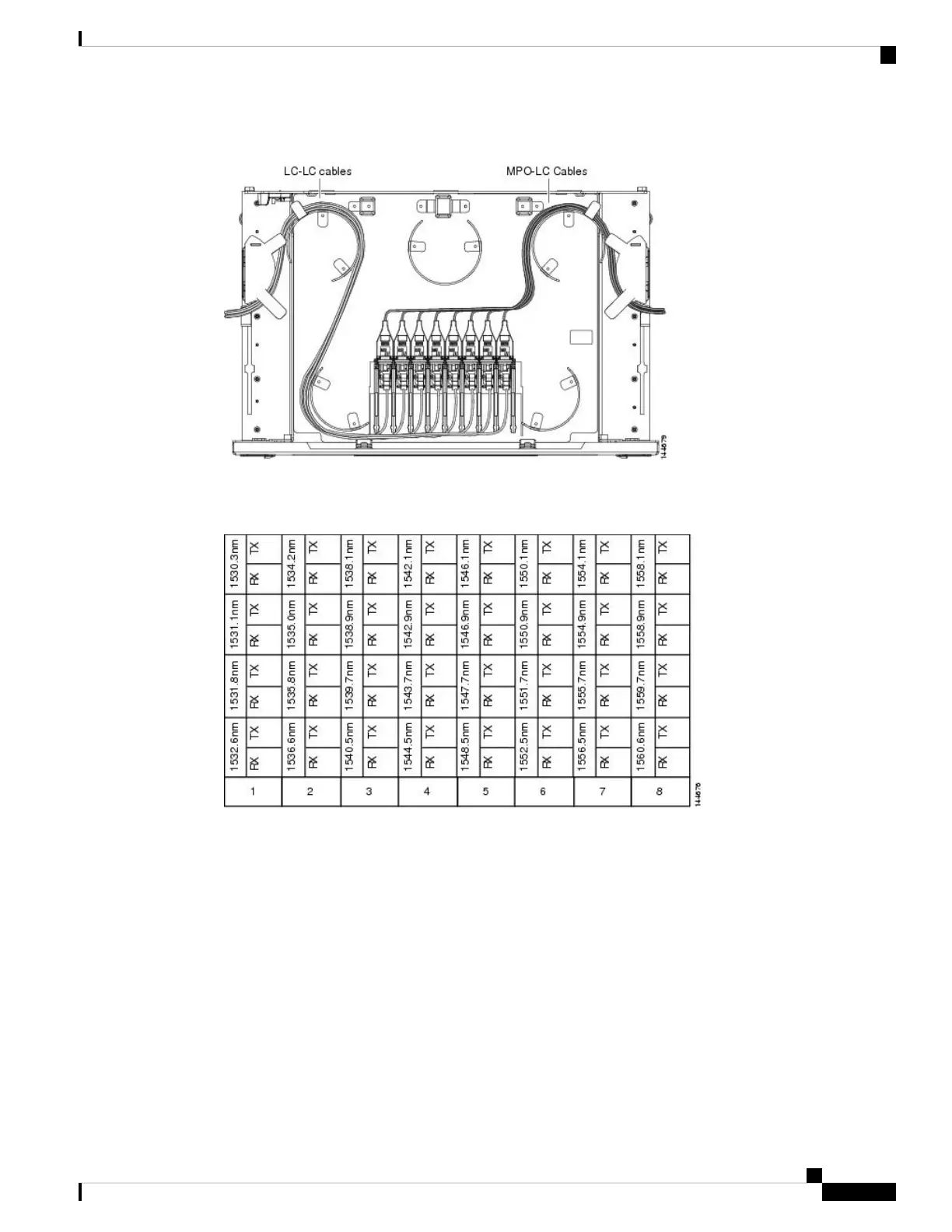

Figure 74: Deep Patch-Panel Tray
The following figure shows the label on the patch panel that identifies the wavelength for each port.
Figure 75: Patch-Panel Port Wavelength
40-Channel Patch-Panel Tray
The 40-channel patch panel tray is 2 RUs deep and comes preinstalled with MPO-LC cables. The 40-channel
patch-panel tray can host up to 10 ribbon cables (with eight fibers each), for a total of 80 connections, and is
used with expanded ROADM, terminal, hub, and mesh nodes. Expanded hub and ROADM nodes will typically
require two 40-channel patch-panel modules each; terminal nodes require one 40-channel patch-panel tray;
and one 40-channel patch-panel tray is needed for mesh nodes for each direction.
The module fits 19- and 23-inch (482.6-mm and 584.2-mm) ANSI racks and 600 mm (23.6 inch) x 300 mm
(11.8 inch) ETSI racks, using reversible brackets.
The following figure shows a 40-channel patch-panel tray.
Cisco ONS 15454 Hardware Installation Guide
161
Installing the ONS 15454 M12 (ANSI and ETSI) Shelf
40-Channel Patch-Panel Tray
