Cisco ONS 15454 - ONS 15454 ANSI Alarm, Timing, LAN, and Craft Pin Connections

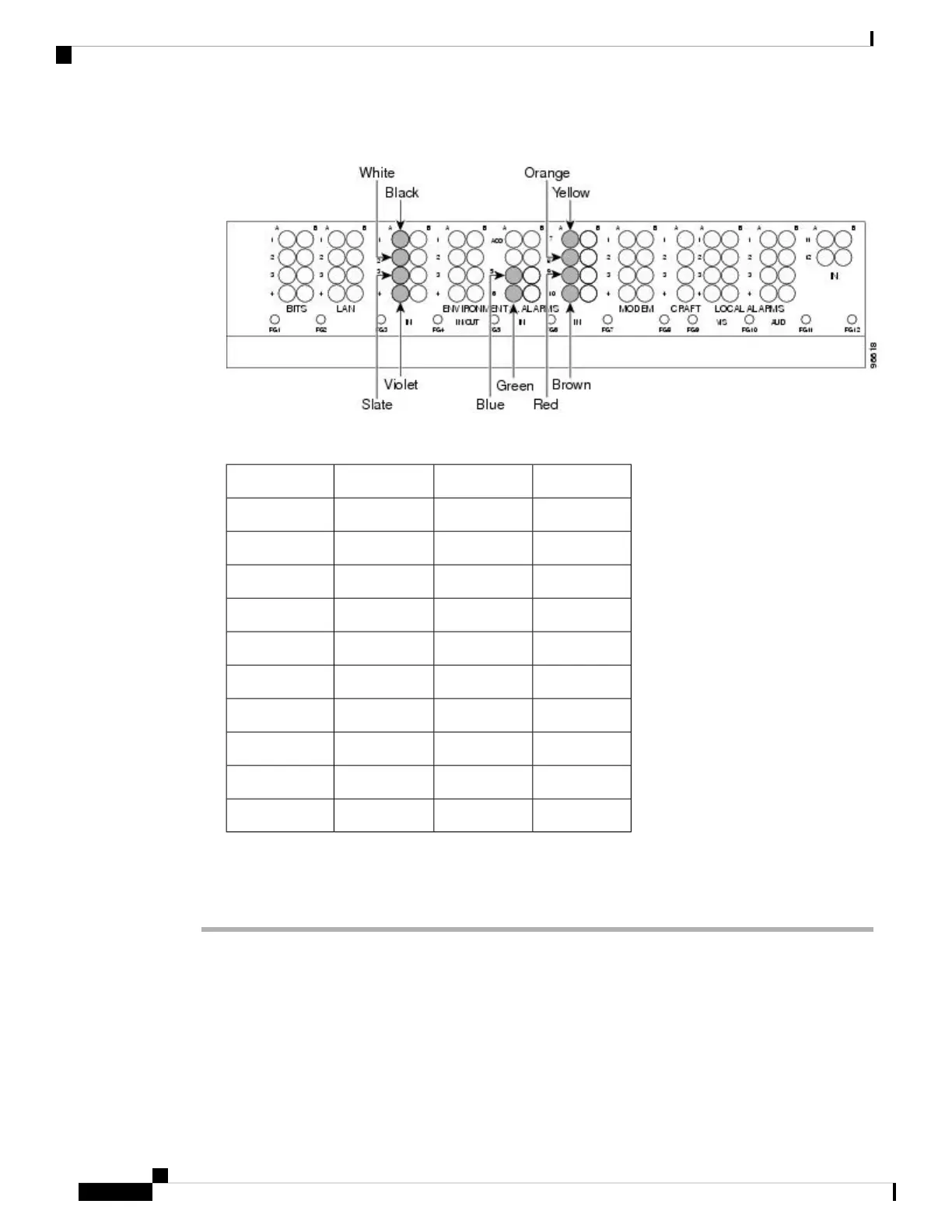

Figure 51: AEP Wire-Wrap Connections to Backplane Pins
Table 11: Pin Assignments for the AEP
AEP SignalAIC-I SignalBackplane PinAEP Cable Wire
AEP_GNDGNDA1Black
AEP_+5AE_+5A2White
VBAT–VBAT–A3Slate
VB+VB+A4Violet
AE_CLK_PAE_CLK_PA5Blue
AE_CLK_NAE_CLK_NA6Green
AE_DOUT_PAE_DIN_PA7Yellow
AE_DOUT_NAE_DIN_NA8Orange
AE_DIN_PAE_DOUT_PA9Red
AE_DIN_NAE_DOUT_NA10Brown
Step 6 Continue with the ONS 15454 ANSI Alarm, Timing, LAN, and Craft Pin Connections, on page 94.
Stop. You have completed this procedure.
ONS 15454 ANSI Alarm, Timing, LAN, and Craft Pin Connections
Pin connections are provided on the ONS 15454 ANSI backplane. For information about ONS 15454 ETSI
connections, see the ONS 15454 ETSI Front Mount Electrical Connection, on page 65.
