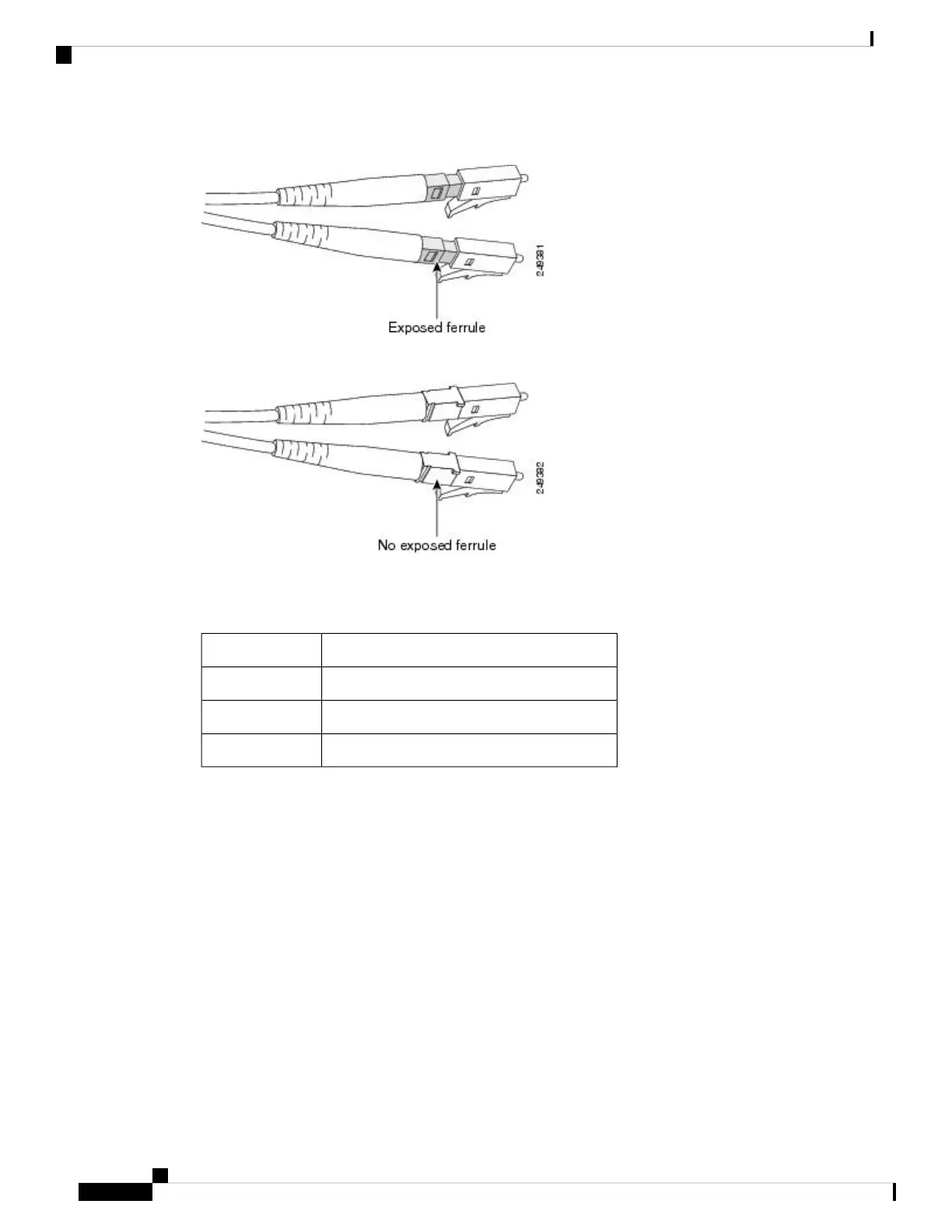

Figure 97: Optical Fiber With Exposed Ferrule
Figure 98: Optical Fiber Without Exposed Ferrule
The following table provides the fiber capacity for each tray.
Table 28: Fiber-Storage Tray Capacity
Maximum Number of Fibers Exiting Each SideFiber Diameter
620.6 inch (1.6 mm)
480.7 inch (2 mm)
320.11 inch (3 mm)
The following figure shows an example of a fiber-management tray with fiber-optic cables routed through it.
You can route cables around the cable rounders, entering and exiting from either side, as necessary. Route
fibers as necessary for your site configuration.
Cisco ONS 15454 Hardware Installation Guide
174
Installing the ONS 15454 M12 (ANSI and ETSI) Shelf
Fiber Management Using the Fiber-Storage Tray
