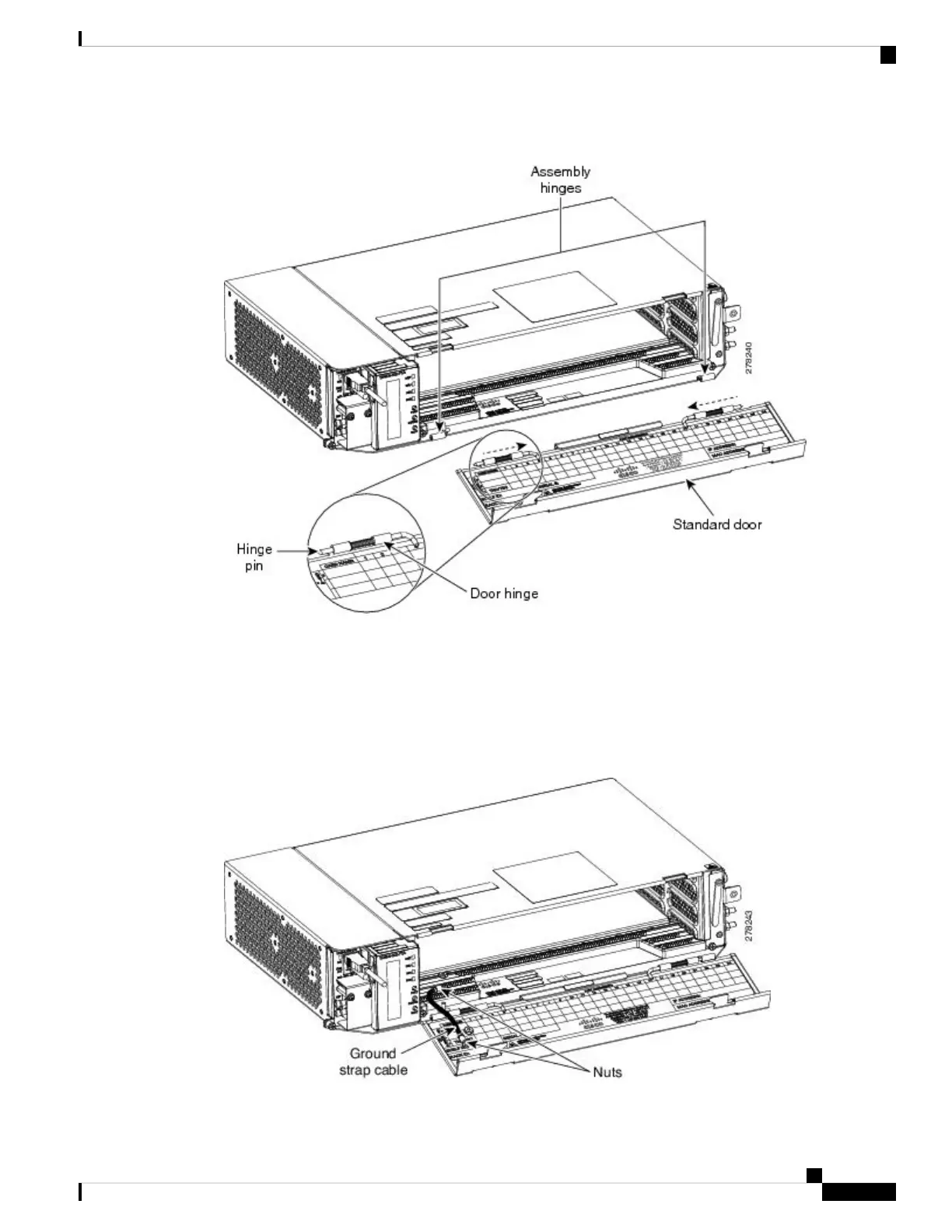

Figure 136: Installing the Standard Door
Step 2 Align the standard door hinges with the chassis hinges.
Step 3 Release the hinge pins.
Reinstall the door after installing all the other modules.
Note
Step 4 Place the ground strap cable on the door and the chassis and tighten the nuts.
Figure 137: Ground Strap Cable—Standard Door
Cisco ONS 15454 Hardware Installation Guide
217
Installing the ONS 15454 M2 Shelf
NTP-G269 Install the Standard Door of the ONS 15454 M2 Shelf
