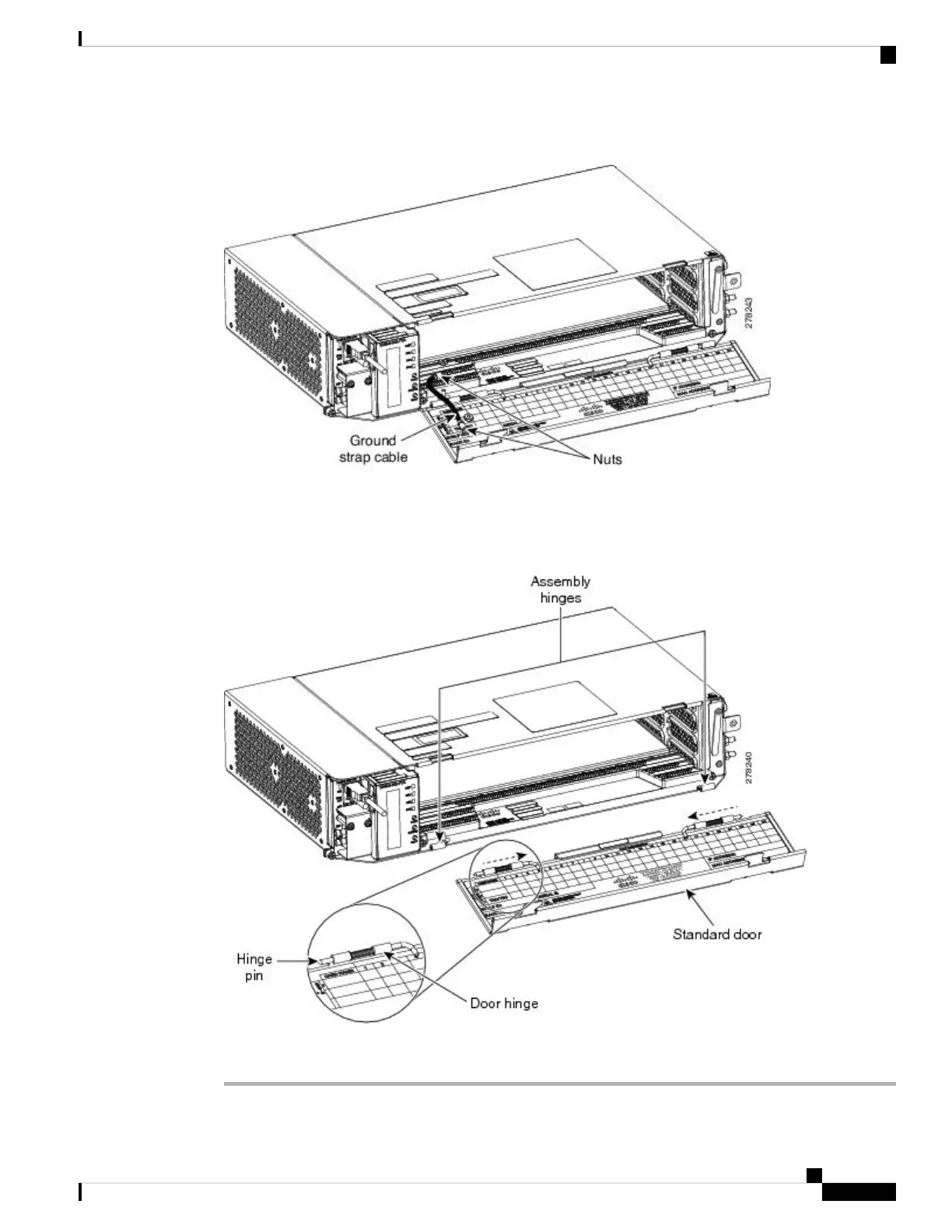

Figure 141: Removing the Standard Door
Step 3 Pull the hinge pins holding the door to the chassis, in the opposite direction.
Step 4 Remove the door from its hinges as shown in the following figure.
Figure 142: Removing the Standard Door
Step 5 Return to your originating procedure (NTP).
Cisco ONS 15454 Hardware Installation Guide
221
Installing the ONS 15454 M2 Shelf
DLP-G595 Remove the Standard Door of the ONS 15454 M2 Shelf
