The 15454-M2-FTA2 is compatible with R9.2.0 and later releases.
Note
Do not operate an ONS 15454 M2 shelf without an air filter. For information on the air filter, see NTP-G114
Inspect and Replace the Air Filter, on page 435.
Caution
Do not force a fan-tray module into place. Doing so can damage either the connectors on the fan-tray or the
connectors on the backpanel of the shelf, or both.
Caution
Error messages appear on the TNC, TNCE, TSC, or TSCE card, the fan-tray LED, and in the Cisco Transport
Controller (CTC) when the fan-tray module is removed from the shelf or when one fan is not working.
Note
During the system startup or fan-tray replacement, the inventory data of the fan-tray assembly and the power
module is displayed in the Inventory tab of CTC after a delay of approximately 6 minutes.
Note
To install the fan-tray assembly, it is not necessary to move any of the fiber-routing facilities.
Note
Procedure
Step 1 Insert the fan-tray assembly in Slot B of the ONS 15454 M2 chassis (see the following figure).

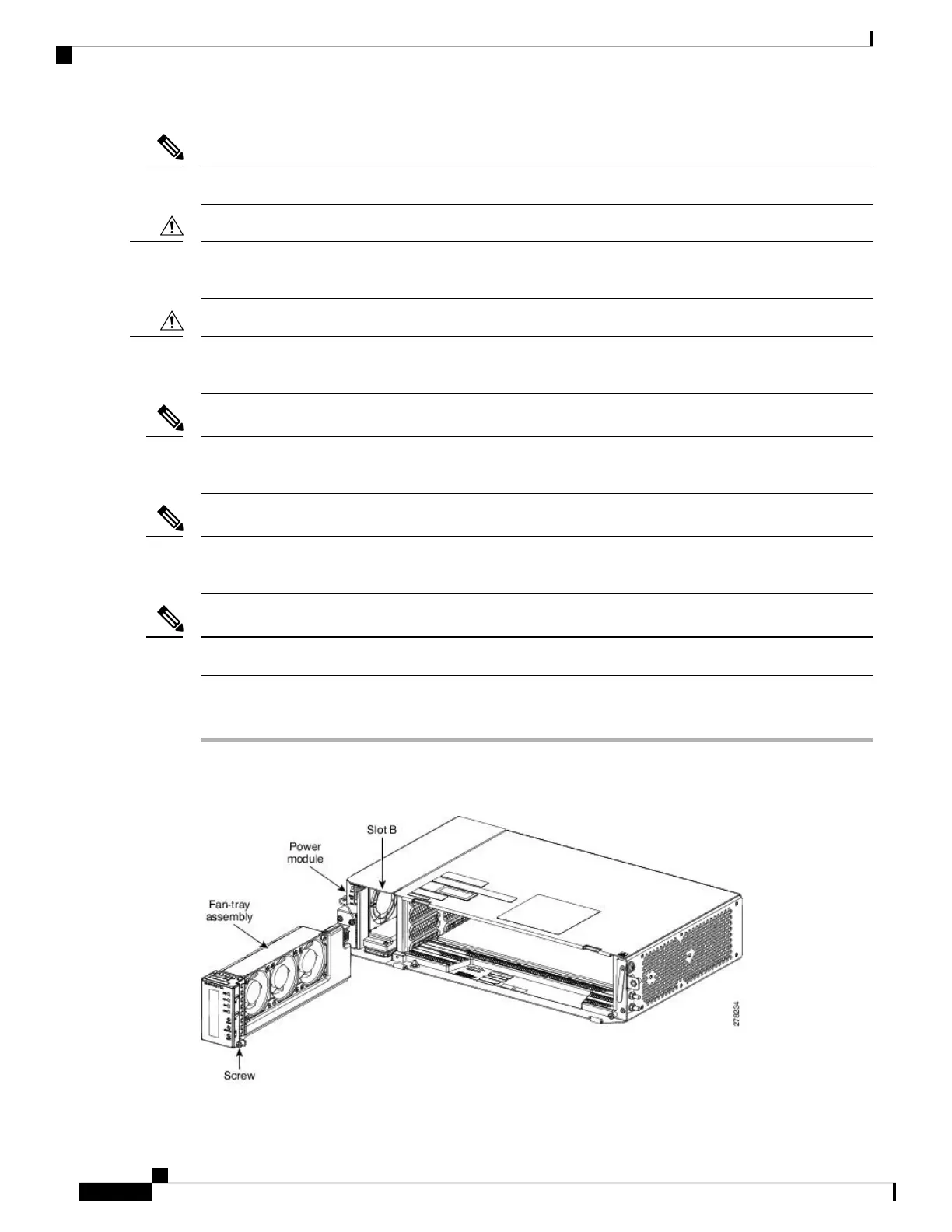

Figure 158: Installing the Fan-Tray Assembly
Cisco ONS 15454 Hardware Installation Guide
236
Installing the ONS 15454 M2 Shelf
NTP-G268 Install the Fan-Tray Assembly in the ONS 15454 M2 Shelf
