Upgrading The Computer
6 - 32 Upgrading the Video Card
6
4. Fit the connectors firmly into the socket, straight and evenly.
5. DO NOT attempt to push one end of the card in ahead of the other.
6. The card’s pin alignment will allow it to only fit one way. Make sure the module is
seated as far into the socket as it will go (none of the gold colored contact
should be showing). DO NOT FORCE the card; it should fit without much
pressure.

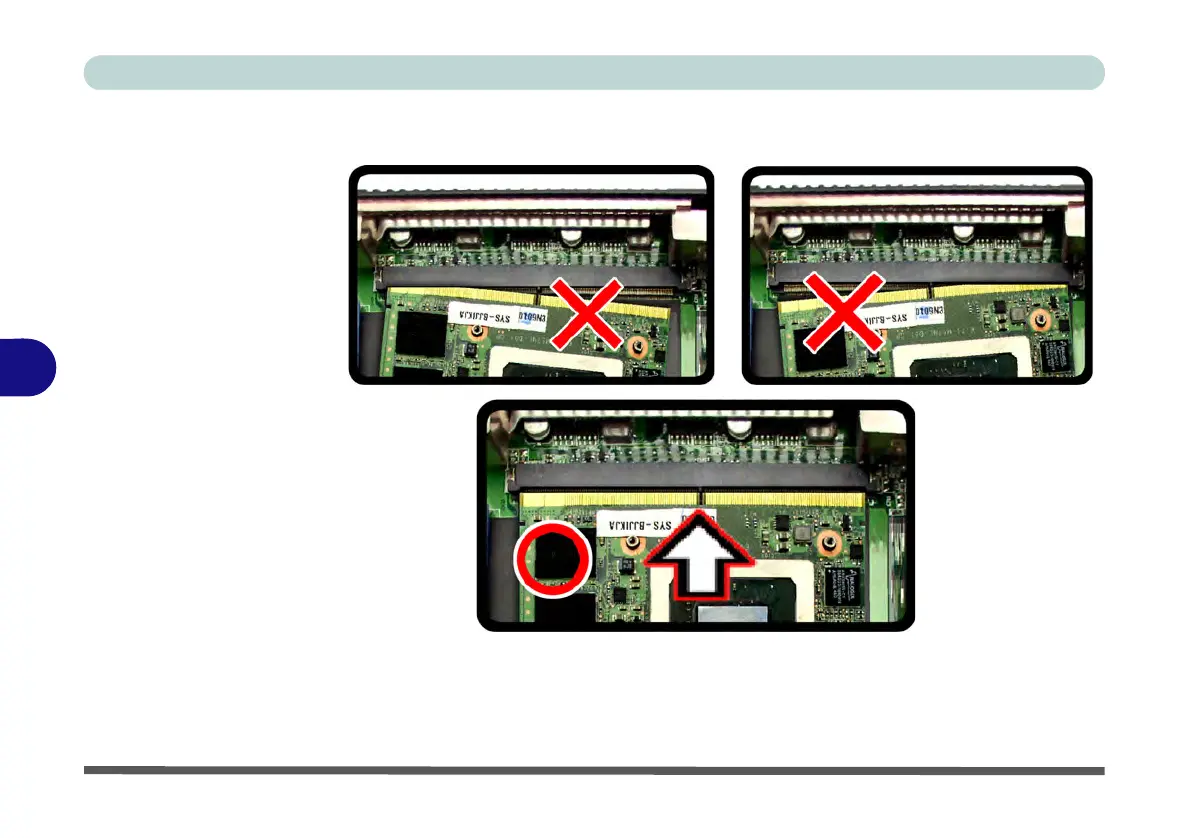

Figure 6 - 36
Video Card Insertion
Procedure
