RAID Setup (Windows 8) F - 57
Windows 8
Windows 8
16. Go to RAID Level: and press <Enter>.
17. Choose the RAID Level required (see Table F - 4, on page F - 54 for details) and press <Enter>.
• RAID0 (Stripe)
• RAID1 (Mirror)
• RAID5 (Parity)
• Recovery
18. Go to any of the disks listed under Select Disks: and select a disk name and press <Enter>.
19. Move the cursor down (use the arrow keys) onto to X (o select the disk required and press <Enter>.
• If you have selected a Recovery level RAID then you need to select one disk to be Master disk (M) and one
disk to be the Recovery disk (R)

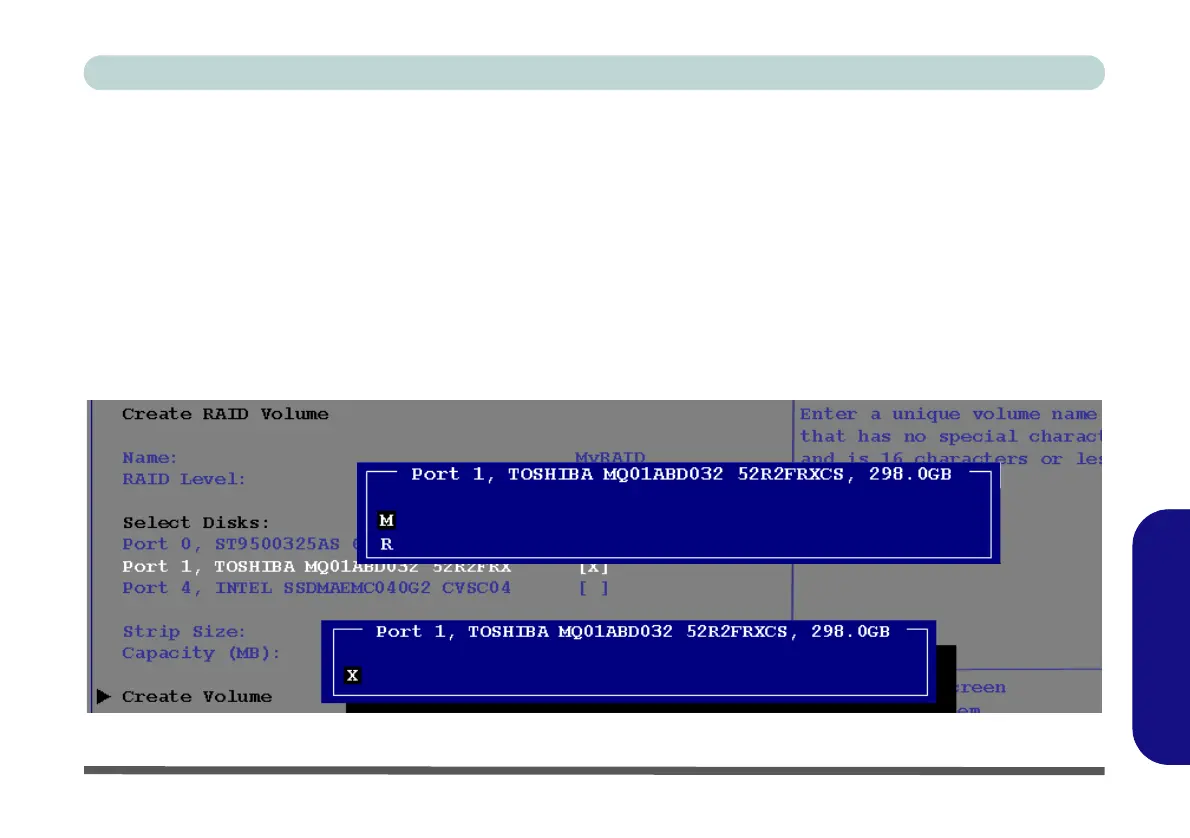

Figure F - 48 - Select Disks (Advanced > Intel(R) Rapid Storage Technology)
For Stripe, Mirror or Parity
To Next Page
