OPERATING THE TRANSCEIVER
DATA OPTIONS
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 93

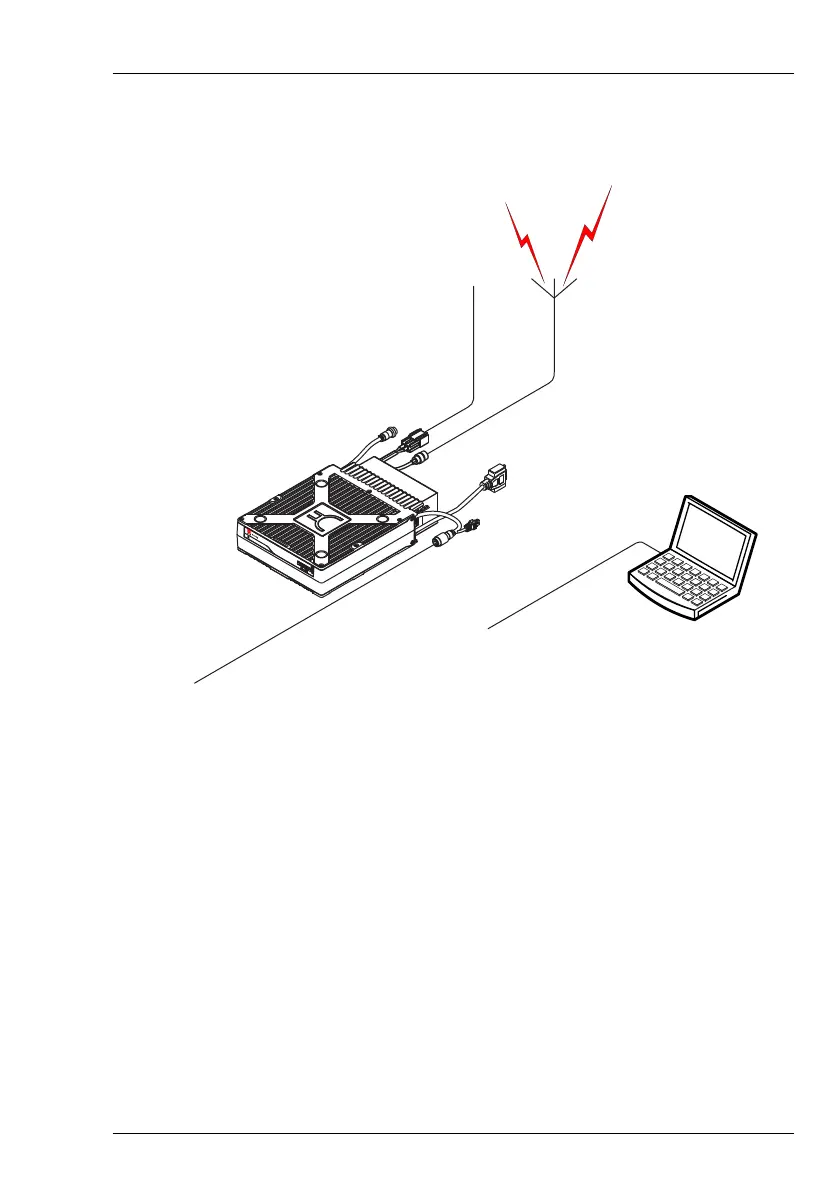

Figure 23: Envoy X2 Transceiver with MIL/STANAG 2G Data
via VCOM over USB cable
CAUTION: When VCOM is used over the USB cable
(08-07214-001), the RFU 6way MIL/STANAG 2G
Data and RFU 15way MIL/STANAG 2G Data
peripheral devices must not be selected on the respective
ports.
CAUTION: Data transmitted via a VCOM session over a USB–USB
connection may be affected by your computer’s
power-saving activities. Either disable the power-saving
mode while data is being transmitted, or verify that the
data has been sent correctly when the computer wakes
from power-saving mode.
antenna
system
to power supply
RF Unit
™
Type 2210
Serial No.
to control point
08-06022-00x (handset)
08-07205-00x (desk console)
to handset or desk console
08-07214-001
(USB A to micro USB)
computer with
RC50-C HF Email
software
2210 RFU with MIL/STANAG
2G Data Interface
