OPERATING THE TRANSCEIVER
USING DIGITAL VOICE
70 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE

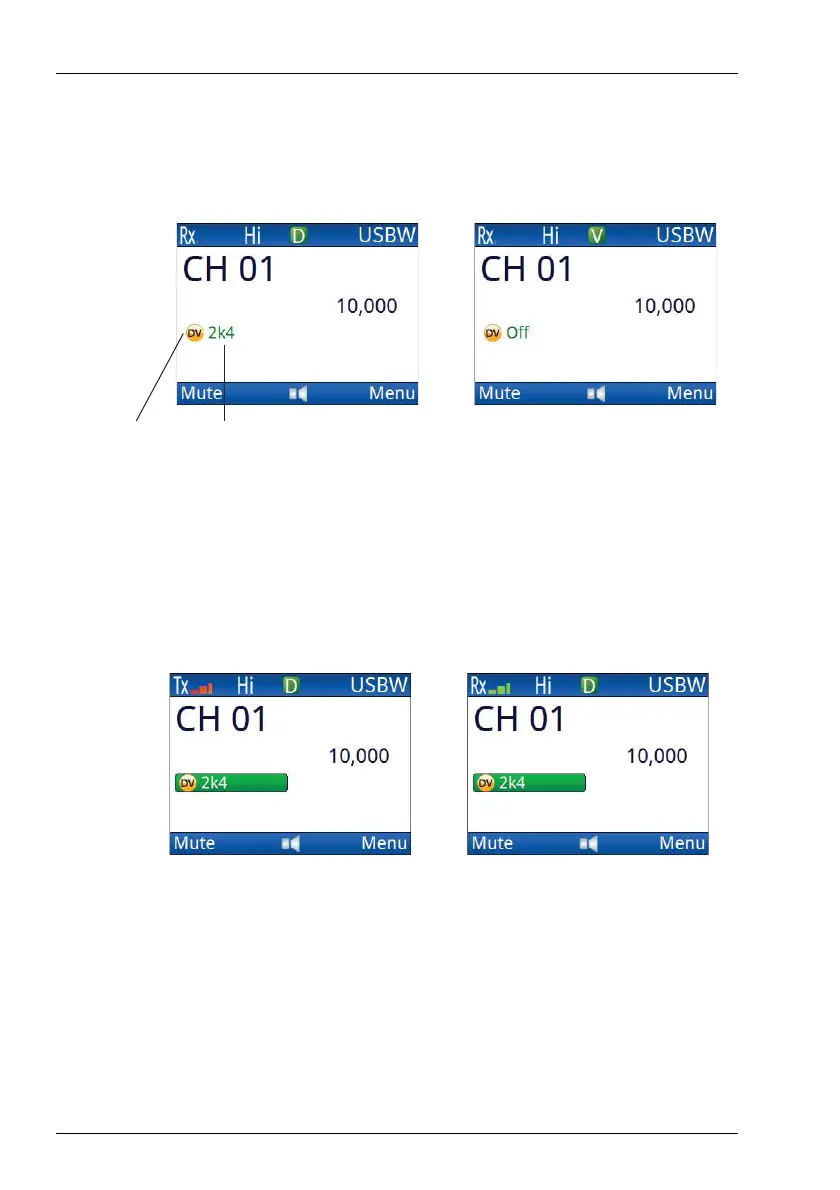

Figure 17: Channel screen showing on/off status for a DV
option (without encryption)
Figure 18: Channel screen showing transmit/receive status for
a DV option (without encryption)
CAUTION: If RC50-C is active in a data link and you enable
voice mode or press PTT, wait for up to 25 sec
before continuing with the digital voice
transmission. The receiving station needs this
time to regain digital voice synchronisation.
NOTE: When transmitting via a DV option, listen for the
Tx ready beep after you have released PTT before
you hold PTT again.
Digital voice (in Rx) Analogue voice (in Rx)
digital voice
data rate
icon for
DV option
Transmit (digital voice active) Receive (digital voice active)
