INTRODUCTION
THE 2230 DESK CONSOLE
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 7
The 2230 Desk Console
The 2230 Desk Console is a control point for the Envoy Transceiver.
The user interface provides an icon-based menu structure for easy setup
and operation of the transceiver. The desk console is standard for a fixed
station.

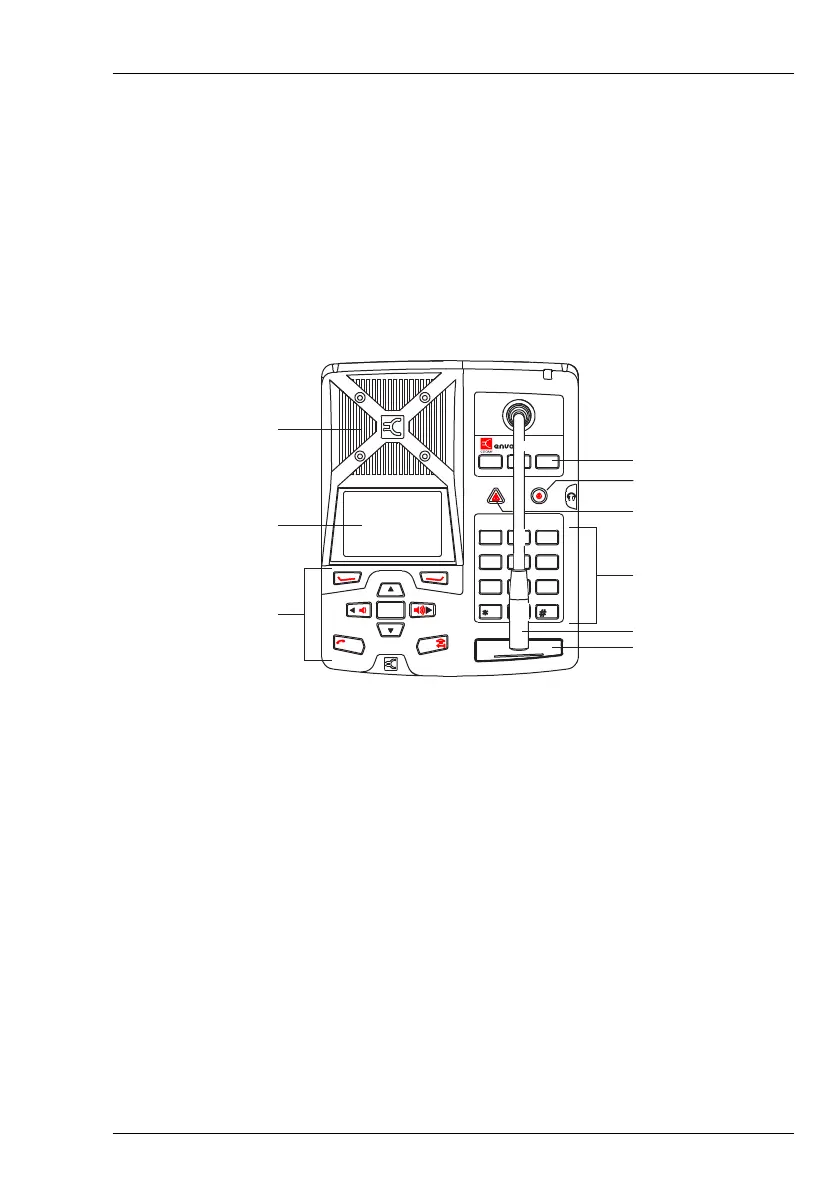

Figure 3: 2230 Desk Console
The 2230 Desk Console has an optional boom microphone, a built-in
speaker, a PTT button, a screen, navigation keys, function keys, and
numeric keys. The desk console also supports the use of headphones, a
foot-switched PTT device, and a separate hand microphone with PTT.
The keypad enables you to control and configure the transceiver system
via the user interface.
The 2230 Desk Console is shipped from the factory with standard hot
keys programmed to the numeric keys. The function that each standard
hot key performs is written on the numeric key in
BLUE text. New
user-defined functions may be assigned to most of the keys.
Related links:
Keypad on page 8
Navigating the menu structure on page 127
FUNC
ABC
2
Desk Console
F1 F2 F3
MODE
DEF
31
TUNE
FREE Rx
GHI
4
MNO
6
WXYZ
9
V/S
PQRS
7
EASI
TAL K
VIEW
0
SEC
TUV
8
JKL
5
SCAN
CALL
OK
GPS
speaker
boom microphone
function keys
Power key
Emergency key
numeric keys
PTT
screen
navigation and
software keys
