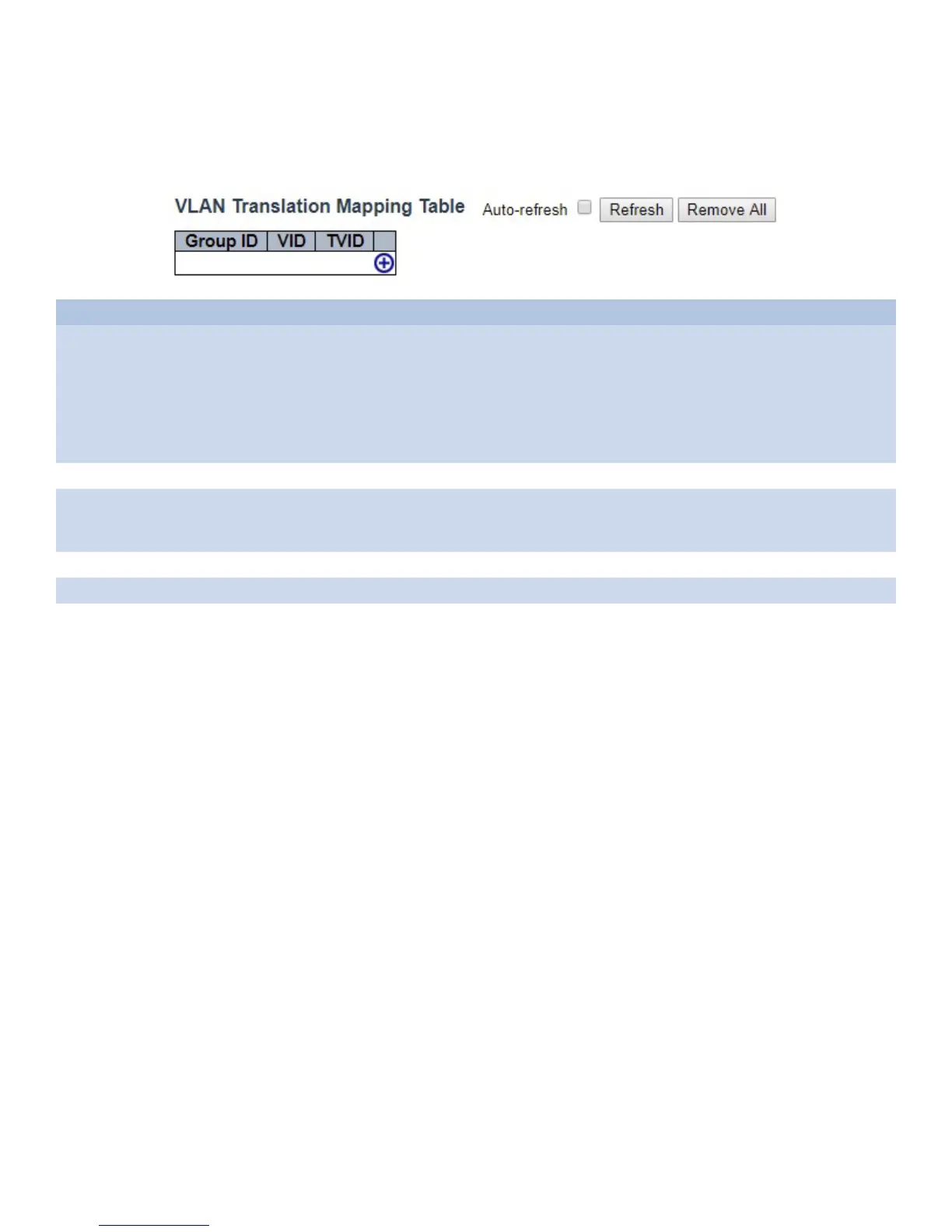

VLAN Translation Mappings
This page displays current VLAN Translation mapping configurations. The settings can also be
configured here.
Object Description
Group ID The VLAN Translation mappings are organized into Groups, identified by the Group ID. This way a port
is configured to use a number of VLAN Translation mappings easily by simply configuring it to use a
given group. Then number of possible groups in a switch is equal to the number of ports present in
this switch. A port can be configured to use any of the groups, but only one at any given time. Multiple
ports can be configured to use the same group. A valid Group ID is an integer value from 1 to 1111.
Note: By default, each port is set to use the group with Group ID equal to the port number. For
example, port #1 is by default set to use group with GID = 1.
VID Indicates the VLAN of the mapping (i.e. 'source' VLAN). A valid VLAN ID ranges from 1 to 4095.
TVID Indicates the VLAN ID to which VLAN ID of an ingress frame will be translated to (granted that the
mapping is enabled on the ingress port that the frame arrived at). A valid VLAN ID ranges from 1 to
4095.
Apply Click to apply changes.
Reset Click to undo any changes made locally and revert to previously saved values.
Cancel Return to the previous page; any changes made locally will be undone.
