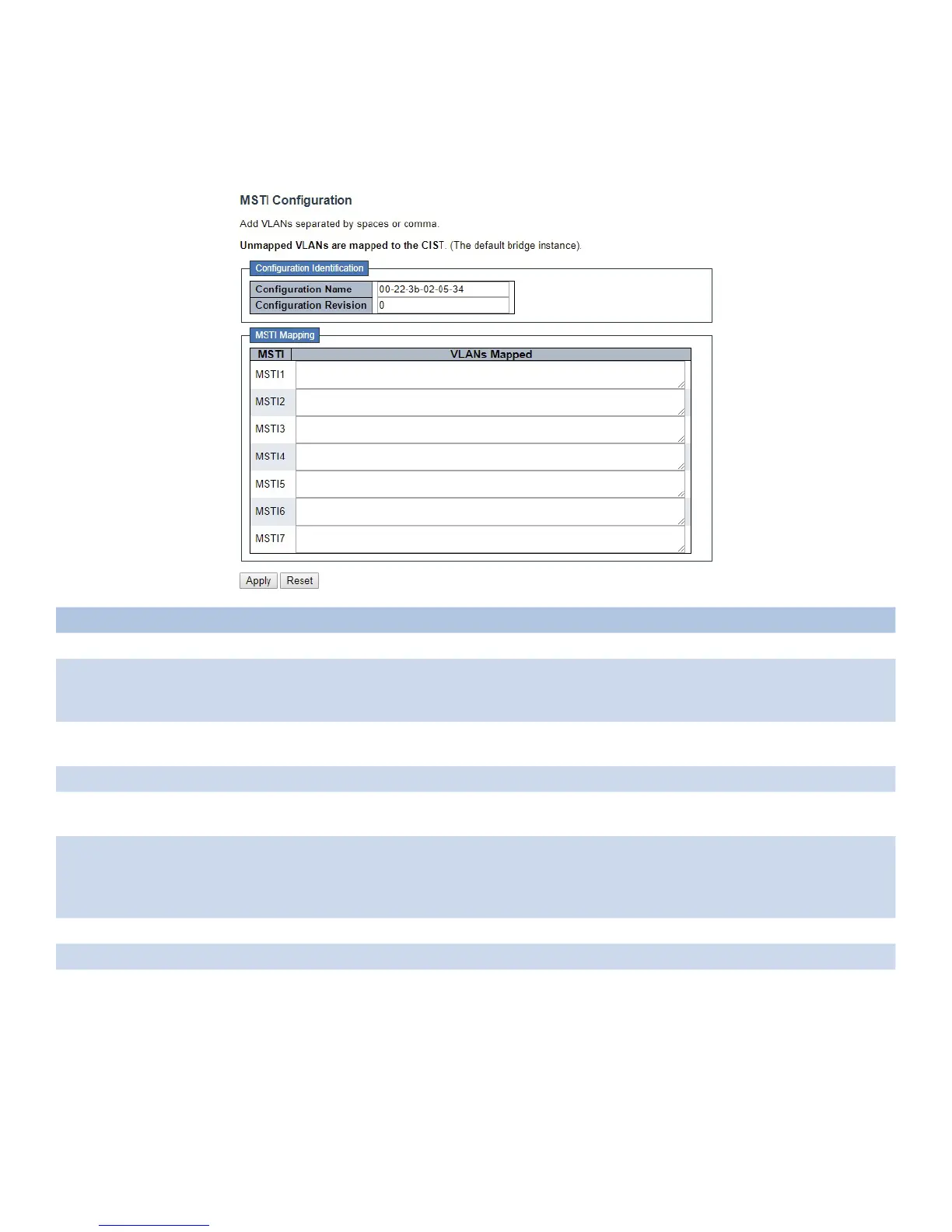

MSTI Mapping
This page allows the user to inspect the current STP MSTI bridge instance priority configurations
and possibly change them as well.
Object Description
Configuration Identification
Configuration
Name
The name identifying the VLAN to MSTI mapping. Bridges must share the name and revision
(see below), as well as the VLAN-to-MSTI mapping configuration in order to share spanning trees
for MSTI’s (Intra-region). The name is at most 32 characters.
Configuration
Revision
The revision of the MSTI configuration named above. This must be an integer between 0 and
65535.
MSTI Mapping
MSTI The bridge instance. The CIST is not available for explicit mapping, as it will receive the VLANs
not explicitly mapped.
VLANs Mapped The list of VLANs mapped to the MSTI. The VLANs can be given as a single (xx, xx being
between 1 and 4094) VLAN, or a range (xx-yy), each of which must be separated with comma
and/or space. A VLAN can only be mapped to one MSTI. An unused MSTI should just be left
empty. (I.e. not having any VLANs mapped to it.) Example: 2,5,20-40.
Apply Click to apply changes.
Reset Click to revert to previous values.
