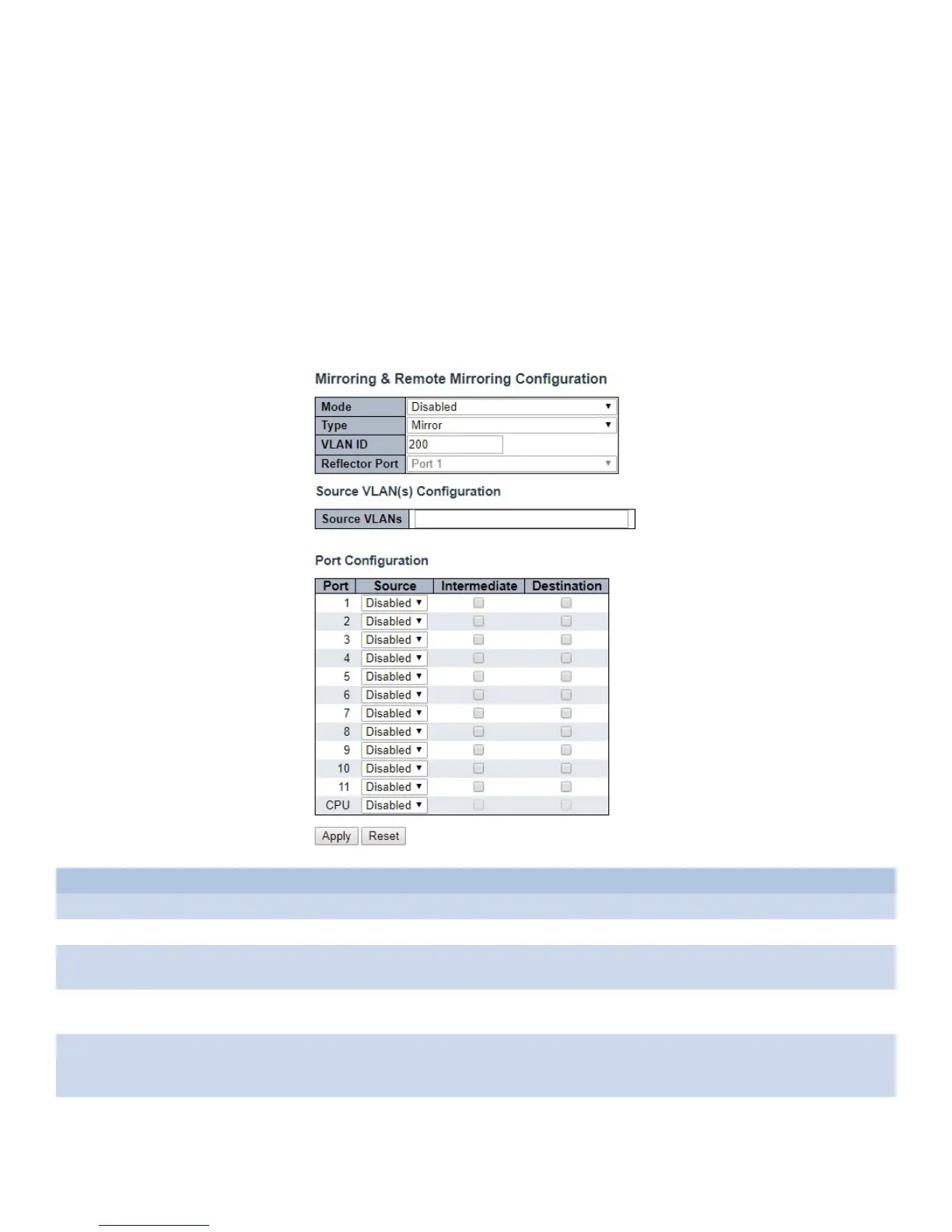

Mirroring & Remote Mirroring Configuration
Mirroring is a feature for switched port analyzer. The administrator can use the Mirroring to debug
network problems. The selected traffic can be mirrored or copied on a destination port where a
network analyzer can be attached to analyze the network traffic.
Remote Mirroring is an extend function of Mirroring. It can extend the destination port in other
switch, allowing the administrator to analyze the network traffic on the other switches.
If you want to get the tagged mirrored traffic, you have to set VLAN egress tagging as "Tag All" on
the reflector port. On the other hand, if you want to get untagged mirrored traffic, you have to set
VLAN egress tagging as "Untag ALL" on the reflector port.
Object Description
Mode Enables/Disables the mirror or Remote Mirroring function.
Type Select switch type.
Mirror The switch is running on mirror mode.
The source port(s) and destination port are located on this switch.
Source The switch is a source node for monitor flow.
The source port(s), reflector port and intermediate port(s) are located on this switch.
Intermediate The switch is a forwarding node for monitor flow and the switch is an option node.
The object is to forward traffic from source switch to destination switch.
The intermediate ports are located on this switch.
